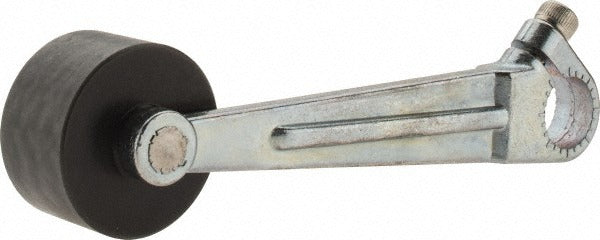

Square D 9007EA13 Roller Lever Limit Switch 7.6 Inches

Product Description

The SQUARE D 9007EA13 is a roller lever accessory designed for use with SQUARE D 9007-series limit switches. The lever arm measures 7.6 inches in overall length and features a nylon roller at the actuating tip. This component replaces or supplements the standard lever on a 9007-series limit switch, converting or restoring roller-lever actuation to the switch head. It is installed by licensed electricians and industrial maintenance technicians working on machine control, conveyor, door interlock, and position-sensing circuits where a physical actuator arm is required to trigger the switch.

This roller lever is a direct-fit replacement part for SQUARE D 9007-series limit switches used in industrial and commercial control panel applications. It is suited for machine tool, material handling, and automated equipment installations where roller-style actuation is needed to sense part position, door closure, or end-of-travel conditions. The nylon roller minimizes wear on cam surfaces during repeated cycling.

Key Features

• 7.6-inch overall arm length for extended reach actuation
• Nylon roller tip reduces cam and lever wear in high-cycle applications
• Direct-fit accessory for SQUARE D 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5 limit switch bodies
• Lightweight construction at 0.1 pounds
• Sold as a single unit replacement part

Compatibility

Designed for use with SQUARE D 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5 series limit switches.

Installation Notes

Installation is performed by qualified electricians or industrial maintenance technicians familiar with machine control wiring. De-energize and lock out the machine circuit before removing or installing any limit switch lever component in accordance with NFPA 70E lockout/tagout requirements. Confirm the lever pivot fasteners are fully seated and secure before returning the circuit to service. Do not exceed the mechanical travel limits of the switch head when positioning the lever arm.
