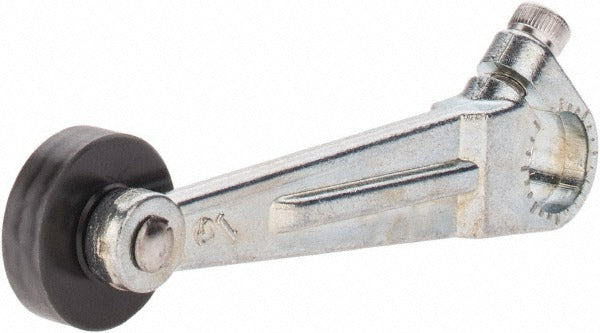

Square D 9007DA18 Limit Switch Roller Lever 7.6in Nylon

Product Description

The SQUARE D 9007DA18 is a roller lever actuator accessory designed for use with Square D 9007 series limit switches. The lever arm measures 7.6 inches in overall length and features a nylon roller tip that contacts the target object to actuate the switch mechanism. This type of actuator converts linear or rotary machine motion into a switching signal, making it a standard component in industrial machine guarding, conveyor systems, and position-detection applications. Installation is performed by licensed electricians and industrial maintenance technicians working on automated equipment and machinery.

This roller lever is suited for use in industrial and commercial automation environments where a 9007 series limit switch requires a long-reach actuator. The nylon roller reduces wear on both the lever and the target surface during repeated contact cycles. Typical applications include end-of-travel detection, door and gate position sensing, and conveyor line control. This part ships as a single unit and is sold individually.

Key Features

• 7.6-inch overall lever arm length for extended reach applications
• Nylon roller tip minimizes surface wear during repetitive actuation cycles
• Drop-in replacement actuator for compatible 9007 series limit switches
• Lightweight construction at 0.1 pounds
• Sold as a single unit with a package quantity of 1

Compatibility

Compatible with the following Square D limit switch series as stated by the manufacturer: 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation of this roller lever should be performed by a qualified electrician or industrial maintenance technician. De-energize and lock out the machine and associated control circuits before servicing any limit switch or actuator component, following OSHA lockout/tagout (LOTO) procedures. Verify lever orientation and roller engagement angle against the original actuator configuration before securing the assembly. Consult the 9007 series switch documentation for mounting torque and lever attachment specifications applicable to the specific switch model in use.
