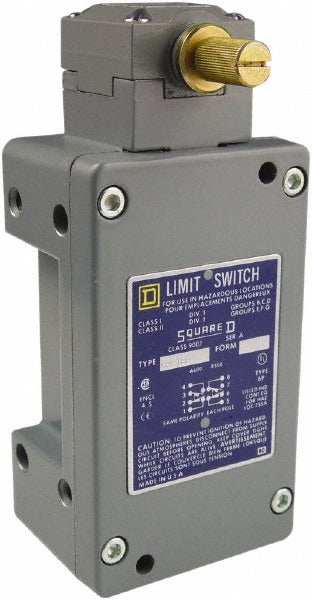

Square D 9007CR65B2 Limit Switch Spdt 2NC/2NO Rotary Head

Product Description

The SQUARE D 9007CR65B2 is a general purpose industrial limit switch designed for position detection and machine control applications. It features an SPDT contact form with a 2NC/2NO contact configuration and a rotary head actuator mounted on the side of the housing. The terminal connections are screw type. Rated for up to 600 volts, this switch carries an IP67 ingress protection rating, making it resistant to dust and temporary immersion. The body is constructed from aluminum and zinc for durability in demanding environments. It is installed by licensed electricians and industrial maintenance technicians in automated machinery, conveyor systems, and process control applications.

The 9007CR65B2 is suited for both light industrial and heavy industrial environments where reliable position or travel limit sensing is required. Its NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings allow deployment in a wide range of indoor and outdoor enclosure conditions, including wet and washdown-rated locations. The rotary head actuator provides 10 degrees of travel, making it appropriate for applications requiring precise actuation. It operates across a temperature range of -20 degrees F to 185 degrees F, supporting use in refrigerated or high-heat process areas.

Key Features

• SPDT contact form with 2NC/2NO contact configuration for flexible circuit integration
• Rotary head actuator with side mounting orientation and 10-degree travel
• 600-volt rating suitable for industrial control circuits
• IP67 ingress protection rating resists dust ingress and temporary water immersion
• NEMA 1, 2, 4, 6, 6P, 12, and 13 rated for broad environmental suitability
• Aluminum and zinc body construction for mechanical durability
• RoHS compliant and tested to multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style general purpose limit switch replacement for industrial control and automation systems requiring a side-mount rotary head SPDT limit switch rated at 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local electrical codes. De-energize all affected circuits and follow lockout/tagout procedures before mounting or wiring the switch. Screw terminals should be tightened to the fastener manufacturer or panel specifications using a calibrated torque driver. Verify enclosure ratings are appropriate for the installation environment before final mounting.
