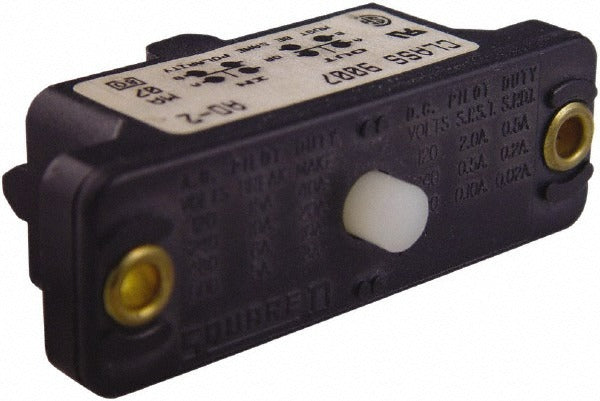

Square D 9007CO7 Limit Switch Dpdt 2NC/2NO Plunger Panel Mount

Product Description

The SQUARE D 9007CO7 is a general purpose limit switch rated for DPDT operation with a 2NC/2NO contact configuration. It features a top-mounted plunger actuator and screw terminal connections, designed for panel mount installation. Built with a zinc body, it handles voltages up to 600 volts and operates reliably across a wide temperature range of -20 degrees F to 185 degrees F. Licensed electricians and industrial maintenance technicians install this switch in control circuits where precise mechanical position sensing is required. The IEC 60529 IP20 ingress protection rating suits indoor, non-immersion environments.

The 9007CO7 is suited for residential, commercial, and light industrial control panel applications where a plunger-actuated limit switch is needed to detect physical position or end-of-travel conditions. It is commonly installed in conveyor systems, door interlock circuits, machine guarding, and similar electromechanical control applications. The screw terminal design allows straightforward field wiring during installation or replacement of an existing limit switch in a panel-mounted position.

Key Features

• DPDT contact form with 2NC/2NO configuration for versatile circuit control
• Top-mounted plunger actuator with 9.6-inch actuator length
• 600-volt rating supports a wide range of industrial control voltages
• Zinc body construction for durability in panel-mounted environments
• Screw terminals for reliable, tool-accessible field wiring
• IP20 ingress protection rating; RoHS compliant and IEC 60529 listed

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for panel-mounted control circuits requiring a DPDT plunger-actuated switch at up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before removing or installing the switch. Secure all screw terminals to the manufacturer-specified engagement before restoring power. The IP20 rating means this switch is not suitable for environments with liquid exposure or heavy particulate contamination.
