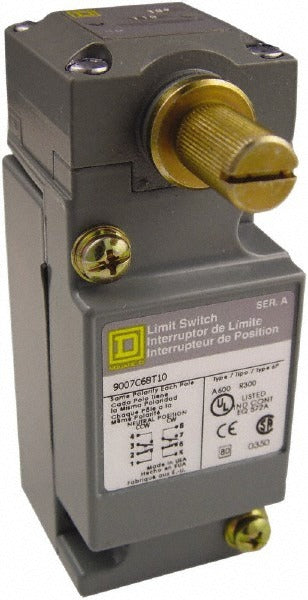

Square D 9007C68T10 Limit Switch Dpdt Nc Rotary Head IP66

Product Description

The SQUARE D 9007C68T10 is a general purpose limit switch designed for industrial and commercial control applications requiring reliable position sensing. Built with a metal body and a rotary head actuator mounted on the side of the housing, this switch provides a double-pole, double-throw (DPDT) contact form in a normally closed (NC) configuration. Terminal connections are screw-type, and the conduit entry is a 1/2 in-14 NPT fitting. The IP66 ingress protection rating keeps the internals sealed against dust and high-pressure water jets, making it suitable for demanding environments. Licensed electricians and industrial control technicians are the primary installers.

This limit switch is suited for use in manufacturing machinery, conveyor systems, automated equipment, and other applications where mechanical position detection triggers a control circuit. The DPDT contact configuration allows it to switch two independent circuits simultaneously. The operating temperature range of -20 degrees F to 185 degrees F makes it appropriate for both indoor and outdoor installations in moderate to harsh conditions. NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 cover a wide range of environmental enclosure requirements.

Key Features

• DPDT normally closed contact form for simultaneous dual-circuit switching
• Rotary head actuator with side-mount location for versatile mechanical actuation
• IP66 ingress protection rating with NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings
• Metal body construction for durability in industrial environments
• 1/2 in-14 NPT conduit entry with screw-type terminals
• Wide operating temperature range from -20 degrees F to 185 degrees F
• UL Listed, CSA Certified, CE marked, and RoHS Compliant

Compatibility

Designed as an OEM-style general purpose limit switch for use in industrial control panels, machinery, and automated equipment requiring position detection with a DPDT contact arrangement and rotary head actuation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and any applicable local codes. De-energize and lock out the control circuit before wiring or replacing the switch. Screw terminals should be tightened to the terminal manufacturer specification using an appropriate insulated screwdriver. Verify the conduit connection at the 1/2 in-14 NPT entry is properly sealed to maintain the IP66 rating.
