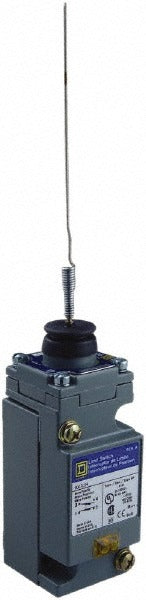

Square D 9007C62L Limit Switch Dpdt 2NC/2NO Cat Whisker

Product Description

The SQUARE D 9007C62L is a general purpose limit switch designed to detect the position or movement of machine components in industrial and commercial control applications. It uses a cat whisker actuator that responds to light contact from moving parts, triggering the DPDT contact block to signal a control circuit. The switch body is constructed of zinc and carries an IP67 ingress protection rating, making it suitable for environments where dust and water exposure are a concern. Rated to 600 volts, the 9007C62L is a direct fit for machine builders, maintenance electricians, and automation technicians working on conveyor, packaging, and material handling equipment.

This limit switch is used in industrial machinery where precise, low-force position sensing is required. The cat whisker actuator is well suited for detecting lightweight or delicate objects and for installations where the contact must be made with minimal mechanical resistance. It handles an operating temperature range of -20 degrees F to 185 degrees F, covering most indoor plant environments and some outdoor enclosure installations. Electricians and controls technicians typically install this switch in panel-mounted or machine-frame applications requiring NEMA-rated environmental protection.

Key Features

• DPDT contact configuration with 2NC/2NO contacts for flexible circuit wiring
• Cat whisker actuator with 20-degree travel for sensitive position detection
• IP67 ingress protection rating resists dust and temporary water immersion
• Zinc body construction for durable, corrosion-resistant performance
• Screw terminal connections for secure, field-serviceable wiring
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental coverage
• RoHS compliant and tested to multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style replacement or new installation general purpose limit switch for industrial control systems requiring a DPDT, 2NC/2NO contact block with cat whisker actuation and screw terminal connections.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with NEC requirements and applicable local codes. De-energize the control circuit and lock out the machine before mounting or wiring the switch. Screw terminals should be torqued to the fastener manufacturer's specification using appropriate hand tools. Verify the actuator travel path is clear and that the cat whisker makes consistent, repeatable contact with the target surface during machine operation.
