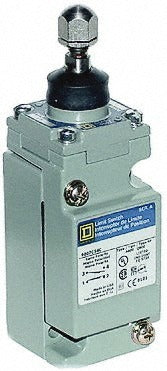

Square D 9007C62ED Limit Switch Dpdt 2NC/2NO Plunger

Product Description

The SQUARE D 9007C62ED is a general purpose limit switch designed for industrial position-sensing and control applications. It features a DPDT contact form with a 2NC/2NO configuration and a top-mounted plunger actuator, making it well suited for detecting end-of-travel positions on machinery, conveyor systems, and automated equipment. The switch is rated for up to 600 volts and carries an IP67 ingress protection rating, meaning it is protected against dust and temporary immersion. The zinc body construction provides durability in demanding environments. Screw terminals simplify field wiring. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This limit switch is appropriate for both light industrial and heavy-duty applications where reliable position feedback is required. Its NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 cover a wide range of indoor and outdoor environments including oily, dusty, and washdown conditions. The operating temperature range of -20 degrees F to 185 degrees F makes it suitable for cold storage, manufacturing floors, and outdoor control enclosures. The plunger actuator style is commonly used where linear mechanical contact with a moving machine element is required.

Key Features

• DPDT contact form with 2NC/2NO configuration for flexible control circuit wiring
• Top-mounted plunger actuator, 5.2 inches in length, for direct linear actuation
• 600-volt rating supports a wide range of industrial control voltage applications
• IP67 ingress protection rating guards against dust ingress and temporary water immersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for versatile environmental suitability
• RoHS compliant; meets multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for general purpose industrial position-sensing control circuits requiring a DPDT plunger-style actuator at up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize all circuits and lock out the equipment before mounting the switch or making wiring connections at the screw terminals. Verify actuator alignment with the mechanical trip point before restoring power. Do not exceed the rated voltage or operating temperature limits specified for this device.
