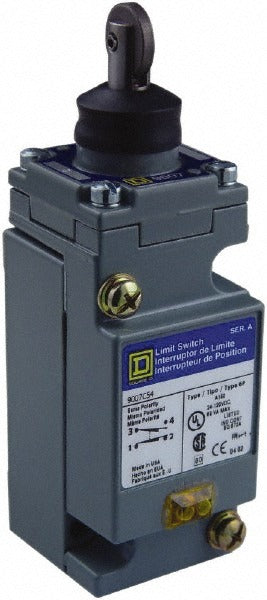

Square D 9007C62D Limit Switch Dpdt 2NC/2NO Roller Plunger 600V

Product Description

The SQUARE D 9007C62D is a general purpose limit switch designed to detect position and movement in industrial and commercial machinery. It uses a side-mounted roller plunger actuator to convert mechanical motion into an electrical signal, interrupting or completing a circuit at a defined trigger point. The contact configuration is DPDT with 2NC/2NO arrangement, rated for up to 600 volts. The zinc body and IP67 ingress protection rating make it suitable for environments where moisture, dust, and particulate exposure are a concern. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The 9007C62D is used in factory automation, conveyor systems, machine tool control, and process equipment where reliable position sensing is required. The side-mounted roller plunger actuator suits applications where the actuating force approaches from the side rather than the top. The screw terminal connection supports standard field wiring practices. NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 allow deployment across a wide range of enclosure environments, from general indoor use to submersible-rated installations.

Key Features

• DPDT contact form with 2NC/2NO configuration for flexible circuit switching
• 600-volt rating supports industrial control voltage levels
• IP67 ingress protection rating — sealed against dust and temporary immersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for broad environmental compatibility
• Side-mounted roller plunger actuator with 5.2-inch actuator length
• Zinc body construction for durability in demanding service conditions
• RoHS compliant and tested to IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 61140

Compatibility

Designed as an OEM-style replacement general purpose limit switch for industrial machinery control circuits requiring a side-mounted roller plunger actuator with DPDT contact configuration and screw terminal termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before mounting or wiring the switch. Screw terminals should be tightened to the fastener manufacturer's specification using a calibrated torque driver — do not over-tighten, as this can damage the terminal block. Verify actuator alignment with the mechanical trip point before returning the machine to service.
