Square D 9007C62A2 Limit Switch Dpdt 2NC/2NO Rotary Head

Product Description

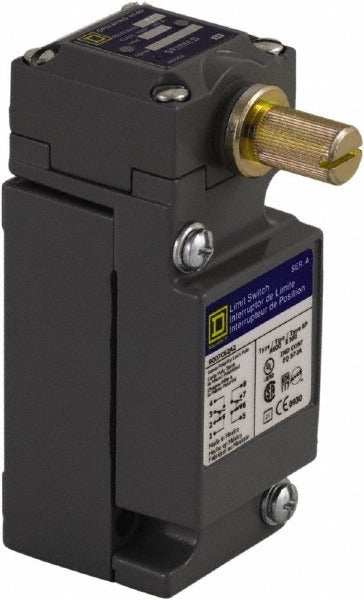

The SQUARE D 9007C62A2 is a general purpose limit switch designed for industrial and commercial control applications where reliable position sensing is required. It features a rotary head actuator mounted on the side of the metal body, a DPDT contact form with a 2NC/2NO contact configuration, and screw terminal connections. The conduit entry is a 1/2 inch-14 NPT fitting. Rated IP66 and NEMA 1, 2, 4, 6, 6P, 12, and 13, this switch handles wet, dusty, and wash-down environments. Electricians and industrial controls technicians install this switch in machine tool, conveyor, and automated equipment panels.

The 9007C62A2 is suited for use on automated machinery, assembly lines, conveyor systems, and other industrial equipment where end-of-travel or position detection is needed. Its side-mounted rotary actuator allows the switch to be tripped by cams, levers, or moving machine components. The operating temperature range of -20 degrees F to 185 degrees F makes it viable in both cold storage and elevated-temperature production environments. This switch is appropriate for both OEM machine builds and field replacement installations.

Key Features

• DPDT contact form with 2NC/2NO configuration for flexible control circuit wiring
• Side-mounted rotary head actuator for cam-driven or lever-driven actuation
• Metal body construction rated for demanding industrial environments
• IP66 ingress protection rating resists dust and powerful water jets
• NEMA 1, 2, 4, 6, 6P, 12, and 13 enclosure ratings in a single switch
• Screw terminal connections with 1/2 inch-14 NPT conduit entry
• Compliant with UL 508, CSA C22.2 No. 14, CE, IEC 60529, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for industrial control panels and automated machinery requiring DPDT, 2NC/2NO rotary-head position sensing with side actuation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the machine control circuit before mounting the switch or making terminal connections. Ensure the conduit fitting is properly sealed to maintain the IP66 ingress protection rating. Verify actuator alignment with the cam or lever before restoring power to avoid premature actuator wear or missed switching events.
