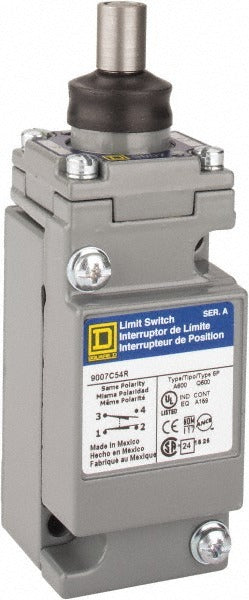

Square D 9007C54R Limit Switch Spdt Nc Plunger 600V

Product Description

The SQUARE D 9007C54R is a general purpose limit switch designed for industrial position sensing and control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, a top-mounted plunger actuator, and screw terminal connections. Rated for up to 600 volts, the 9007C54R is built with a zinc die-cast body and carries an IP67 ingress protection rating, making it suitable for environments where dust intrusion and temporary water immersion are concerns. Licensed electricians and industrial controls technicians are the primary installers of this type of device.

The 9007C54R is suited for use in a wide range of industrial and commercial machine control applications, including conveyor systems, presses, packaging equipment, and automated assembly lines where precise position or travel limit detection is required. Its NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13 cover indoor, outdoor, and washdown-rated enclosure environments. The top-mounted plunger actuator allows for direct linear actuation from machinery components traveling in a vertical or axial path.

Key Features

• SPDT contact form with normally closed configuration for reliable position detection
• Top-mounted plunger actuator with 5.2-inch actuator length for direct linear actuation
• IP67 ingress protection rating resists dust and temporary water immersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 cover a broad range of environmental enclosures
• Zinc die-cast body for durable industrial service
• Compliant with multiple IEC standards including IEC 60529 and RoHS requirements

Compatibility

Designed as an OEM-style general purpose limit switch for industrial machine control applications requiring a top-mounted plunger actuator, SPDT NC contact configuration, and 600-volt rating.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the machine manufacturer's wiring diagrams. De-energize all circuits and lock out or tag out the equipment before mounting or wiring the switch. Secure the switch body firmly to the mounting surface so the plunger actuator aligns squarely with the actuating cam or dog to prevent side-loading. Verify the contact configuration against the control circuit requirements before applying power.
