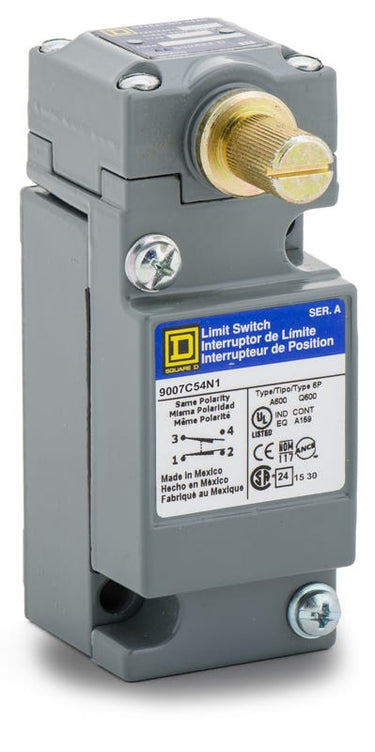

Square D 9007C54N1 Rotary Lever Arm Plug-In Heavy Duty Limit Switch

Product Description

The Square D 9007C54N1 is a rotary lever arm plug-in heavy duty limit switch designed for use in various applications where reliability is crucial. Operating at 600 VAC and rated for 10 amps, it features one normally open and one normally closed contact configuration, ensuring safe and efficient operation. The switch supports a conduit entry of 0.5 inches and operates in temperatures ranging from -20 degrees Fahrenheit to 185 degrees Fahrenheit, making it suitable for diverse environments.

• Voltage rating: 600 VAC
• Amperage rating: 10 Amps
• Operating temperature range: -20F to 185F

Product Highlights

This limit switch is UL listed, CSA certified, and CE marked, providing assurance of its safety and quality standards.

Product Information

Standard Information

• Brand: Square D
• Type: C series

Technical Specifications

• MPN: 9007C54N1
• Actuator: Lever Arm (ordered separately) CCW
• Contact Configuration: 1 NO/1 NC Form Z - SPDT-DB
• Voltage: 600 Volt
• Amperage: 10 Amp
• TC Connection: 0.5 Inch NPT Conduit Entrance (screw clamp terminals)
• Contact Rating: NEMA A600/Q600
• Applications: Heavy Duty
• Operating Temperature: -20F to 185F
