Square D 9007C54L Limit Switch Spdt Nc Cat Whisker

Product Description

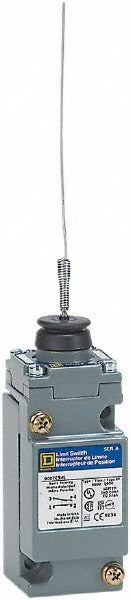

The SQUARE D 9007C54L is a general purpose limit switch designed to detect mechanical position and motion in industrial control systems. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a cat whisker actuator positioned at the top of the metal body. The screw terminal connection and 1/2 inch-14 NPT conduit entry make field wiring straightforward for licensed electricians and industrial maintenance technicians. With an IP66 ingress protection rating and NEMA ratings covering Types 1, 2, 4, 6, 6P, 12, and 13, this switch is built to handle wet, dusty, and wash-down environments without compromising contact integrity.

This limit switch is suited for use in conveyor systems, machine tool applications, packaging equipment, and other industrial automation installations where precise mechanical position sensing is required. Its operating temperature range of -20 degrees F to 185 degrees F supports both indoor and outdoor industrial environments. Electricians and automation technicians typically install this switch as part of a machine safeguarding or process control circuit in both light and heavy industrial settings.

Key Features

• SPDT contact form with normally closed (NC) configuration for reliable position detection
• Cat whisker actuator mounted at the top for flexible mechanical triggering
• Metal body construction for durability in harsh industrial environments
• IP66 ingress protection rating resists dust and powerful water jets
• NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings for broad environmental suitability
• 1/2 inch-14 NPT conduit connection with screw terminals for standard field wiring
• Wide operating temperature range from -20 degrees F to 185 degrees F

Compatibility

Designed as an OEM-style general purpose limit switch for industrial control panel and machine automation applications requiring a SPDT NC cat whisker actuator with top mounting and NPT conduit entry.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and lock out and tag out the equipment before mounting the switch or making wiring connections. Ensure the conduit fitting is properly sealed to maintain the IP66 and NEMA ingress protection ratings. Do not exceed the switch's rated operating temperature range or apply actuator forces beyond the mechanical design limits of the cat whisker.
