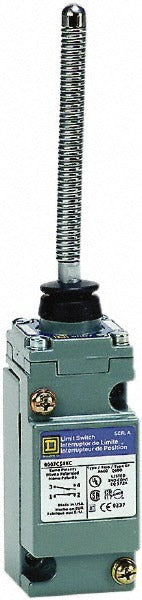

Square D 9007C54KC Limit Switch Spdt Nc Cat Whisker 600V

Product Description

The SQUARE D 9007C54KC is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, rated at 600 volts. The actuator is a cat whisker style, suited for detecting light contact and low-force actuation. The body is constructed from zinc for durability in demanding environments. Screw terminals provide secure wiring connections. This switch is rated IP67 for dust-tight and temporary submersion protection, and carries NEMA ratings of 1, 2, 4, 6, 6P, 12, and 13. Licensed electricians and industrial maintenance technicians are the primary installers.

The 9007C54KC fits residential and commercial machine tool, conveyor, and automated equipment applications where accurate position detection is required. The cat whisker actuator is well suited for light-duty sensing tasks where minimal actuation force is needed. The wide operating temperature range of -20 degrees F to 185 degrees F makes it appropriate for both indoor and outdoor industrial environments. Screw terminal wiring allows straightforward field installation without specialty tooling.

Key Features

• SPDT contact form with normally closed (NC) configuration for standard position-sensing circuits
• 600-volt rating supports a broad range of industrial control circuit voltages
• Cat whisker actuator provides low-force, sensitive actuation for light contact detection
• IP67 ingress protection rating — dust-tight and rated for temporary submersion
• NEMA ratings 1, 2, 4, 6, 6P, 12, and 13 for versatile environment suitability
• Zinc body construction for mechanical durability in industrial settings
• RoHS compliant and tested to multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for industrial machine control, conveyor, and position-sensing applications requiring an SPDT NC cat whisker actuator rated at 600 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before wiring or mounting the switch. Screw terminals should be tightened to the fastener manufacturer specification using an appropriate hand tool — do not overtighten. Verify that the mounting orientation and actuator travel path are aligned with the target object before returning the circuit to service.
