Square D 9007C54J Limit Switch Spdt Nc Wobble Stick

Product Description

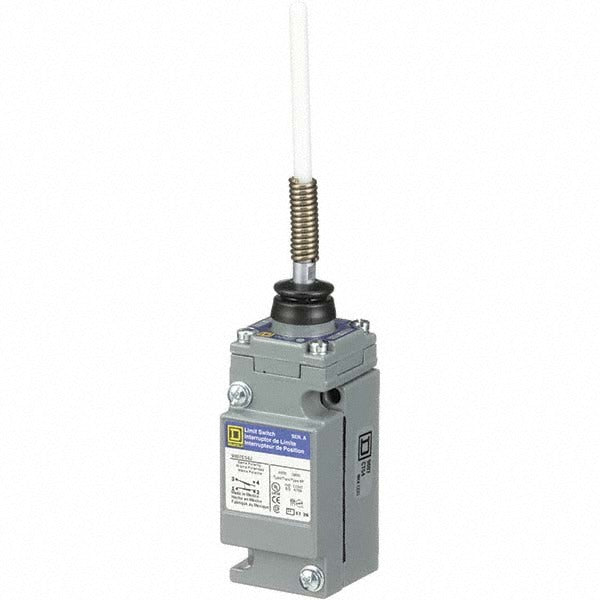

The SQUARE D 9007C54J is a general purpose limit switch designed for position sensing and machine control applications in industrial and commercial environments. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a wobble stick actuator mounted at the top of the unit. The metal body construction and IP66 ingress protection rating make it suitable for demanding environments where moisture, dust, and debris are present. Screw terminals provide a reliable wiring connection through a 1/2 inch-14 NPT conduit entry. Licensed electricians and industrial controls technicians are the primary installers.

The 9007C54J is suited for use in manufacturing machinery, conveyor systems, material handling equipment, and automated process control panels. The wobble stick actuator responds to contact from multiple directions, making it a practical choice for object detection, end-of-travel sensing, and door or guard interlocking in both light industrial and heavy-duty machine tool environments. Its NEMA 1, 2, 4, 6, 6P, 12, and 13 ratings cover a wide range of indoor and select outdoor installation conditions.

Key Features

• SPDT contact form with NC configuration for standard limit switch wiring schemes
• Wobble stick actuator mounted at the top for omnidirectional actuation response
• IP66-rated metal body withstands dust ingress and direct water jets
• 1/2 inch-14 NPT conduit connection with screw terminal wiring
• Operating temperature range of -20 degrees F to 185 degrees F
• Meets UL 508, CSA C22.2 No. 14, CE, IEC 60529, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for general purpose industrial machine control applications requiring a top-mount wobble stick actuator with SPDT NC contacts and NPT conduit entry.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the control circuit before mounting or wiring the switch. The 1/2 inch-14 NPT conduit entry should be sealed with a listed fitting appropriate for the NEMA rating required by the application. Verify actuator alignment and travel before returning the machine to service.
