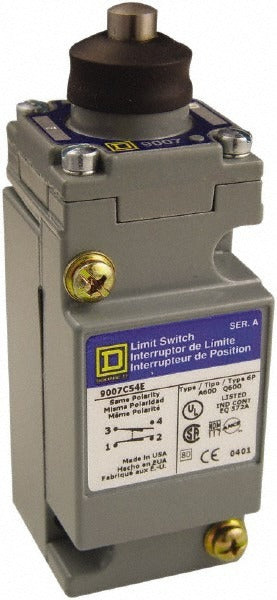

Square D 9007C54E Limit Switch Spdt Nc Plunger Top

Product Description

The SQUARE D 9007C54E is a general purpose limit switch designed for industrial position sensing and machine control applications. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a top-mounted plunger actuator. The metal body construction and IP66 ingress protection rating make it suitable for demanding environments where moisture, dust, and mechanical abuse are concerns. Connections are made via screw terminals with a 1/2 inch-14 NPT conduit entry. Operating temperature range spans -20 degrees F to 185 degrees F. Licensed electricians and industrial maintenance technicians are the primary installers.

The 9007C54E fits residential and commercial machine tool, conveyor, and automated equipment installations where mechanical position feedback is required. The top-mounted plunger actuator is well suited for applications where a cam or actuating dog contacts the switch from above. NEMA enclosure ratings of 1, 2, 4, 6, 6P, 12, and 13 cover a wide range of indoor and outdoor industrial environments. It is built to the dimensional and connection standards expected in standard control panel and machine wiring layouts.

Key Features

• SPDT contact form with NC configuration for fail-safe position detection
• Top-mounted plunger actuator for cam-driven or overhead actuation
• IP66 and NEMA 1, 2, 4, 6, 6P, 12, 13 rated metal body for harsh environments
• Screw terminal connections with 1/2 inch-14 NPT conduit entry
• Wide operating temperature range: -20 degrees F to 185 degrees F
• Meets UL 508, CSA C22.2 No. 14, CE, IEC 60529, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for general purpose industrial control systems requiring a top-plunger SPDT limit switch with 1/2 inch NPT conduit entry.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the machine or control circuit before mounting or wiring the switch. Screw terminals must be tightened securely to prevent loose connections under vibration. Conduit fittings should be properly sealed to maintain the IP66 and NEMA ingress protection ratings.
