Square D 9007C54B Limit Switch Spdt Nc Rotary Head 600V

Product Description

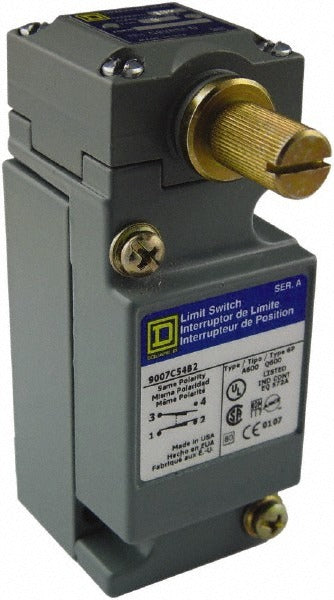

The SQUARE D 9007C54B is a general purpose limit switch designed to detect the position or movement of machine components and signal a control circuit to start, stop, or reverse motion. Built with a zinc die-cast body, it provides a durable enclosure suited for industrial and commercial machinery environments. The switch uses a rotary head actuator with a screw terminal connection, a single-pole double-throw (SPDT) contact form, and a normally closed (NC) contact configuration. Rated at 600 volts, the 9007C54B meets CE, CSA, and UL standards. Installation is handled by licensed electricians or qualified industrial maintenance technicians.

The 9007C54B is used in industrial machinery, conveyor systems, material handling equipment, and automated production lines where mechanical position sensing is required. The rotary head style is well suited for applications where the actuating cam or dog contacts the lever at variable angles. The screw terminal connection simplifies field wiring during installation or replacement. This switch is appropriate for both new installations and direct replacement of worn or failed limit switches in existing control panel or machine wiring.

Key Features

• Rotary head actuator accommodates variable-angle cam contact for flexible machine mounting
• SPDT contact form with normally closed configuration provides fail-safe position signaling
• 600-volt rating supports use in a wide range of industrial control circuits
• Zinc die-cast body offers durable construction in demanding environments
• Screw terminal wiring simplifies field installation and replacement
• CE, CSA Certified, and UL Listed for compliance with North American and international standards

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for industrial control and automation systems requiring an SPDT, NC, rotary head configuration rated at 600 volts.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with applicable NEC requirements and local codes. De-energize and lock out the machine control circuit before removing or installing the limit switch. Verify that the actuator rotary head aligns correctly with the machine cam or dog before securing the switch body. Confirm terminal connections are tight and that conductor sizing matches the circuit load requirements before restoring power.
