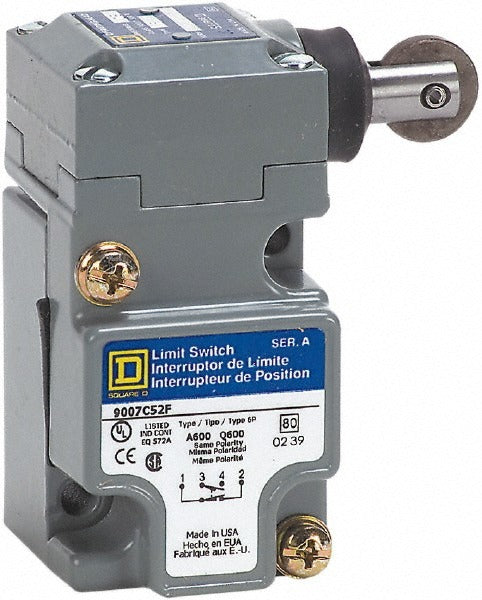

Square D 9007C52F Limit Switch Spdt Nc Roller Plunger 600V

Product Description

The SQUARE D 9007C52F is a general purpose limit switch designed for industrial position-sensing and control applications. It uses a roller plunger actuator mounted at the top of the switch body and operates with a single-pole double-throw (SPDT) contact form in a normally closed (NC) configuration. The switch body is zinc construction, rated to 600 volts, and carries an IP67 ingress protection rating, making it suitable for wet, dusty, and wash-down environments. Electrical connection is made via screw terminals. Licensed electricians and industrial controls technicians are the primary installers of this device.

The 9007C52F is suited for use in industrial machinery, conveyor systems, automated assembly equipment, and process control panels where precise mechanical position detection is required. The top-mounted roller plunger actuator is commonly used where a moving machine component trips the switch from directly above or along a linear path. This switch covers residential and light commercial panel environments as well as heavy industrial applications given its NEMA and IEC ratings.

Key Features

• SPDT contact form with normally closed (NC) configuration for fail-safe position sensing
• Top-mounted roller plunger actuator for linear or cam-driven mechanical actuation
• Zinc body construction for durability in demanding environments
• IP67 ingress protection rating guards against dust ingress and temporary immersion
• Rated to 600 volts for compatibility with a wide range of industrial control circuits
• Screw terminal connections for secure, tool-made wiring
• RoHS compliant and certified to multiple IEC standards including IEC 60529 and IEC 61140

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial control and position-sensing applications where a top-mounted roller plunger SPDT device rated at 600V with IP67 protection is specified.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial controls technician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the machine or panel circuit before wiring or mounting the switch. Verify actuator alignment with the tripping mechanism before final fastening to ensure repeatable actuation. Screw terminals should be torqued per the terminal manufacturer specification printed on the device or its accompanying documentation.
