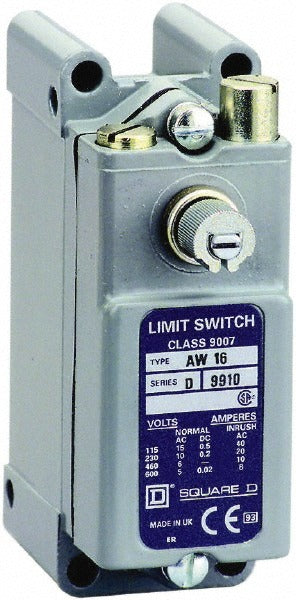

Square D 9007AW16 Limit Switch Spdt Nc Rotary Head 600V

Product Description

The SQUARE D 9007AW16 is a general purpose limit switch designed for position sensing and mechanical control applications in industrial and commercial electrical systems. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration and a rotary head actuator mounted on the side of the body. Rated for 600 volts AC, this switch is built with a zinc body and connects via screw terminals. Licensed electricians and industrial maintenance technicians are the primary installers. The IP65 ingress protection rating and NEMA ratings of 1, 2, 4, 12, and 13 make it suitable for environments where dust and water exposure are concerns.

The 9007AW16 is used in industrial machinery, conveyor systems, and automated equipment where precise mechanical position detection is required. It is surface mounted on the side of the application, making it straightforward to integrate into existing panel or machine enclosures. The operating temperature range of -65 degrees F to 185 degrees F allows deployment in cold storage environments as well as warm industrial settings. This switch is appropriate for both new installations and direct replacement of worn or failed limit switches in comparable control circuits.

Key Features

• SPDT contact form with normally closed (NC) configuration for reliable circuit interruption on actuation
• Rotary head actuator with side-mount location and 1.44-inch actuator length
• 600V AC rating for compatibility with standard industrial control voltages
• IP65 ingress protection and NEMA 1, 2, 4, 12, 13 ratings for dust-tight and water-resistant installations
• Zinc body construction for durability in demanding environments
• 5-degree travel arc for precise mechanical actuation
• RoHS compliant and tested to IEC 60529 standards

Compatibility

Designed as an OEM-style replacement or new installation limit switch for general purpose industrial control systems requiring a 600V AC SPDT NC rotary head side-mount switch with surface mounting.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the circuit before mounting or wiring the switch. Screw terminals require a standard flat or Phillips screwdriver; do not overtighten terminal screws. Verify the actuator travel and mounting orientation align with the mechanical trigger point before finalizing installation.
