Square D 9007AW12 Limit Switch Spdt Nc Rotary Head 600V

Product Description

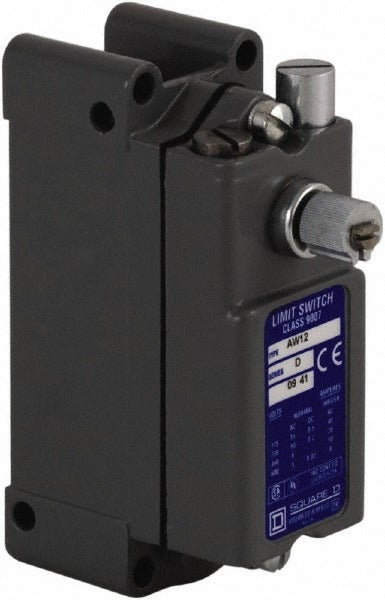

The SQUARE D 9007AW12 is a general purpose limit switch rated for 600 volts AC and configured as a single-pole double-throw (SPDT), normally closed (NC) contact. The rotary head actuator is positioned on the side of the zinc-body enclosure and mounts to a surface via screw terminals. Built to IP65 ingress protection and carrying NEMA ratings of 1, 2, 4, 12, and 13, this switch is designed to handle demanding industrial and commercial environments where contamination and moisture resistance are required. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The 9007AW12 is suited for use in machine tool, conveyor, material handling, and general industrial automation applications where position sensing or travel limiting is required. The side-mounted rotary head provides 5 degrees of travel, making it appropriate for installations with limited actuation arc. Surface mount configuration simplifies integration into control panels, machinery frames, and equipment enclosures. The screw terminal connection supports standard field wiring practices.

Key Features

• SPDT normally closed (NC) contact configuration for reliable position detection
• Rotary head actuator mounted on the side, 1.44 inches actuator length, 5 degrees of travel
• Rated to 600 volts AC for compatibility with standard industrial control circuits
• IP65 ingress protection and NEMA 1, 2, 4, 12, and 13 ratings for contamination and moisture resistance
• Zinc body construction for durability in industrial environments
• Operating temperature range of -65 degrees F to 185 degrees F
• RoHS compliant and meets IEC 60529 standards

Compatibility

Designed as an OEM-style replacement for general purpose industrial limit switch applications requiring a side-mounted rotary head, SPDT NC contact form, and surface mount installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before wiring the screw terminals or mounting the switch. Verify actuator alignment and travel clearance before returning the circuit to service. Do not exceed the rated voltage or operating temperature limits stated on the device.
