Square D 9007AO16 Limit Switch Spdt Nc Rotary Head 600V

Product Description

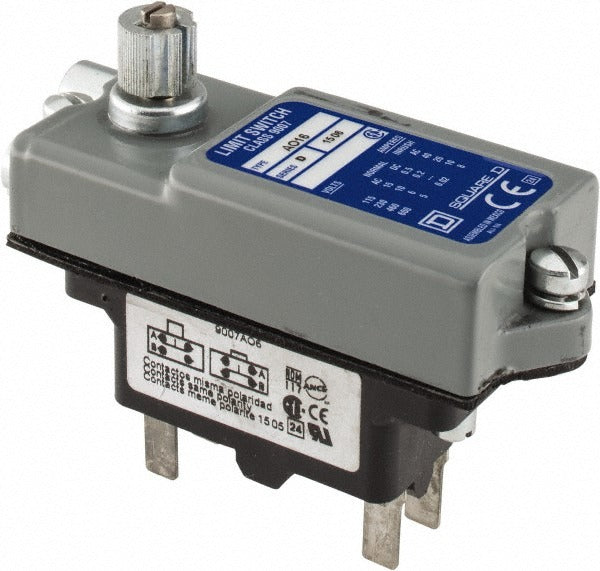

The SQUARE D 9007AO16 is a general purpose limit switch designed for industrial and commercial control applications where precise mechanical position detection is required. It features a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, rated for up to 600 volts AC. The rotary head actuator is mounted on the side of the zinc die-cast body, actuating through a 5-degree travel arc. Side screw terminals provide secure wiring connections. Licensed electricians and industrial maintenance technicians are the primary installers of this device in machine tool, conveyor, and automated equipment control circuits.

The 9007AO16 is suited for residential, light commercial, and industrial machine control panels where a compact, side-actuated rotary limit switch is needed. It fits applications such as conveyor end-of-travel detection, door position sensing, and equipment interlock circuits. The IP20 ingress protection rating makes it appropriate for dry, indoor environments. NEMA 1 rating further confirms suitability for general indoor use without exposure to liquids, dust, or corrosive atmospheres.

Key Features

• SPDT normally closed contact configuration for fail-safe circuit design
• Rotary head actuator with 5-degree travel for precise position detection
• 600V AC voltage rating suitable for standard industrial control voltages
• Zinc die-cast body for durable, rigid enclosure construction
• Side screw terminals for straightforward wiring and field serviceability
• RoHS compliant and IEC 60529 rated for use in regulated environments

Compatibility

Designed as an OEM-style replacement or direct-install general purpose limit switch for industrial control systems requiring a SPDT rotary head side-actuated switch with screw terminal connections.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out all power to the control circuit before mounting or wiring the switch. Verify actuator alignment and travel clearance before securing the switch body to avoid mechanical binding. Do not exceed the rated voltage or operating temperature range during service.
