Square D 9007AO12 Limit Switch Spdt Nc Rotary Head 600V

Product Description

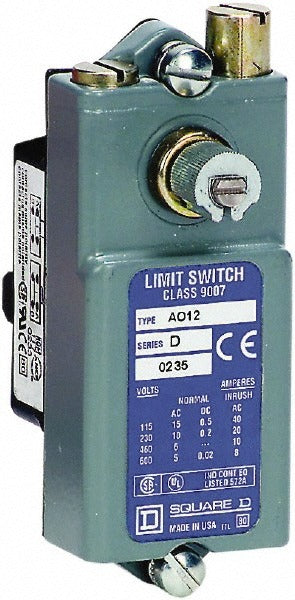

The SQUARE D 9007AO12 is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a single-pole double-throw (SPDT) contact form in a normally closed (NC) configuration, rated for up to 600 volts AC. The rotary head actuator mounts from the side and provides 5 degrees of travel, making it well suited for detecting precise mechanical movement or end-of-travel positions. The switch body is zinc construction with screw terminal connections. It carries an IP20 ingress protection rating and meets IEC 60529 and RoHS compliance standards. Licensed electricians and industrial maintenance technicians are the primary installers.

The 9007AO12 is used in residential and commercial machine control panels, conveyor systems, automated equipment, and material handling machinery where reliable position detection is required. The side-mounted rotary actuator suits applications where the actuating cam or lever approaches from the side of the switch body. The screw terminal design supports straightforward field wiring in panel and enclosure installations. The operating temperature range of 0 degrees F to 185 degrees F covers most indoor industrial environments.

Key Features

• SPDT contact form with normally closed (NC) configuration for fail-safe circuit designs
• 600V AC voltage rating for use in standard industrial control circuits
• Side-mounted rotary head actuator with 5 degrees of operating travel
• Zinc body construction for durability in industrial environments
• Screw terminal connections for reliable field wiring
• IP20 ingress protection rating; meets IEC 60529 and RoHS compliance standards

Compatibility

Designed as an OEM-style replacement or direct-fit general purpose limit switch for industrial control and machine automation systems requiring a 600V AC, SPDT, side rotary head configuration with screw terminals.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with applicable NEC requirements. De-energize and lock out the circuit before mounting or wiring the switch. Secure the switch body firmly so the actuator aligns correctly with the operating cam or lever to ensure consistent actuation within the 5-degree travel range. Verify that wire gauge and terminal torque conform to the panel manufacturer specifications before restoring power.
