Square D 9007AO104 Basic Snap Switch Spdt-db 5A 600V

Product Description

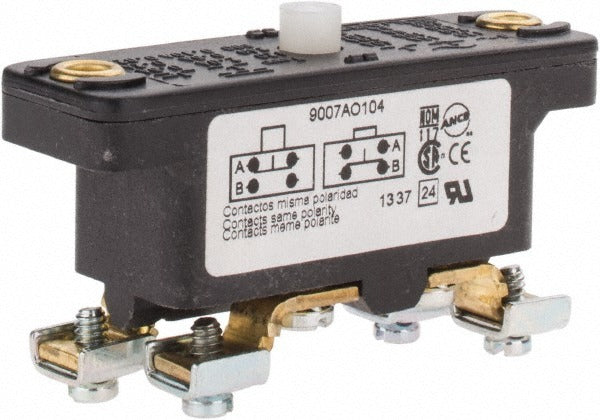

The SQUARE D 9007AO104 is a general-purpose basic snap switch rated for 5 amps at 600 VAC and 0.25 amps at 125 VDC. It features an SPDT-DB contact form with silver-plated contacts and screw terminal connections. The actuator operates on a snap-action mechanism with a maximum operating force of 0.69 pounds and a minimum release force of 0.44 pounds. The switch measures 2.5 inches high, 1.03 inches wide, and 0.83 inches long, and is rated for operating temperatures from -20 degrees F to 185 degrees F. Electricians and industrial control technicians install this switch in control panels, machinery, and automated systems where reliable limit or position sensing is required.

This snap switch is suited for general-purpose control applications in both light industrial and commercial settings. It is used in limit switch assemblies, machine tool controls, conveyor systems, and similar electromechanical applications where a compact, snap-action contact block is needed. Its screw terminal design allows for straightforward field wiring and replacement. The NEMA 1 and IEC 60529 ratings indicate suitability for standard indoor environments without significant moisture or dust exposure.

Key Features

• SPDT-DB contact form with silver-plated contacts for reliable switching
• Rated 5 amps at 600 VAC and 0.25 amps at 125 VDC
• Screw terminal connection for field wiring
• Maximum operating force of 0.69 pounds with a minimum release force of 0.44 pounds
• Operating temperature range: -20 degrees F to 185 degrees F
• Meets IEC 60529, NEMA 1, and RoHS compliance standards

Compatibility

Designed as an OEM-style replacement general-purpose basic snap switch for use in standard NEMA 1 indoor control and limit switch applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines. Disconnect and lock out all power to the control circuit before removing or installing the switch. Secure all screw terminal connections to the torque value specified in the equipment manufacturer documentation. Verify contact configuration and circuit wiring against the system schematic before restoring power.
