Square D 9002AW6 Foot Switch 5 Amp 600 VAC SPDT Replacement MPN

Product Description

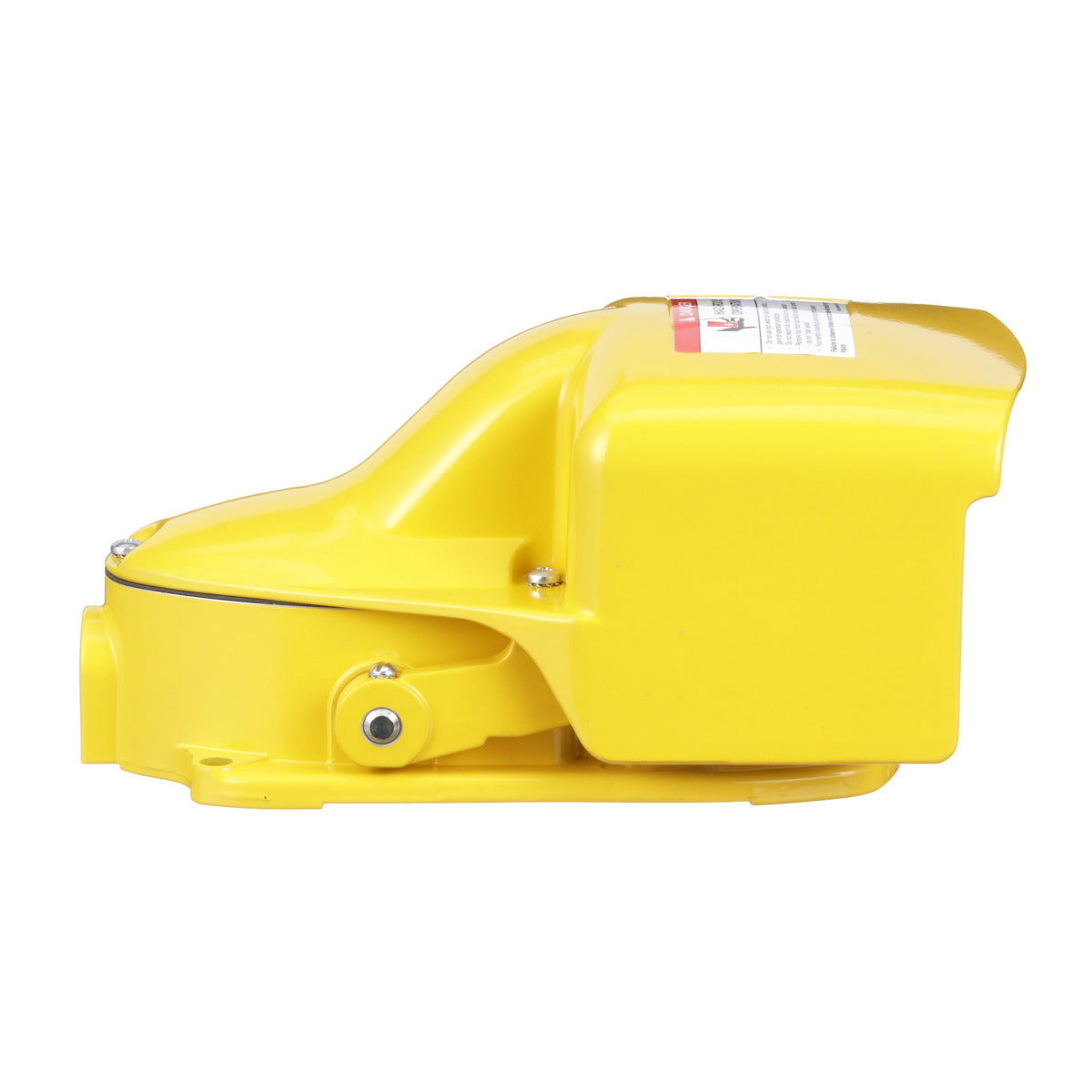

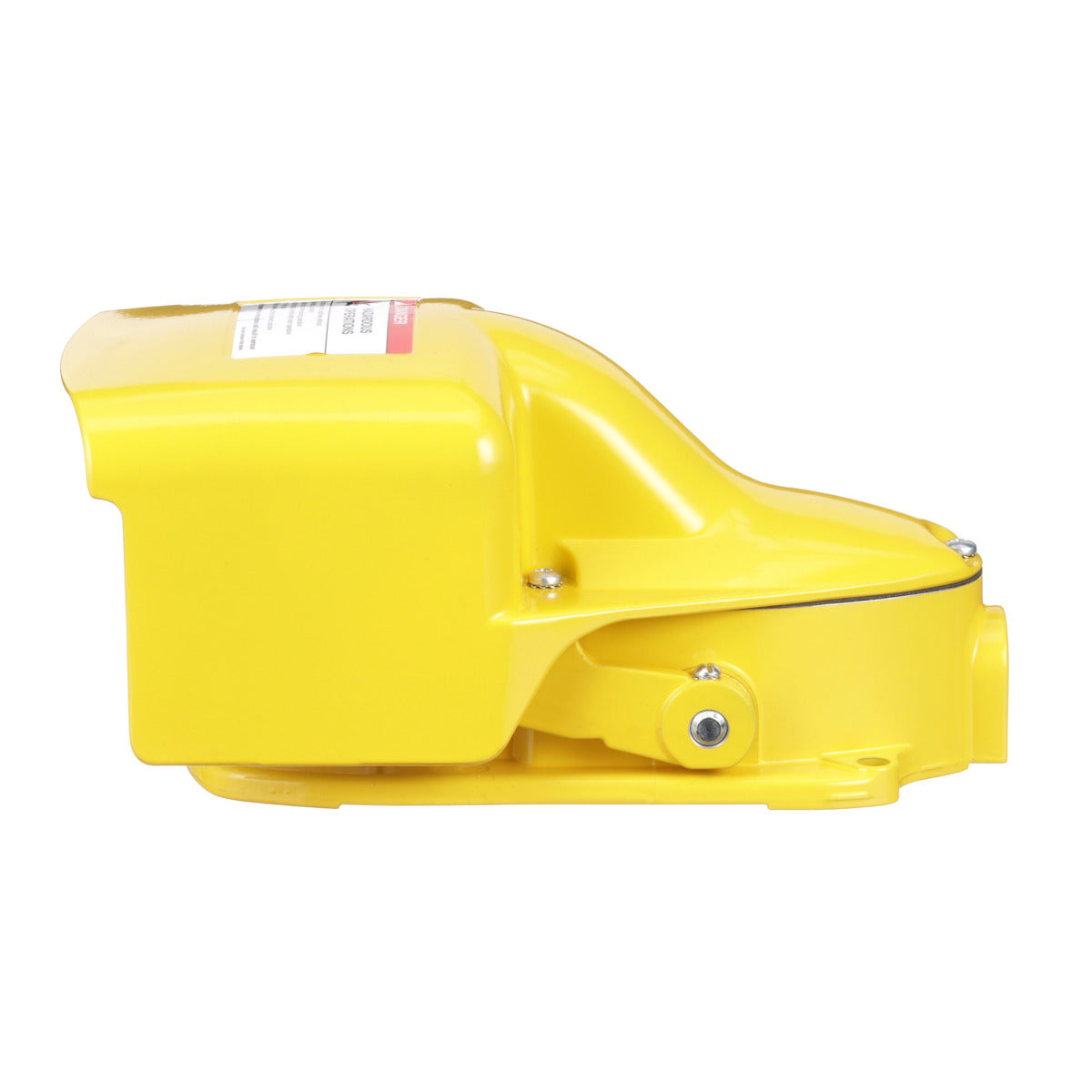

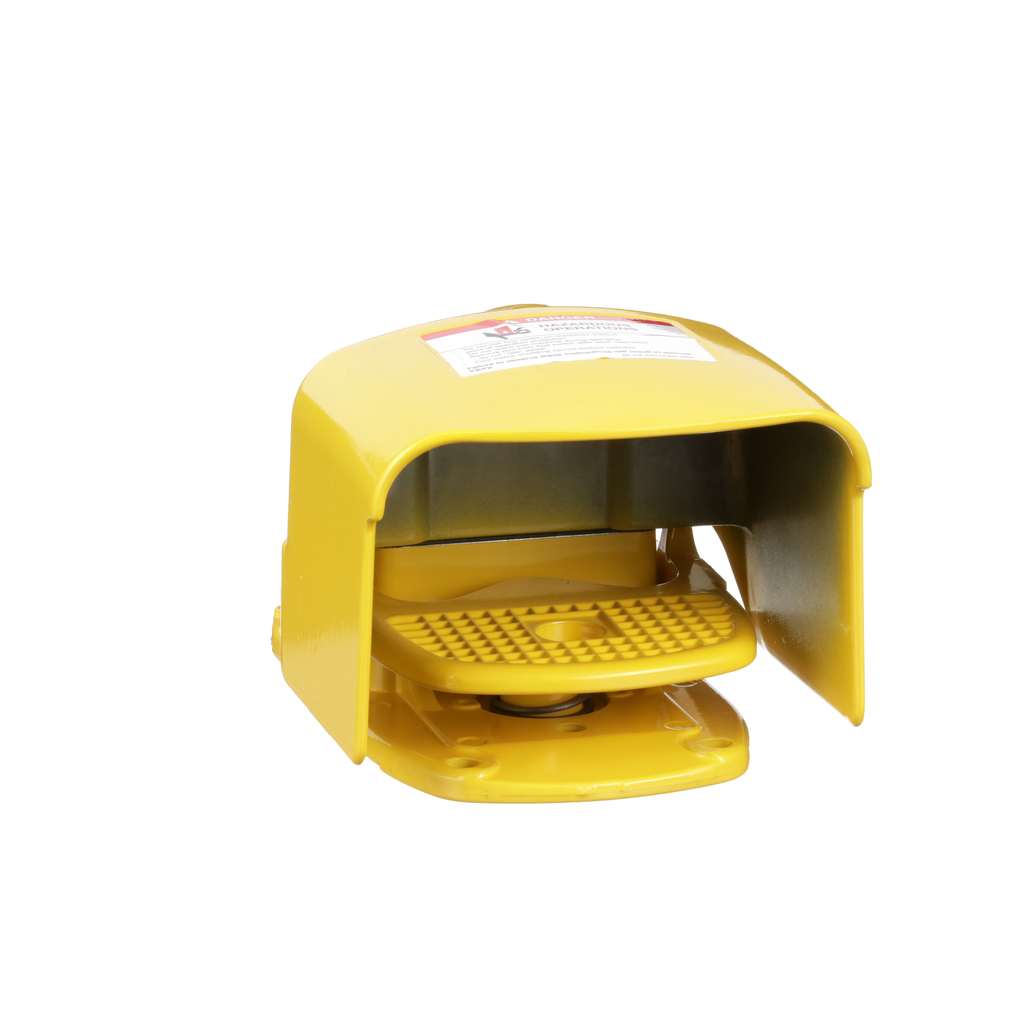

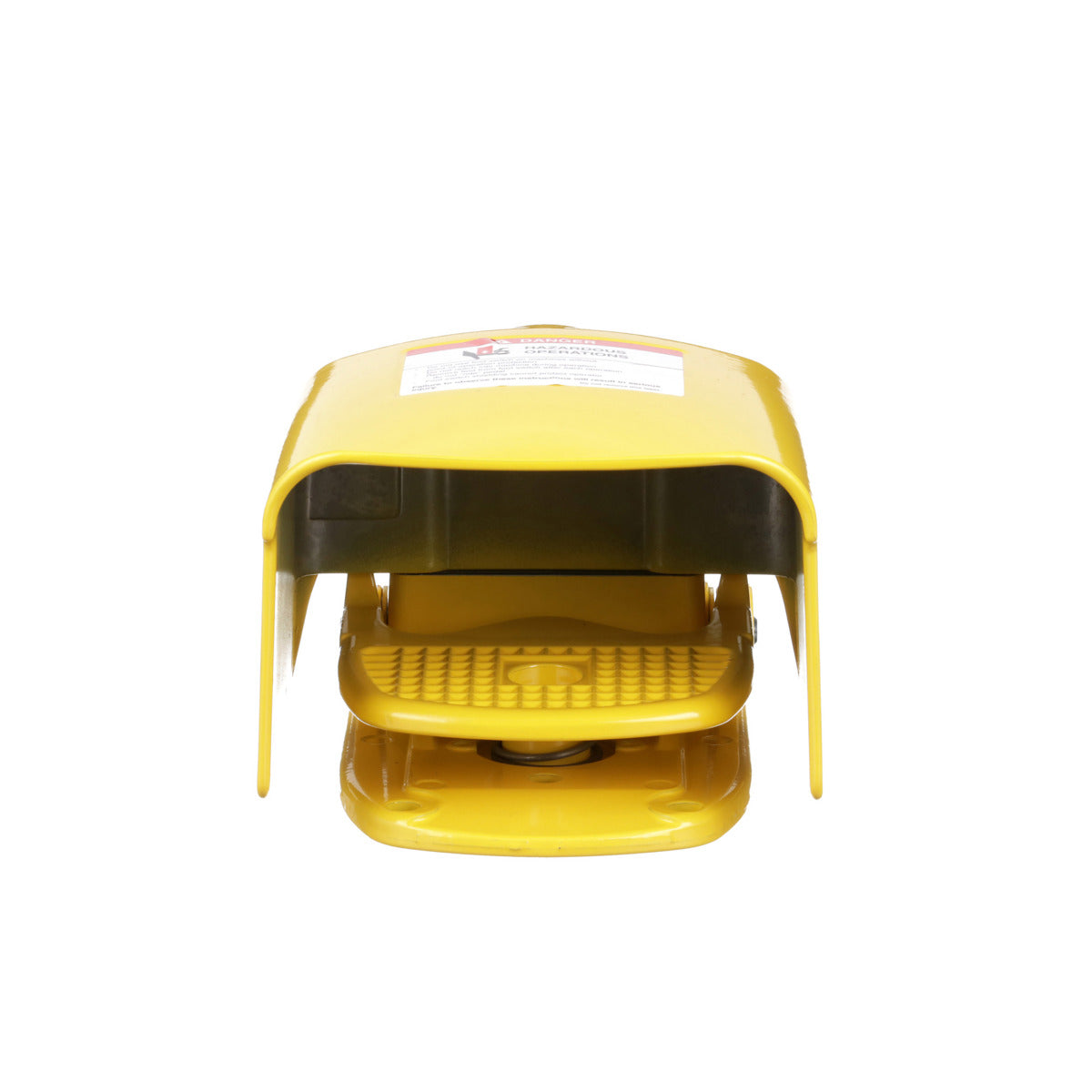

The Square D 9002AW6 foot switch is designed for industrial applications, providing reliable controls while ensuring that the operator's hands are free for other tasks. This switch features pedal and side shields for enhanced protection. It includes a mechanical latch and uses a single pole double throw snap switch for each of its two stages, rated at 5 Amperes resistive at 600 Volts AC. The switch is suitable for circuits of the same polarity with two double break contact elements for each stage. It meets NEMA enclosure ratings 2, 4, and 13, offering versatility in various environments.

• Capable of handling resistive loads up to 5A at 600 VAC.
• Constructed with heavy-duty components for longevity.
• UL listed and CSA certified for safety compliance.

Product Highlights

This foot switch is ideal for controlling industrial machinery and processes. It allows for hands-free operation, which is crucial in busy work environments where multiple functions need attention at once.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9002AW6
• Voltage: 600 Volt
• Enclosure Rating: NEMA 2, 4, 13
• Action: Two steps, spring return
• Depth: 229 mm
• Width: 137 mm
• Height: 123 mm
• Country of Origin: Mexico
