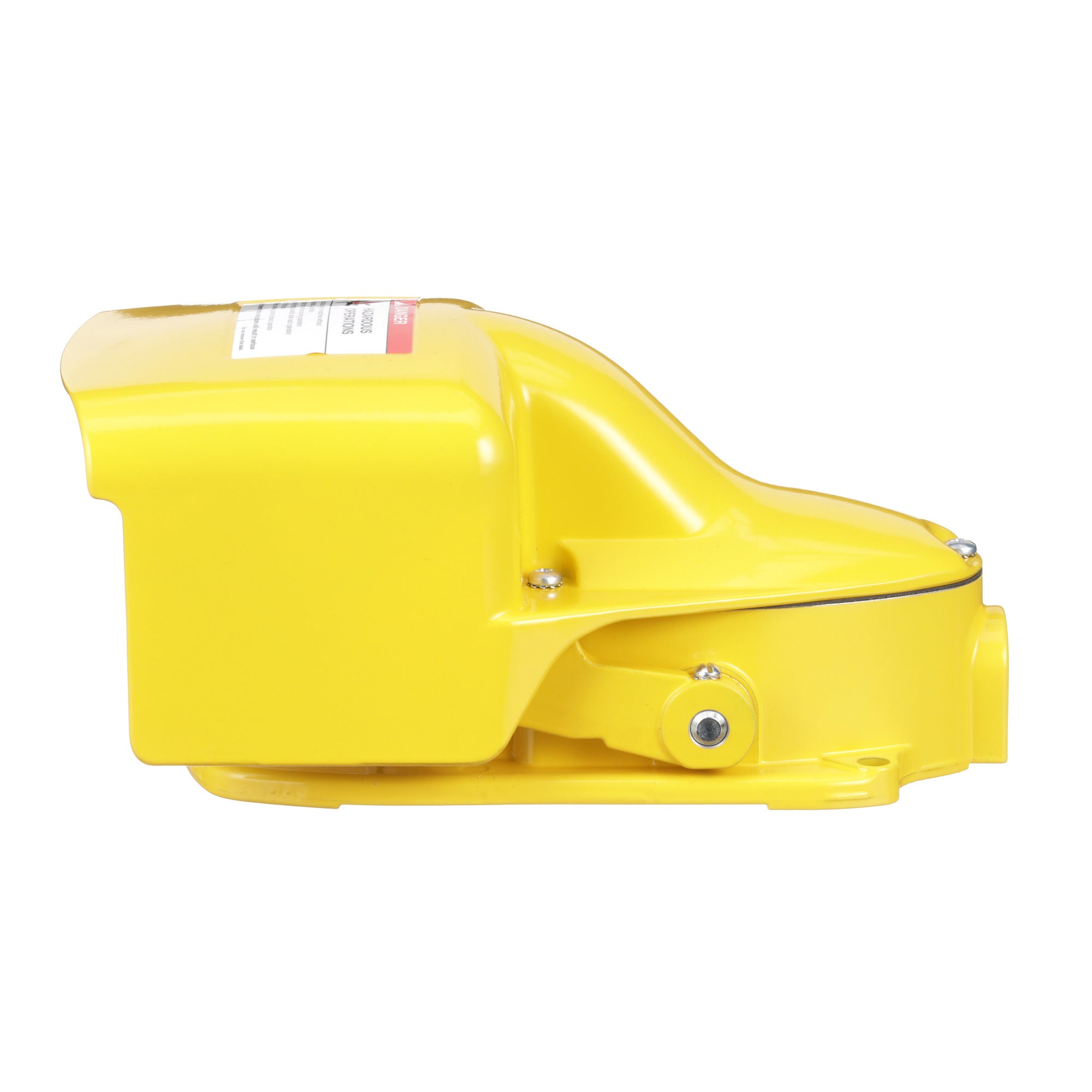

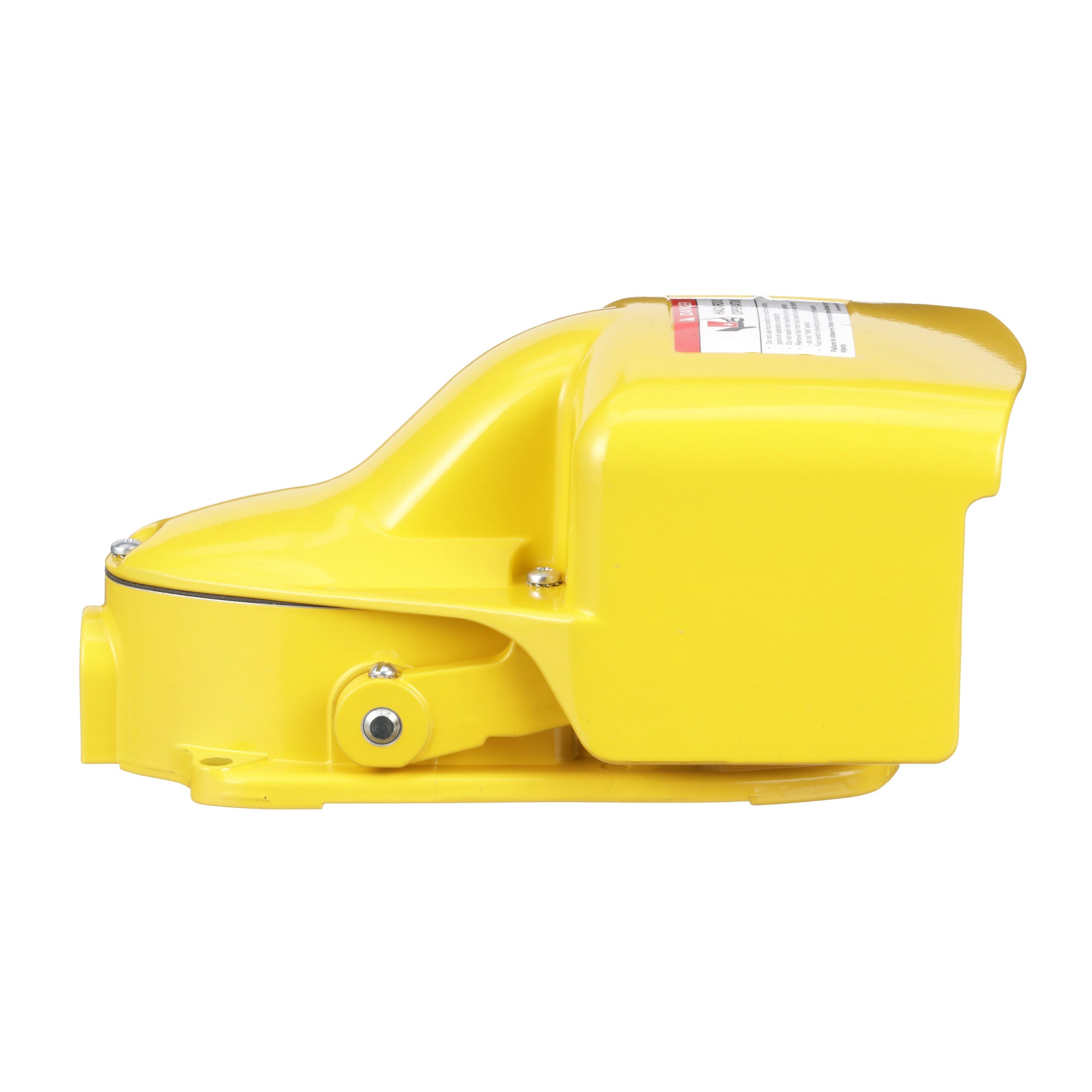

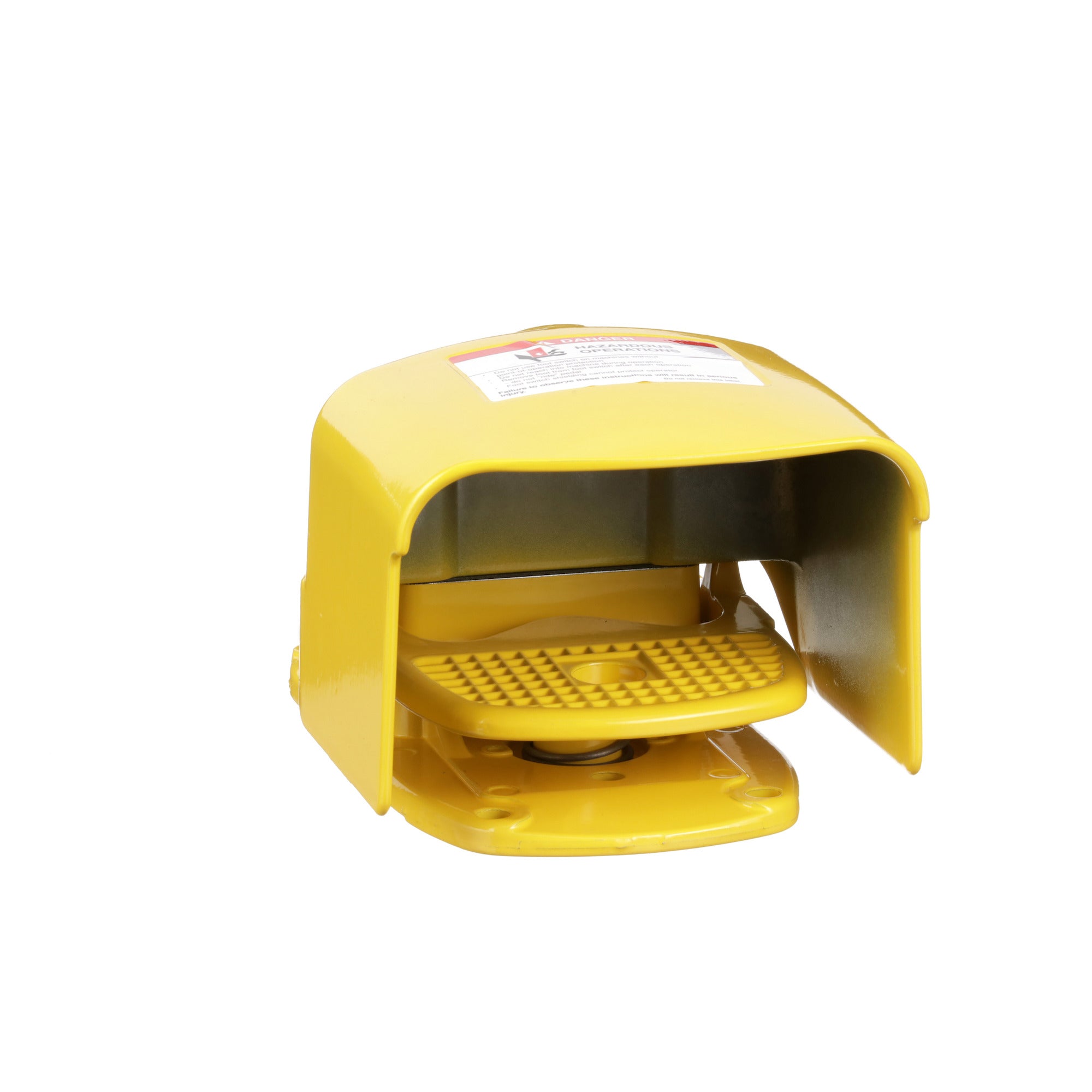

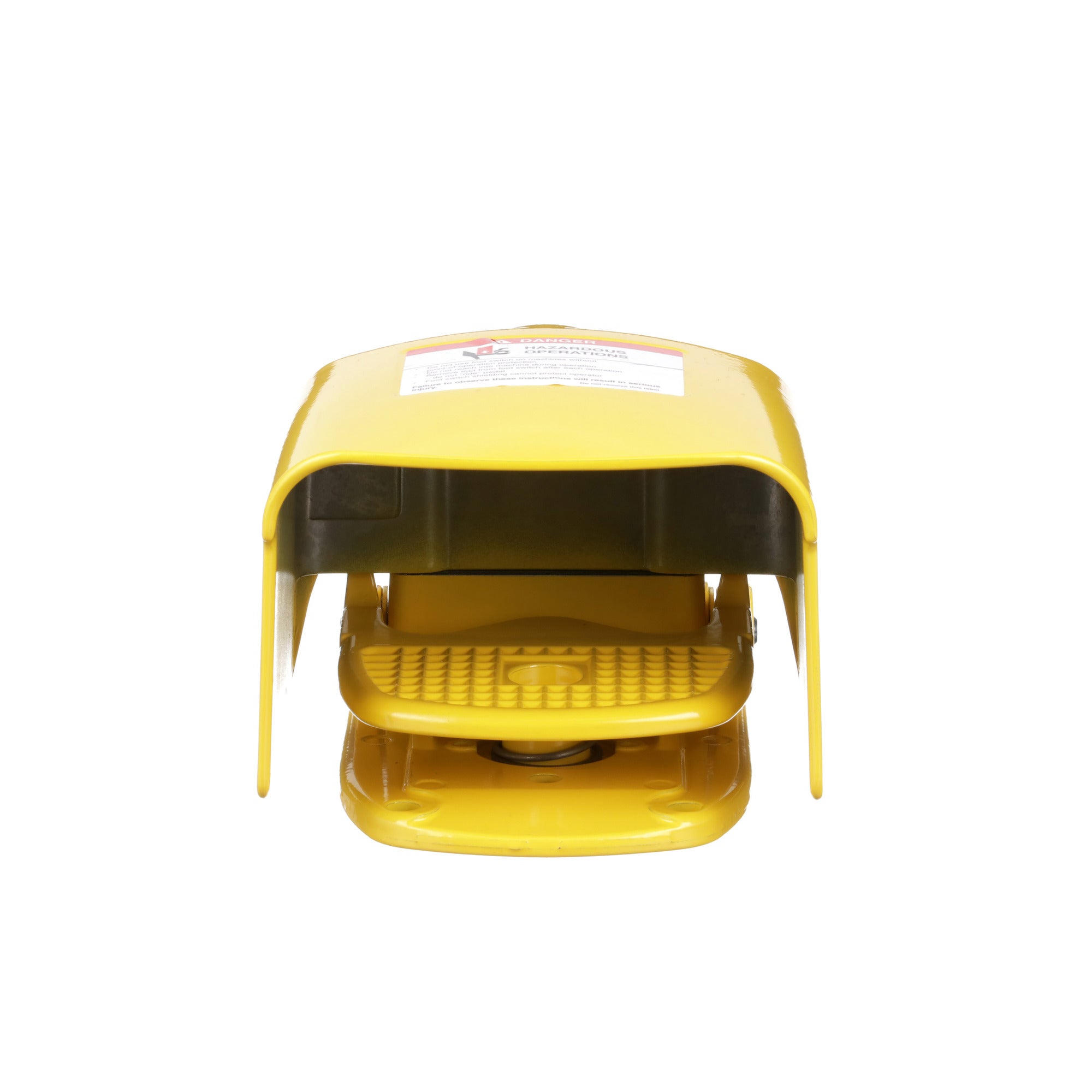

Square D 9002AW2 Foot Switch 5 Amp 600 VAC NEMA 2 4 13

Product Description

Square D 9002AW2 is a robust foot switch designed for industrial applications. It enables operators to control processes while keeping their hands free. This foot switch is equipped with pedal and side shields. The device employs a single pole double throw (SPDT) snap switch rated at 5 amps resistive at six hundred volts AC. The configuration includes two types of contacts, ensuring reliable operation in circuits of the same polarity. This foot switch is recognized with NEMA ratings of 2, 4, and 13, indicating its capability to withstand various environmental conditions. The cable entry features a three-quarters inch NPT conduit thread, facilitating easy installation. It is compliant with UL and CSA standards.

• NEMA ratings of 2, 4, and 13 for diverse applications
• Heavy-duty construction for industrial use
• UL Listed and CSA Certified

Product Highlights

The Square D 9002AW2 foot switch is suitable for numerous applications such as automotive, material handling, and tooling, ensuring operator safety and efficiency.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9002AW2
• Type: Foot Switch
• Rated Voltage: 600 V AC/DC
• Enclosure Rating: NEMA 2, 4, 13
• Cable Entry: 0.75 inch NPT conduit
• Action Type: Spring Return
• Height: 123 mm
• Width: 137 mm
• Depth: 229 mm
• Warranty Length: 18 months
• Country of Origin: Mexico
