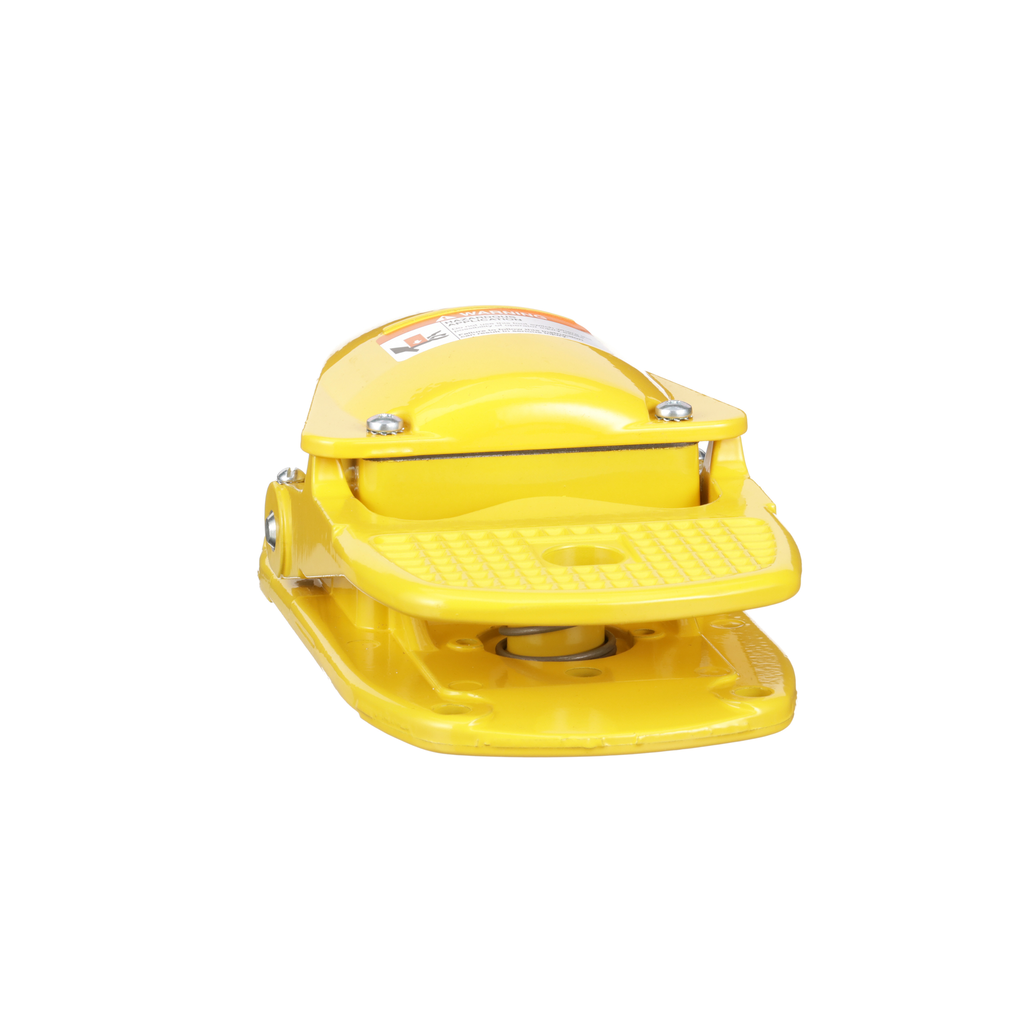

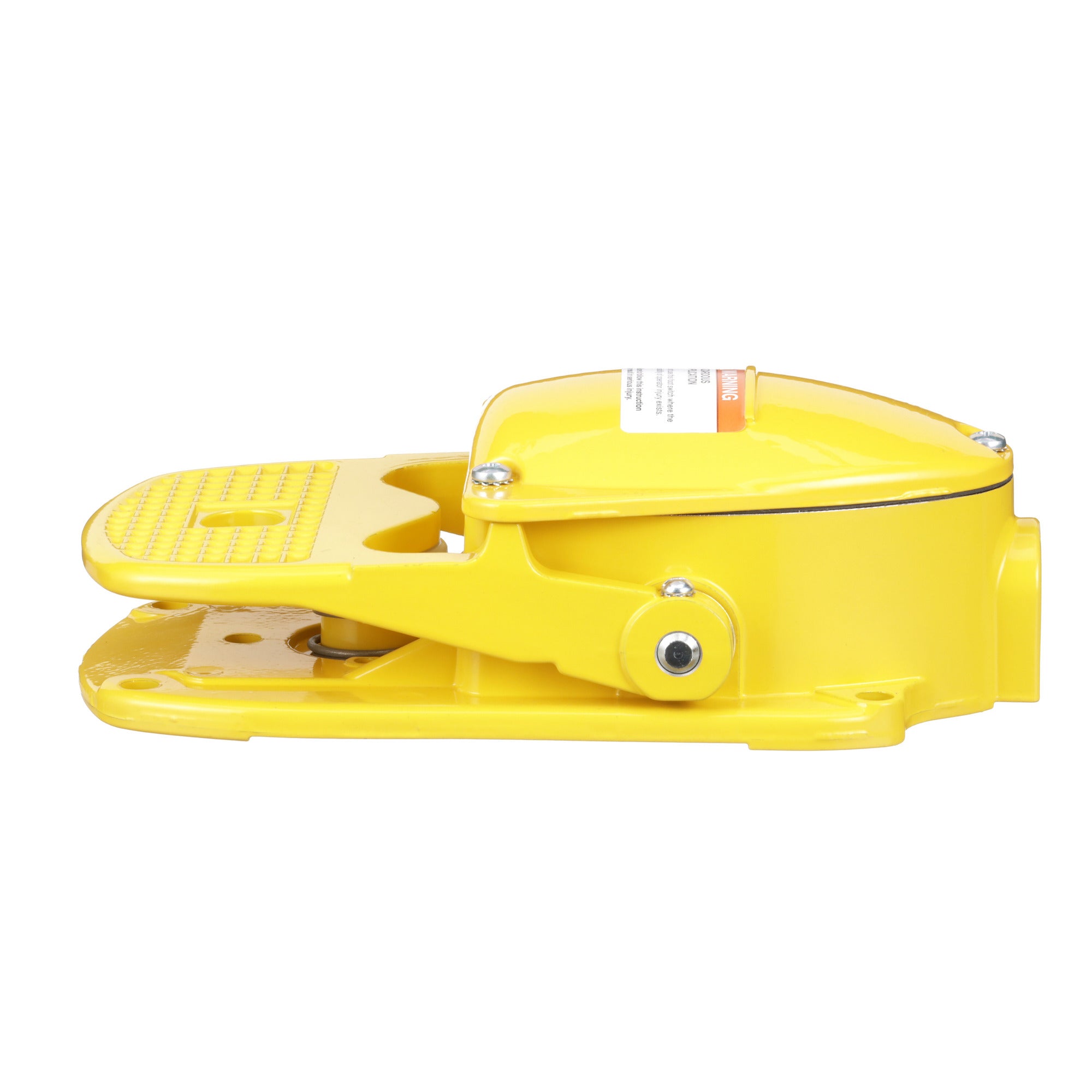

Square D 9002AW13 Foot Switch 0.6 Amp 600 VAC DPDT NEMA 2, 4, 13

Product Description

The Square D 9002AW13 is a foot switch designed to control industrial processes while keeping the operator's hands free. It is suitable for various applications that require a spring return action. This switch is unshielded and features a double pole double throw snap switch that can handle 0.6 Amps at 600 VAC.

• NEMA rated for 2, 4, and 13 environments
• Cable entry with a three-quarter-inch NPT conduit thread
• UL listed and CSA certified for safety

Product Highlights

Heavy-duty industrial foot switch for controlling processes, allowing safe hands-free operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9002AW13
• Voltage: 600 Volt
• Action: One step, spring return
• Height: Ninety-nine mm
• Width: One hundred fourteen mm
• Depth: Two hundred sixteen mm
• Enclosure Rating: NEMA 2, 4, 13
• Cable Entry: 0.75 inch NPT conduit entrance
