Square D 9002AW117 Foot Switch 5 Amp 600 VAC Spring Return NEMA 4 13

Product Description

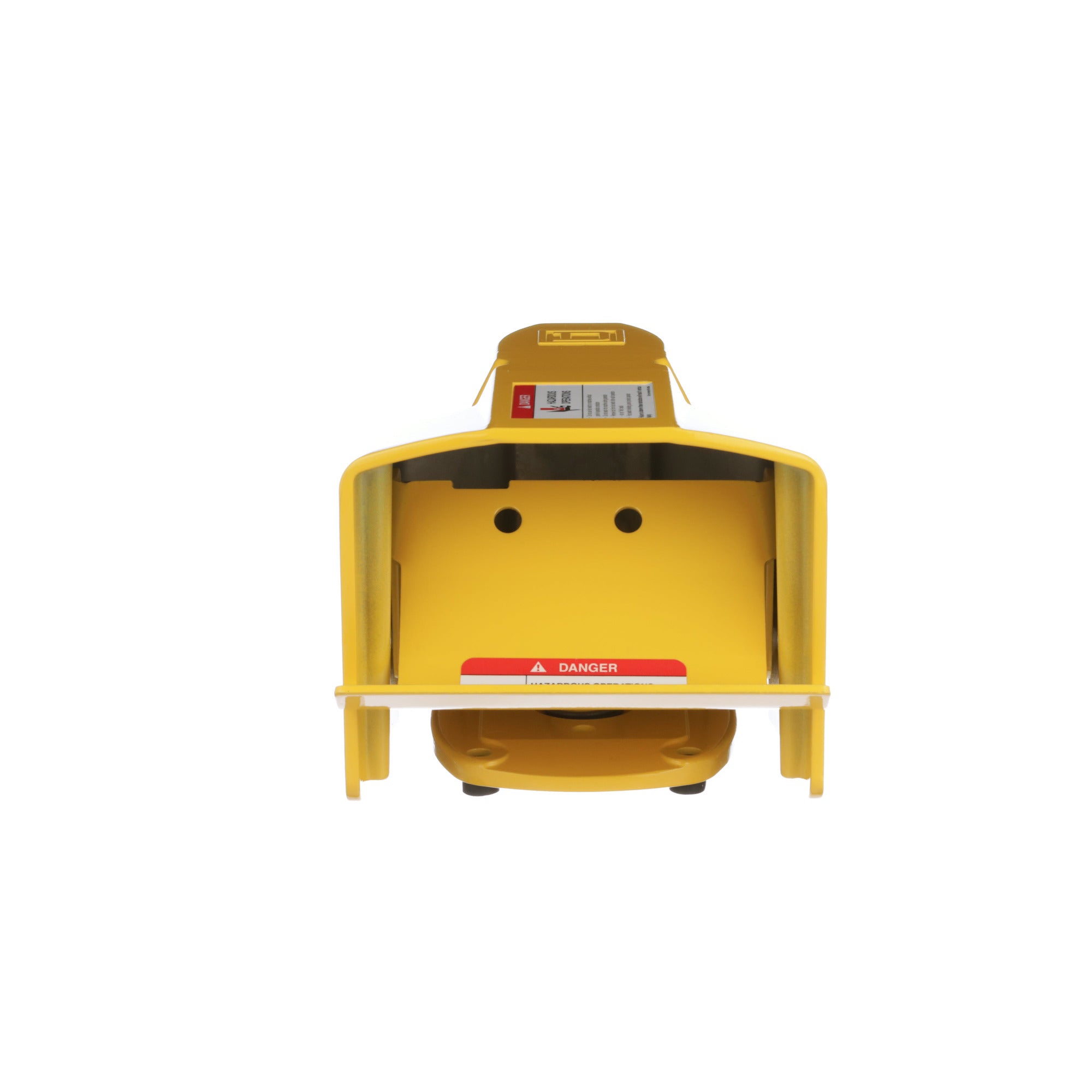

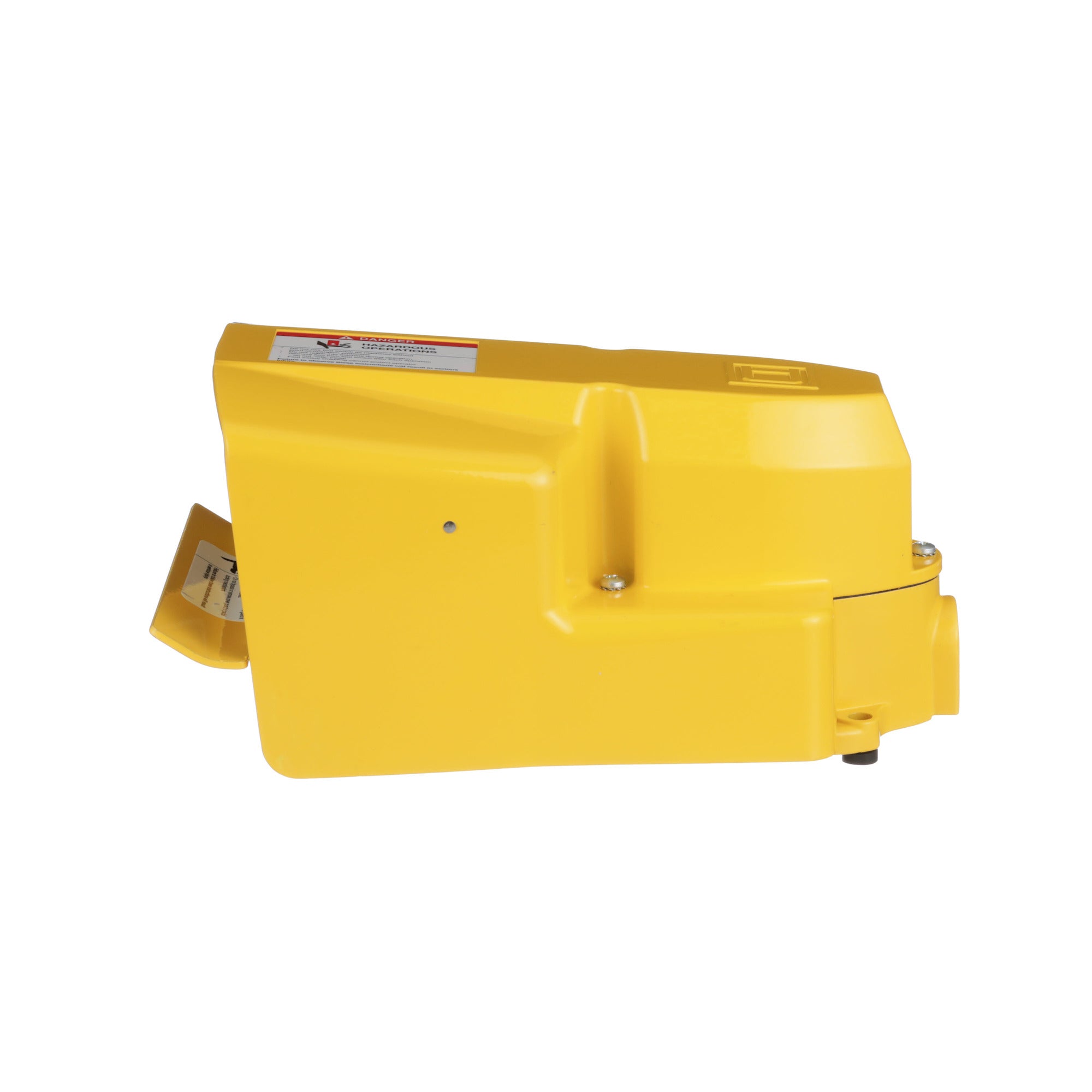

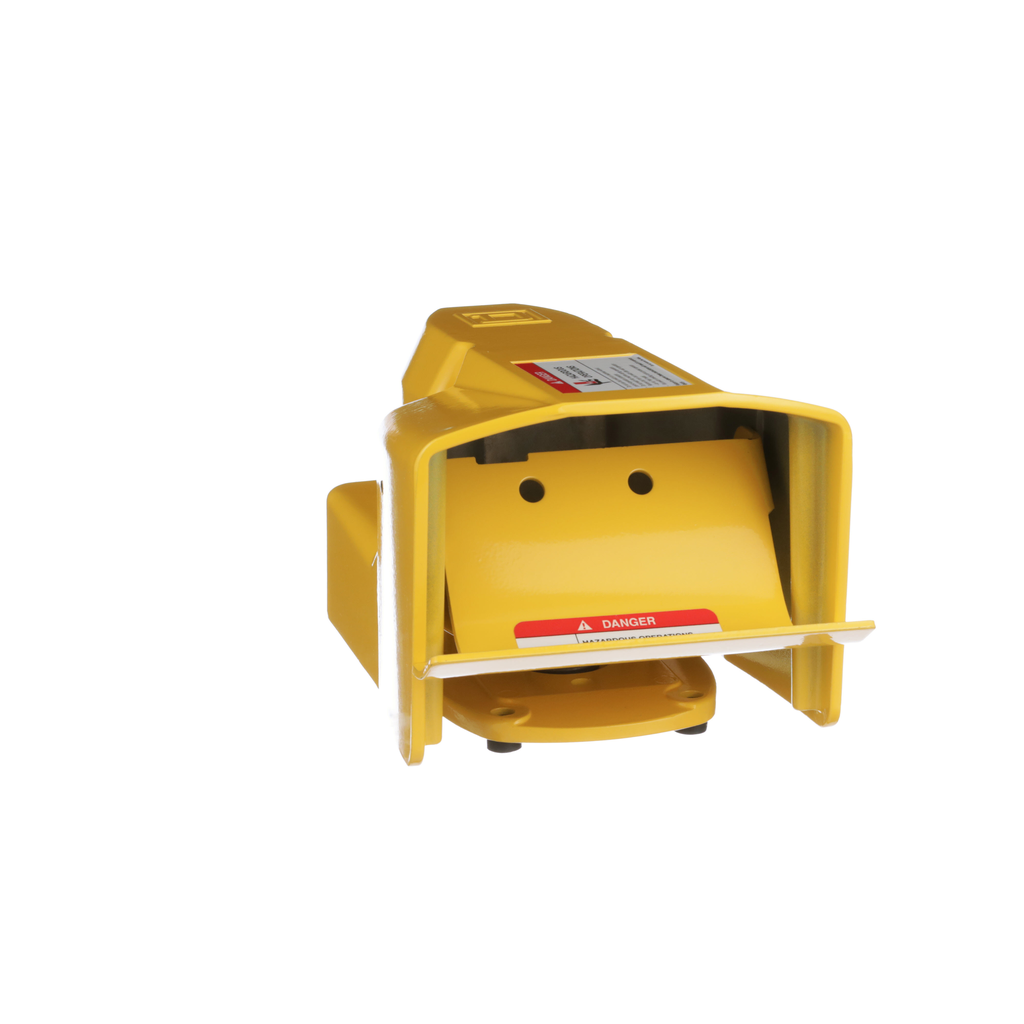

Square D 9002AW117 is a foot switch designed for industrial control applications. This switch allows operators to control machinery while keeping their hands free for other tasks. It features an oversized pedal shield, side shields, and a safety door for enhanced protection. The single pole double throw snap switch is rated at five amps resistive at six hundred volts alternating current. It is crucial to use it on circuits of the same polarity. This device has an enclosure rating of NEMA 2, 4, and 13. The cable entry is equipped with a zero point seventy-five inch NPT conduit tread. The dimensions of this foot switch are six point twenty-six inches tall, six point forty inches wide, and eight point fifty-six inches deep. It meets UL and CSA certification standards.

• Designed for industrial applications
• Rated for five amps at six hundred VAC
• NEMA rated for safety and durability

Product Highlights

This foot switch is ideal for various industrial processes requiring reliable control at a safe distance.

Product Information

Standard Information

• Catalog Number: 9002AW117
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Foot switch
• Depth: 8.56 inches
• Width: 6.40 inches
• Height: 6.26 inches
• Voltage: 600 Volt
• Actuator: Spring return
• Enclosure Rating: NEMA 2, 4, 13
• Country of Origin: Mexico
• Certifications: UL Listed, CSA
• Warranty Length: 18 months
• Special Features: Oversized pedal shield, safety door, side shield
