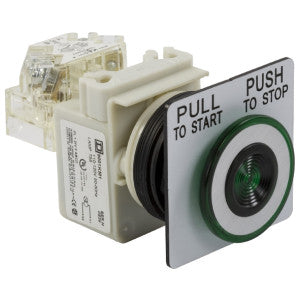

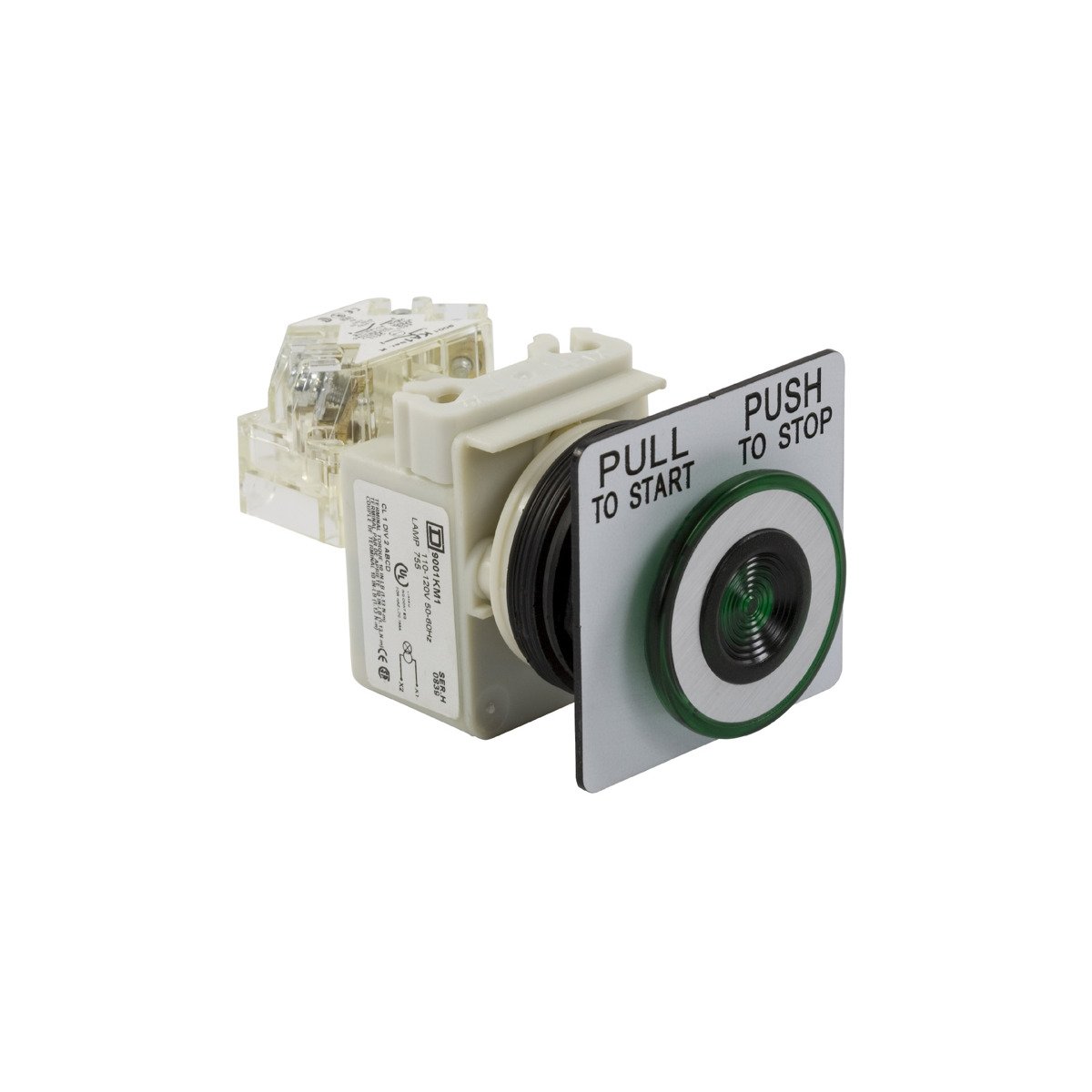

Square D 9001SKR9P1GH13 30 mm 600 VAC 2-Position 1NO 1NC Illuminated Push Button

Product Description

The Square D 9001SKR9P1GH13 is a Harmony 9001SK modular illuminated push button with a screw-in head and stay-put mechanism. It features a double insulated plastic bezel and is supplied with a 110V AC integral LED. The push button has a 40mm mushroom head with 1 x NO + 1 x NC contacts and is easily installed into a standard 30mm diameter panel cut-out.

• Modular illuminated push button with screw-in head
• Double insulated plastic bezel
• Impact, dust, water, and vibration resistant (IP65)

Product Highlights

This corrosion-resistant push button is ideal for applications requiring quick actions in harsh environments. It is easily installed and clearly visible, ensuring reliable operation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001SKR9P1GH13
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00785901043072
• Size: 1.18 in
• Type: Illuminated mushroom head push-button
• Brand: Square D
• Action: PUSH-PULL
• Voltage: 110...120 Volt AC 50...60 HZ
• Actuator: GREEN MUSHROOM Ø 41 MM,PUSH-PULL
• Amperage: 10 Amp
• Standard: CSA C22.2 No 14,EN/IEC 60947-5-1,IEC 60947-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
• Enclosure: NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X
• Indicator: BA 9S
• Sub Brand: 9001SK
• Product UPC: 78590104307
• 12-Digit UPC: 785901043072
• TC Connection: SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA IEC 60947-1
• Bezel Material: Plastic
• Contact Rating: 600 VAC 10 Ampere
• Contact Material: Silver Alloy
• Country of Origin: Mexico
• Storage Temperature: -40-70 degrees C
• Contact Configuration: 1 C/O
• Operating Temperature: -25-70 Adegrees C
• Environmental Conditions: WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Connection: Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Material: Plastic
• UPC: 785901043072
• Item Type: Illuminated push-button
• Voltage Rating: 110...120 V
• Positions: 2-Position
• Contacts: 1NO 1NC
• Head: Mushroom
• Illumination: Illuminated
• IP Rating: IP65
• Operation Type: Maintained Pull/Maintained Push
• Lamp Input Type: 2.4 VA 110 to 120 V at 50 to 60 Hz Transformer
• Lamp Type: Incandescent
• Lamp Included: Yes
• Lamp Number: 755
• Approval: UL 508, CSA C22.2, CE
• Applicable Standard: EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852
• Series: Harmony 9001SK
• Connection Type: Screw Clamp Terminals
• IEC Rating: IP66 IEC 60529 || IP66 NF C 20-010
• Knob Style: Green Mushroom Ø 41 mm
• No. of Positions: 2
• Operator Shape: Round
• Rated Voltage: 250V
• Torque: 0.8-0.8 N.m IEC 60947-1
• Current Rating: 10 A
• Mounting Hole Size: 30 mm
• Mounting Type: Panel Mount
• Operation: Maintained
• Terminal Type: Screw Clamp
• Part Number #: 9001SKR9P1GH13
• Supply Voltage: 110/120 VAC
