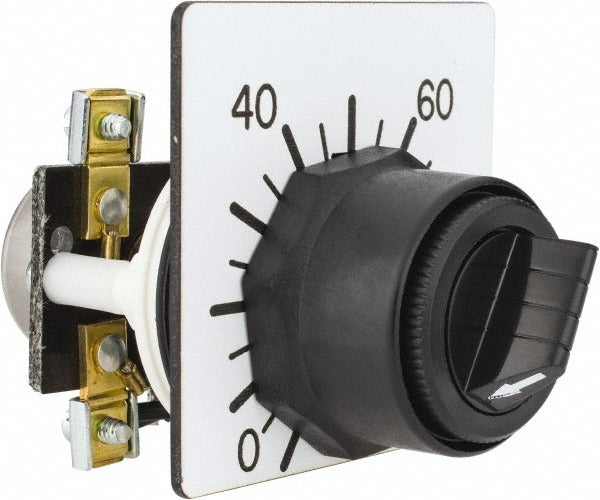

Square D 9001SK2107 Potentiometer 5000 Ohm 30mm 300 Vac

Product Description

The SQUARE D 9001SK2107 is a 5,000 ohm potentiometer rated for 300 volts AC and 2 watts, designed for panel-mount control applications in industrial and commercial electrical systems. The 30mm mounting hole diameter accommodates standard 30mm cutout enclosures. It is knob-operated and non-illuminated, making it straightforward to install as a speed, voltage, or resistance adjustment device in control circuits. Licensed electricians and industrial control technicians are the primary installers. The NEMA 4 and NEMA 13 ratings confirm suitability for environments exposed to dust, oil, and non-corrosive liquids, expanding its use beyond clean indoor panels.

This potentiometer fits 30mm panel cutouts common in industrial control enclosures and operator stations. It is well suited for use in machine control panels, motor speed adjustment circuits, and other low-current analog control loops where a reliable rotary resistance element is required. The RoHS-compliant construction meets current environmental standards for components used in commercial and industrial electrical assemblies. Typical installations involve surface-mount or flush-mount control panels in manufacturing, process control, and HVAC equipment control applications.

Key Features

• 5,000 ohm resistance for precise analog control circuit adjustment
• 300 VAC rating supports standard control-voltage panel applications
• 2 watt power rating handles typical low-current control loop demands
• 30mm mounting hole diameter fits standard 30mm operator cutouts
• NEMA 4 and NEMA 13 rated for dust-tight and oil-resistant environments
• RoHS compliant construction meets current environmental compliance requirements
• Knob-operated, non-illuminated design for straightforward operator interface

Compatibility

Designed as an OEM-style replacement for 30mm panel-mount potentiometers used in industrial control enclosures and operator stations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel completely before removing the existing potentiometer or making wiring connections. Use a properly sized panel punch or existing 30mm cutout for mounting, and verify the enclosure NEMA rating is compatible with the installation environment before closing up. Confirm resistance value and wattage match the original circuit design before returning the panel to service.
