Square D 9001KYSS2 Empty Enclosure Control Station

Product Description

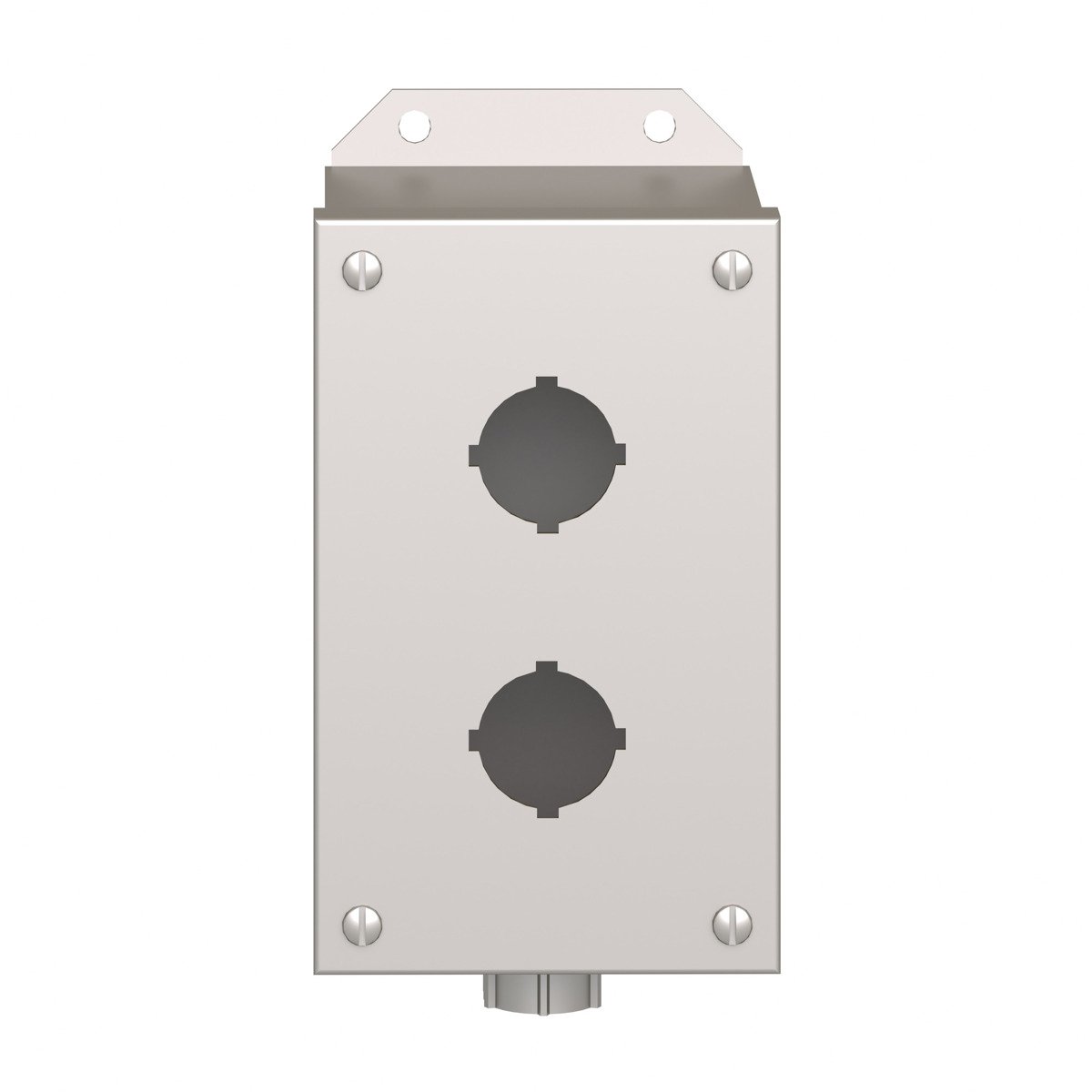

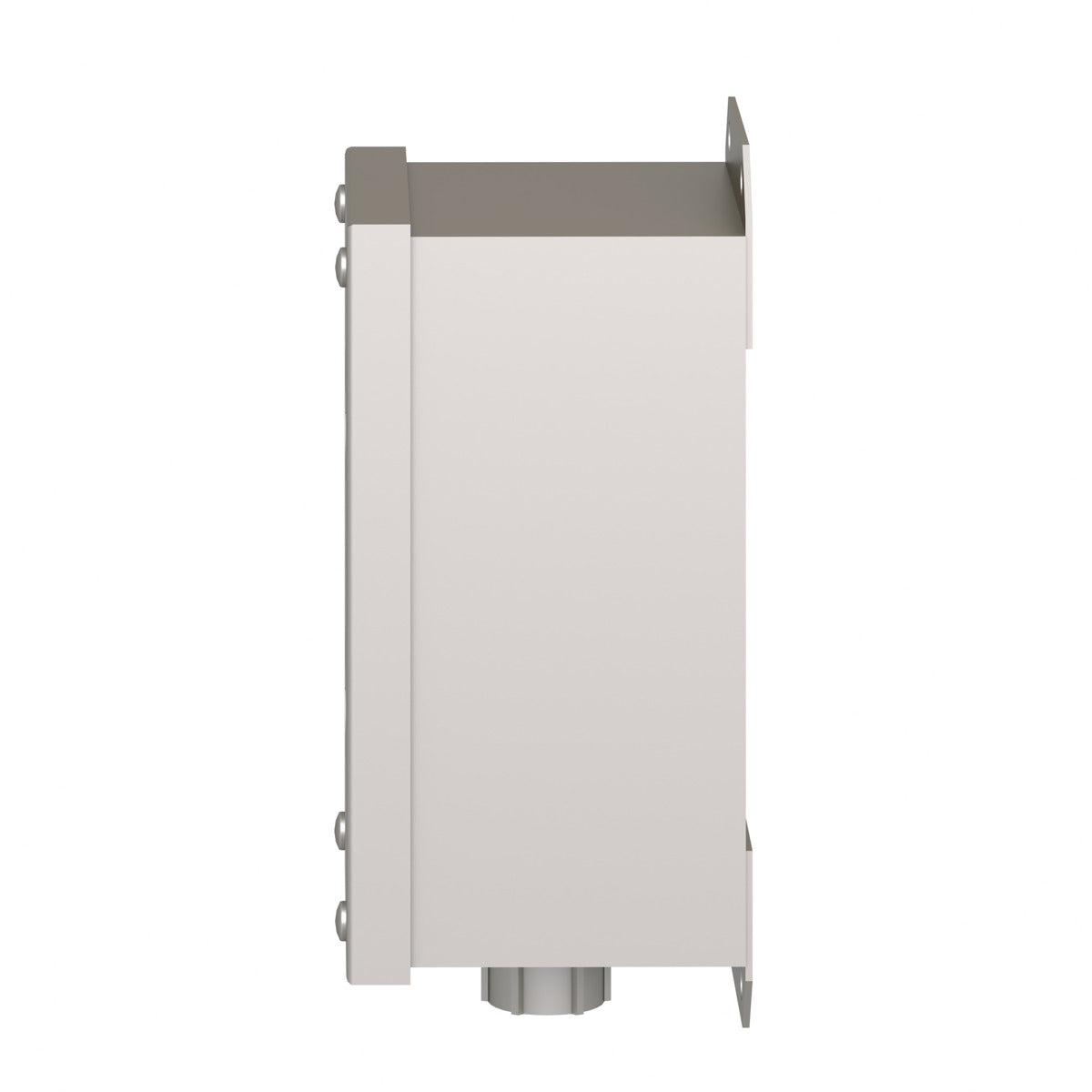

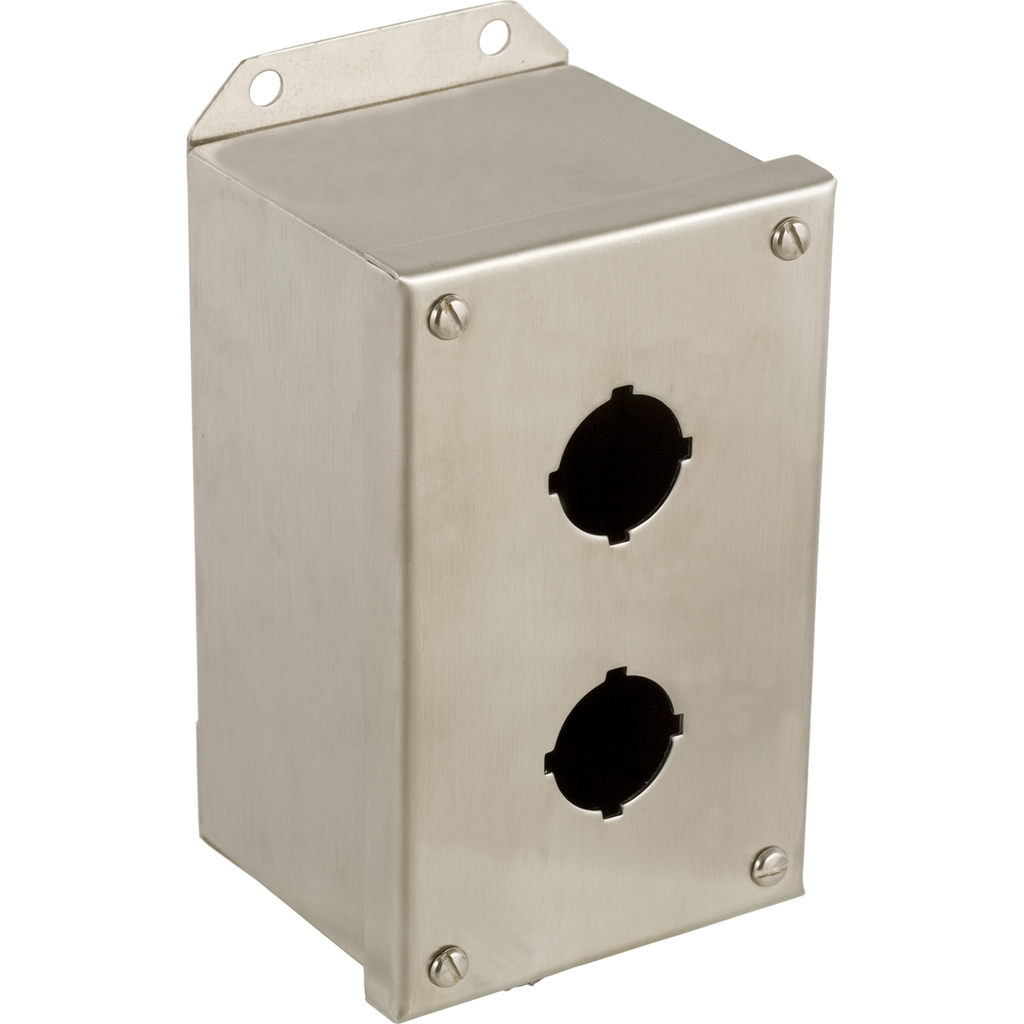

Square D 9001KYSS2 is a stainless steel empty enclosure suitable for control and signaling units, specifically from the Harmony 9001K and 9001SK series, with a diameter of thirty millimeters. This enclosure offers two vertical openings and includes an entry tapped for three-quarter inch knockout. It meets NEMA ratings 1, 3, 4, 4X, and 13, making it ideal for various industrial applications. The enclosure is UL listed, CSA certified, RoHS compliant, and comes with CE declaration of conformity.

• Stainless steel construction.
• Two openings for control units.
• Complies with multiple NEMA ratings.

Product Highlights

The 9001KYSS2 enclosure is designed to withstand harsh environments in industries such as petrochemicals, mining, and automotive manufacturing.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001KYSS2
• Material: Stainless Steel
• Enclosure Rating: NEMA 1/3/4/4X/13
• Weight: 3.02 lb
• Net Weight: 1.37 kg
• Dimensions: 4.18 x 7.74 x 3.63 inches
• Cable Entry: 1 entry tapped for 3/4 inch knockout
• Country of Origin: Mexico
• Operating Temperature: -25 to +70 degrees C
• Storage Temperature: -40 to +70 degrees C
• Applications: For 30mm control and signaling units
