Square D 9001KY4 NEMA 1/3/4/13 4-Hole Push Button Control Station Enclosure

Product Description

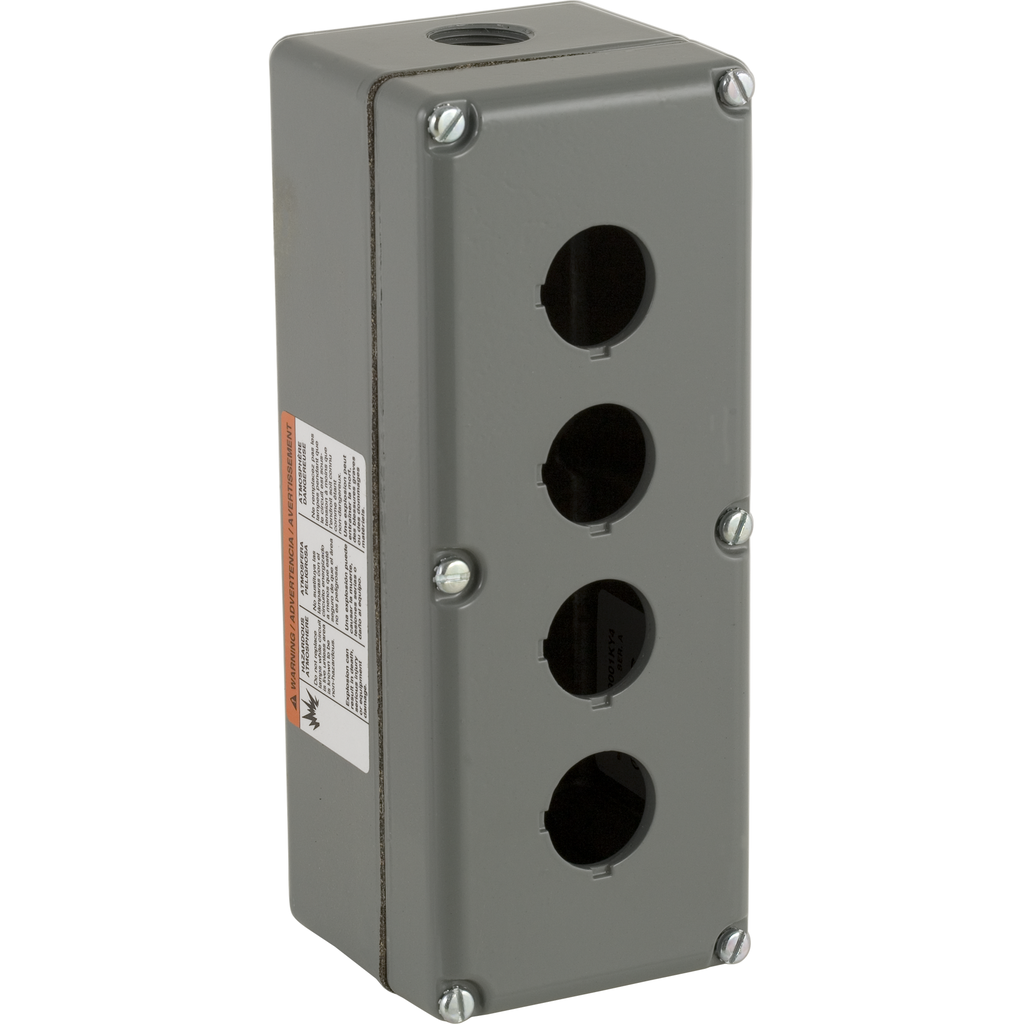

The Square D 9001KY4 is a control station enclosure designed for various control and signaling units in heavy industries. This product includes an aluminum housing featuring four vertical openings for 30mm components. It allows for the installation of one entry tapped for three-quarters inch cable gland, facilitating seamless operation and connectivity. The enclosure is certified to meet industry standards including UL, CSA, CE, and RoHS compliance. It weighs approximately 1.846 kilograms and is suitable for applications in petrochemicals, metallurgy, mining, oil and gas, wastewater treatment, and automobile manufacturing.

• Aluminum construction with four vertical 30mm openings
• Accepts one cable gland entry (3/4 inch)
• OE listed and RoHS compliant for safe use

Product Highlights

This enclosure is part of the Harmony 9001 series, designed for durability and reliability across a range of demanding applications.

Product Information

Standard Information

• Catalog Number: 9001KY4
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Weight: 4.06 lb
• Material: Aluminum
• Enclosure Type: NEMA 3/4/13
• Net Weight: 1.84 kg
• Cable Entry: 1 entry tapped for 3/4 inch cable gland
• Warranty Length: 18 months
• Country of Origin: Mexico
