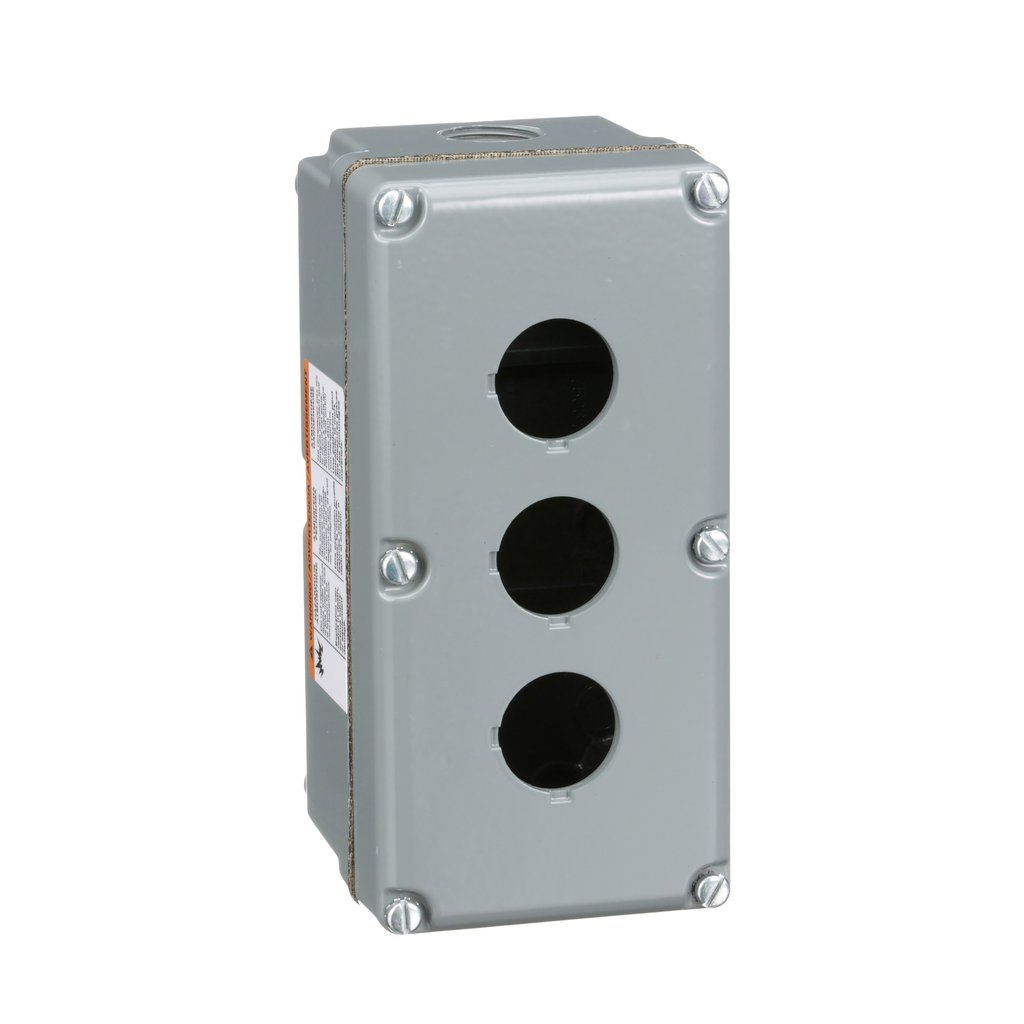

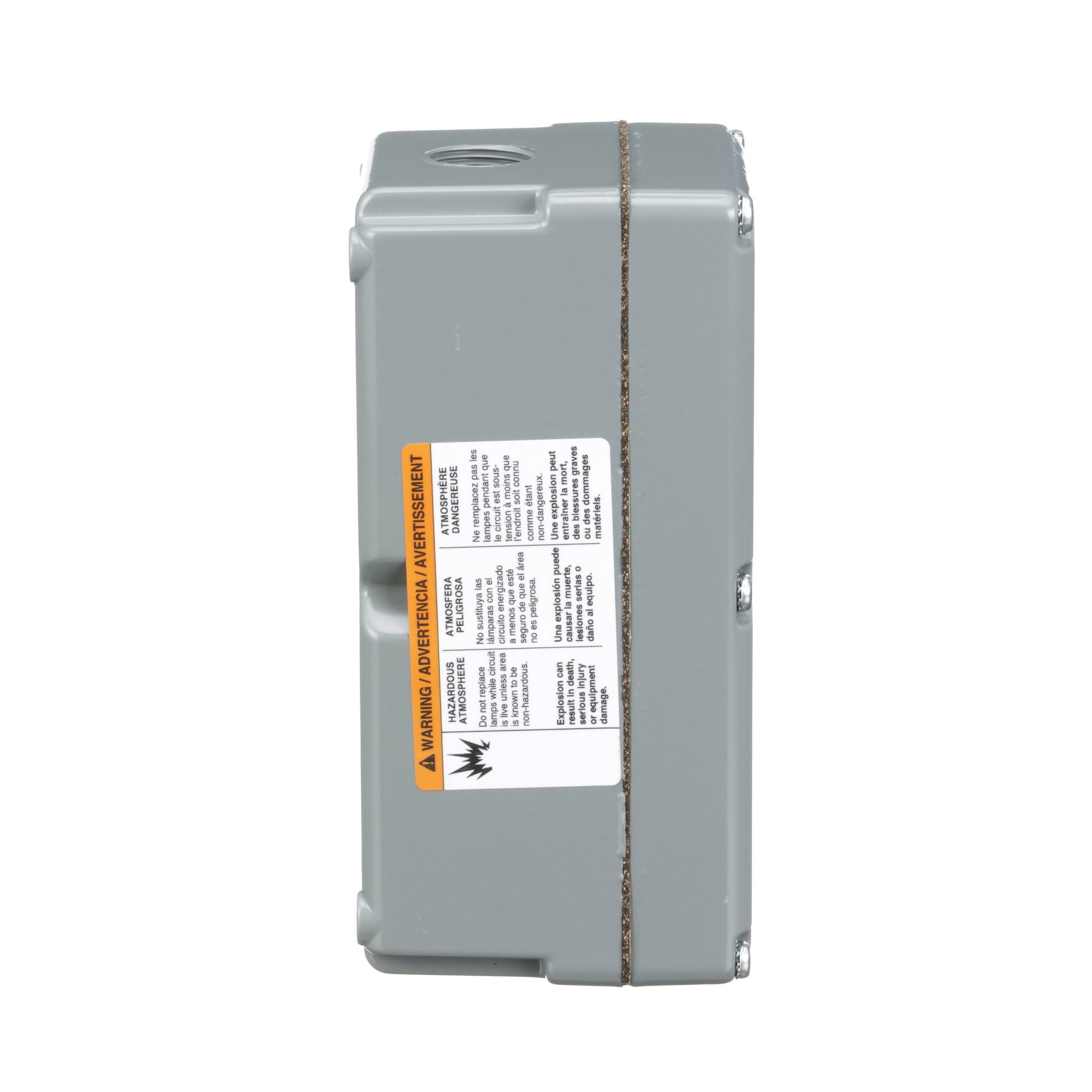

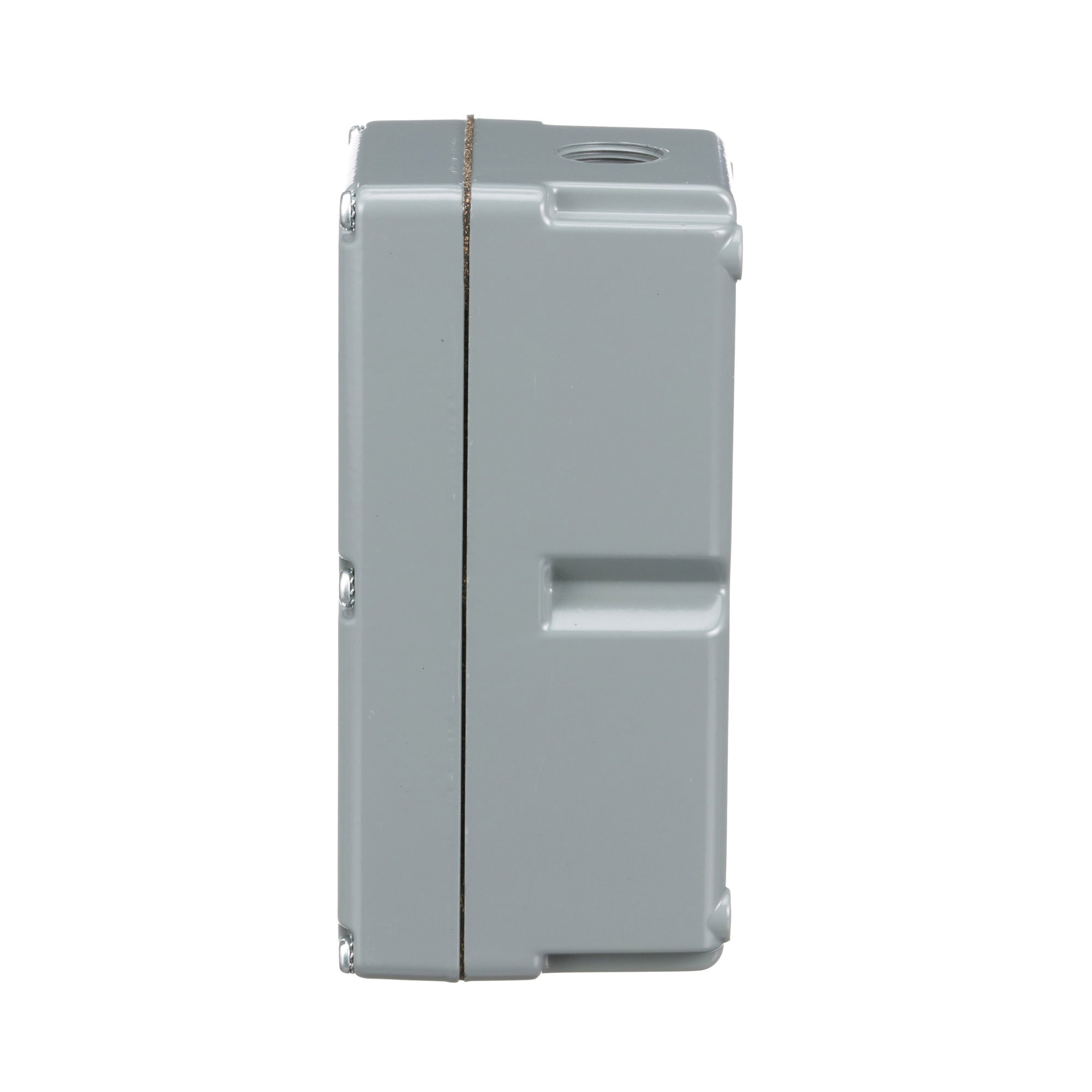

Square D 9001KY3 Push Button Control Station Enclosure NEMA 1/3/4/6/12/13

Product Description

Square D offers the 9001KY3, a push button control station enclosure designed for heavy-duty industrial use. The enclosure has a size of three point six three inches by seven point five inches by three point five three inches, and meets NEMA ratings of four and thirteen. It is suitable for environments that demand durability and versatility.

• IP 66 and NEMA rated for oil and water resistance
• Compatible with various control and signaling units
• Self-grounding with no additional wiring required

Product Highlights

This control station enclosure provides robust options for operators, including push buttons and emergency stop mushroom heads, ensuring reliability in extreme environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9001KY3
• Material: Aluminum
• Weight: 3.44 lb
• Enclosure Type: NEMA 3/4/13
• Cable Entry: One entry tapped for three fourth inch cable gland
• Warranty Length: Eighteen months
• Operating Temperature: Minus twenty-five to plus seventy degrees Celsius
• Environmental Conditions: Rain tight, dust tight, and oil tight
