Square D 9001KY2 Push Button Control Station Enclosure

Product Description

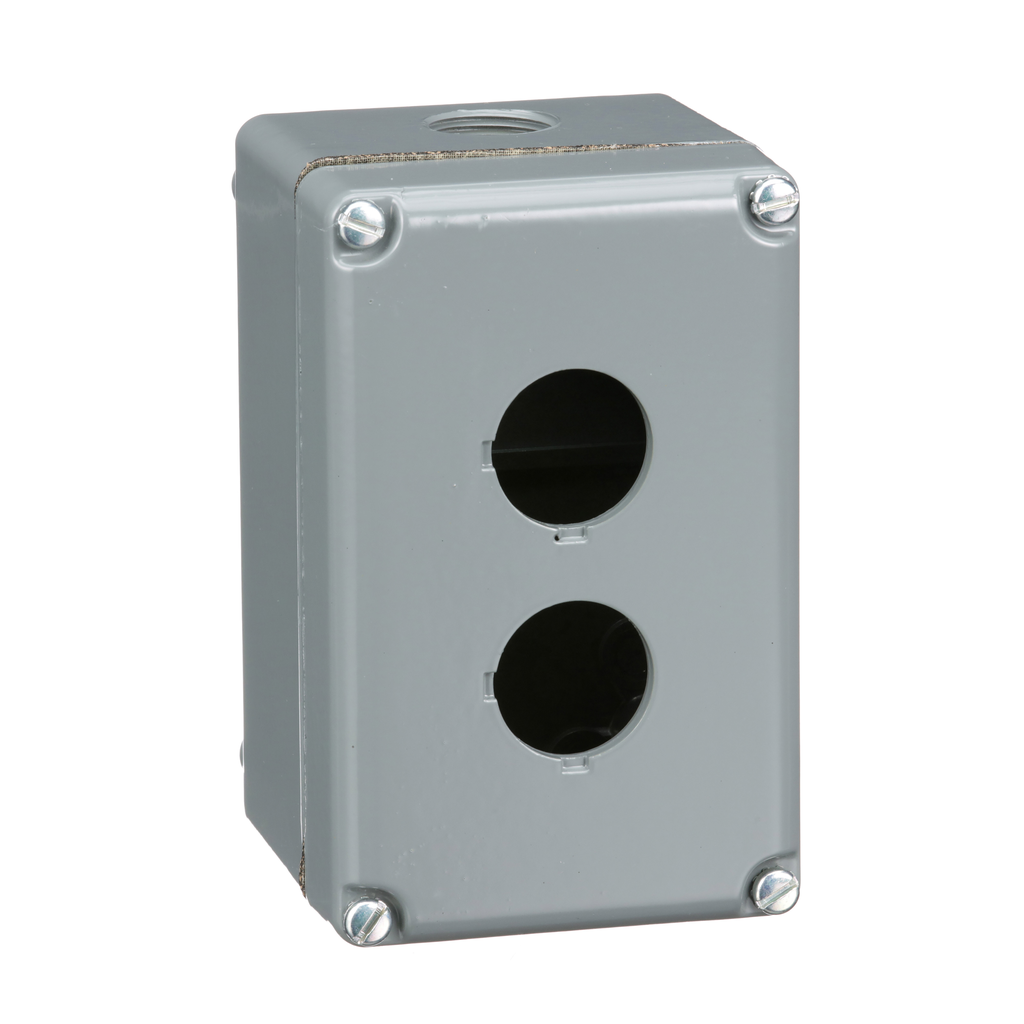

The Square D 9001KY2 is a robust push button control station enclosure made of cast aluminum. It is designed for use in heavy-duty industrial applications. Its two thirty millimeter holes allow for various push buttons and control elements to be installed. This enclosure meets NEMA four and thirteen standards, indicating it is suitable for environments that require protection against water, dust, and corrosive elements.

• Durable cast aluminum construction
• Compatible with a broad range of push button operators
• Meets NEMA ratings for challenging environments

Product Highlights

This control station is designed for use with thirty millimeter control and signaling units, making it versatile for different applications in industrial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Size: 30MM
• Material: Aluminum
• Weight: 2.82 lb
• Country of Origin: Mexico
• Warranty Length: 18 months
• Operating Temperature: -25 to +70 degrees C
• Storage Temperature: -40 to +70 degrees C
• Number of Cut-outs: 2 cut-outs
