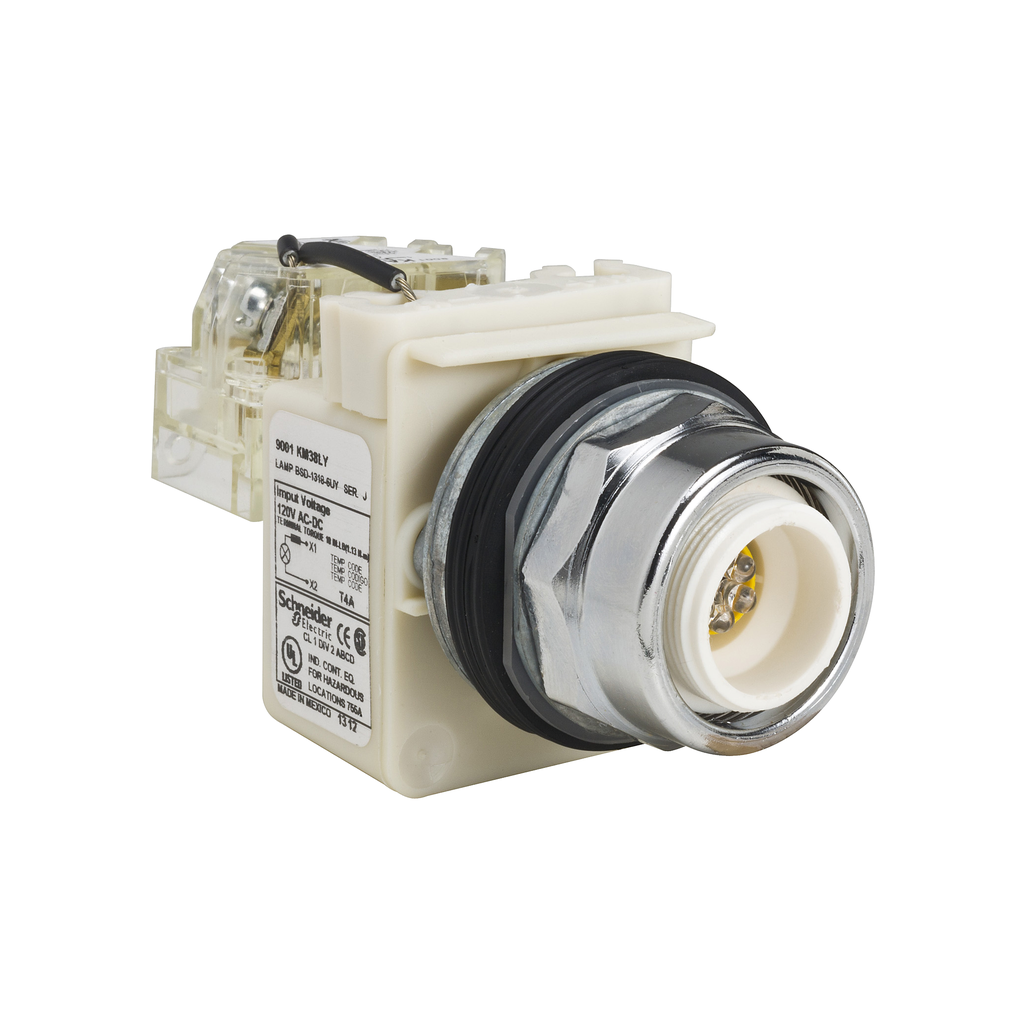

Square D 9001KT38LY push to test pilot light 120 VAC Yellow Lens no lens

Product Description

The Square D push to test pilot light, model 9001KT38LY, operates at 120 VAC. It features a light module with a yellow LED and is designed for use in industrial applications. The push button is suitable for heavy industries such as petrochemical, metallurgy, mining, and automotive. It mounts in a one point eighteen inch round hole and includes a die cast ring nut for secure installation.

• Applies to NEMA Types 1, 2, 3, 3R, 4, 6, 12 and 13
• Contains one 9001KA1 contact block with normally open and normally closed configurations
• UL and CSA certified

Product Highlights

This push-to-test feature allows users to check the lamp's functionality easily. A yellow or amber lens is recommended for optimal use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001KT38LY
• Voltage: 120 VAC/VDC
• Light Source: Yellow LED
• Fixture Type: No Lens
• Bezel Material: Metal
• Warranty Length: 18 months
• Country of Origin: Mexico
• Environmental Conditions: NEMA 1/2/3/3R/4/6/12/13
