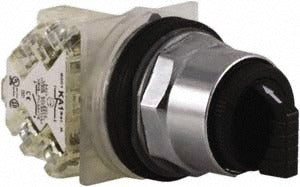

Square D 9001KS42BH13 Selector Switch 3 Position 600V

Product Description

The SQUARE D 9001KS42BH13 is a 3-position maintained selector switch designed for industrial control panel applications. Rated at 600 volts AC and 10 amps, it provides reliable operator-level control of equipment states such as off, hand, and auto configurations. The black, nonilluminated operator fits a standard 30 mm panel cutout and features a chrome bezel for a durable, professional finish. It is installed by licensed electricians and control panel builders working on machine control, motor control centers, and similar industrial systems. The switch carries RoHS compliance and ships as a single unit.

The 9001KS42BH13 is suited for use in commercial and industrial control panels where a maintained 3-position selector is required. Maintained operation means the switch holds its selected position until physically moved, making it appropriate for mode selection duties such as manual and automatic circuit switching. The 30 mm mounting hole diameter is a globally recognized standard format, common across a wide range of enclosures and panel cutouts. This switch is a component-only operator and does not include contact blocks, which are ordered separately based on the required contact configuration.

Key Features

• 3-position maintained operation holds selected position without spring return
• Rated 600 volts AC and 10 amps for industrial control circuit use
• Standard 30 mm panel cutout mounting diameter
• Black nonilluminated operator with chrome bezel finish
• RoHS compliant construction
• Selector switch operator only — contact blocks sold separately

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30 mm industrial selector switch assemblies requiring a 3-position maintained black nonilluminated operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting the operator or making any contact block connections. Verify the panel cutout diameter is 30 mm before installation. Contact blocks must be selected and ordered separately to complete the switch assembly.
