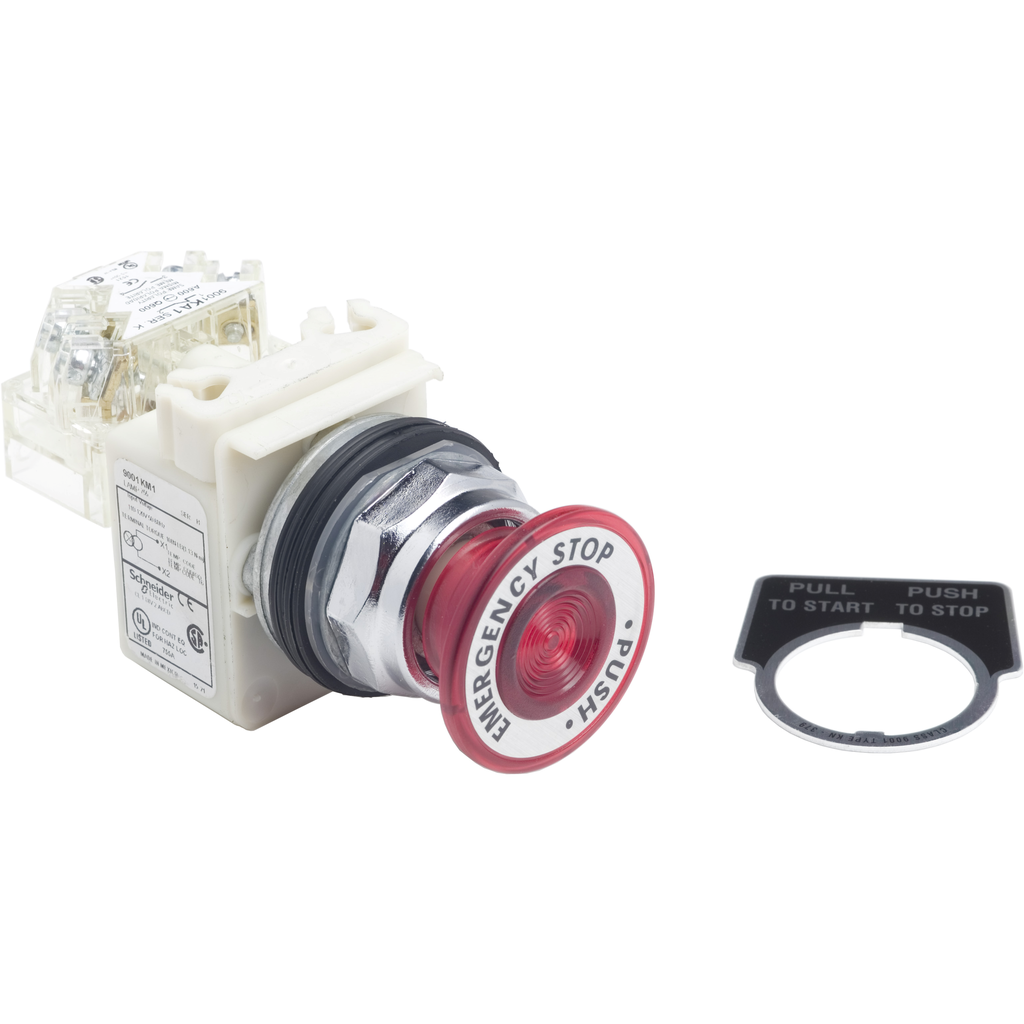

Square D 9001KR9P1R05H13 Push Button 10 Amp 600 Volt 30 mm

Product Description

The Square D 9001KR9P1R05H13 is a push button switch that operates up to 10 amps at 600 volts. This switch features a mushroom design, allowing for quick activation, which is essential for various machinery and processes. The construction ensures resistance to impact, dust, water, and vibration, making it suitable for demanding environments. It fits standard 30 mm panel cut-outs, simplifying installation and wiring with control circuits.

• Rated for 10 amps at 600 volts
• Resistant to dust, water, and vibration
• Easy installation in standard 30 mm cut-outs

Product Highlights

Designed for enhanced operator ergonomics and visibility, this push button is easily recognizable due to its shape.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9001KR9P1R05H13
• Voltage: 600 Volt
• Amperage: 10 Amp AC-15, 10 Amp DC-13
• Size: 30 mm
• Action: Standard
• Country of Origin: Mexico
• Warranty Length: 18 months
• Enclosure Rating: NEMA 1/2/3/3R/4/6/12/13
• Contact Configuration: 1 NO - 1 NC
