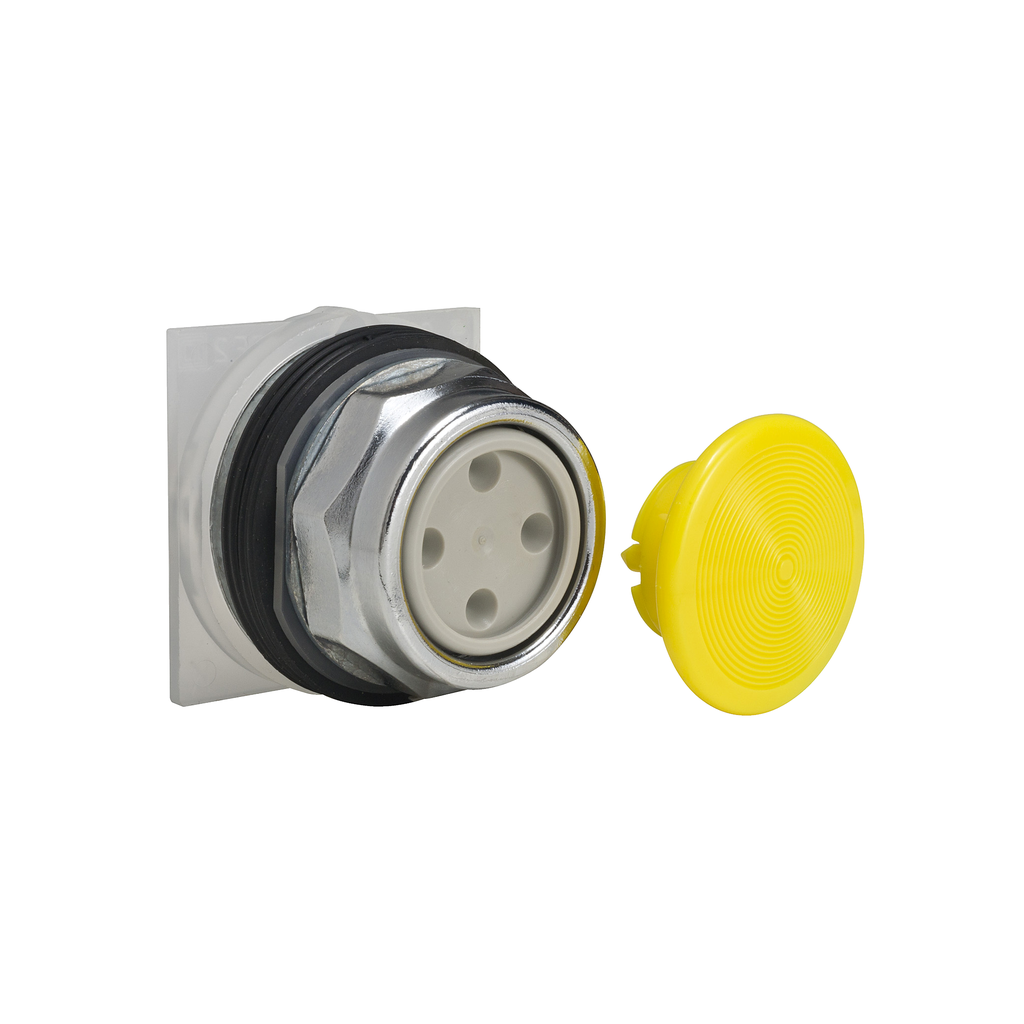

Square D 9001KR4YH13 30 mm 10 Amp 600 VAC Push Button

Product Description

The Square D 9001KR4YH13 is a 30 mm push button switch designed for heavy industry applications. This device operates at a voltage of six hundred volts and can handle ten amps of current. It is widely used in sectors such as petrochemical, mining, metallurgy, oil and gas, wastewater treatment, and automotive manufacturing.

• Mounts in a one point one eight inch round hole.
• Non-illuminated mushroom operator with a yellow snap-in button.
• UL listed and CSA certified for various environmental conditions.

Product Highlights

The 9001K series offers a robust solution for control in harsh conditions. It features dual contact blocks and can connect two wires from twelve to twenty-four AWG.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9001KR4YH13
• Voltage: 600 Volt
• Amperage: 10 Amp
• Actuator: Snap-in plastic mushroom (thirty-five mm)
• Contact Configuration: 1 NO - 1 NC
• Enclosure Rating: NEMA 1/2/3/3R/4/6/12/13
• Warranty Length: 18 months
• Country of Origin: Mexico
