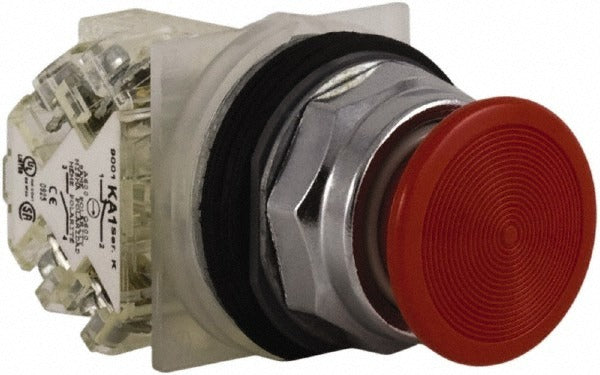

Square D 9001KR4RH13 Momentary Push-button Switch 600V

Product Description

The SQUARE D 9001KR4RH13 is a heavy-duty momentary push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter and a red, round metal mushroom-head operator with a non-illuminated extended profile. Rated at 600 volts and 10 amps, this switch offers a NO/NC contact configuration, allowing it to serve both normally open and normally closed circuit functions in a single unit. The screw-clamp terminal type simplifies field wiring. It carries a NEMA 4 and 13 rating, providing dusttight, oiltight, and watertight protection suited to demanding environments. Licensed electricians and industrial control technicians are the primary installers of this device.

The 9001KR4RH13 is intended for use in industrial and commercial control panels, machine tool wiring, motor control circuits, and operator interface stations. The momentary operation means the switch returns to its original position when released, making it appropriate for start, stop, jog, and emergency-control functions. Its robust metal bezel and sealed construction make it well suited for wash-down environments, manufacturing floors, and outdoor enclosures where moisture and contaminants are present. Package quantity is one unit per order.

Key Features

• Momentary (MO) operation with NO/NC contact configuration for flexible circuit integration
• Red round mushroom-head extended operator for high-visibility and positive actuation
• Metal bezel construction for durability in industrial environments
• NEMA 4 and 13 rated — dusttight, oiltight, and watertight
• Screw-clamp terminals for secure, tool-accessible field wiring
• CE Marked, CSA Certified, and UL Listed for broad compliance requirements

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm industrial control panel cutouts in commercial and industrial control applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Screw-clamp terminals require a small flat-blade screwdriver for proper termination. Verify that the panel enclosure rating matches or exceeds the NEMA 4 and 13 designation of this switch to maintain the sealed integrity of the assembly.
