Square D 9001KR4R05 Push-button Head Harmony 9001K Metal 35mm

Product Description

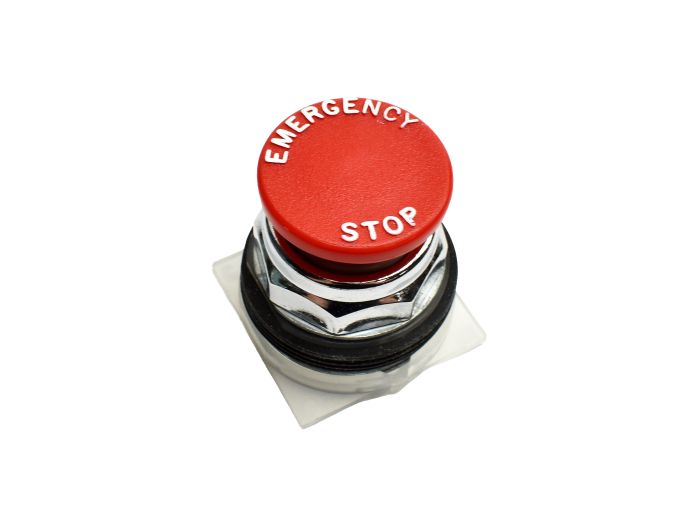

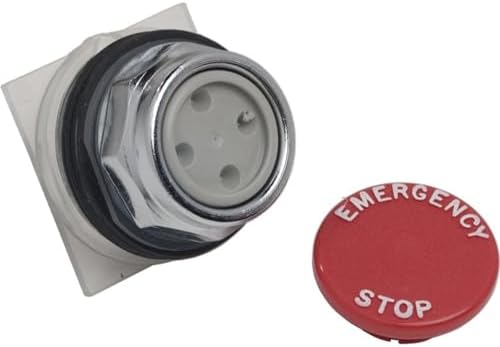

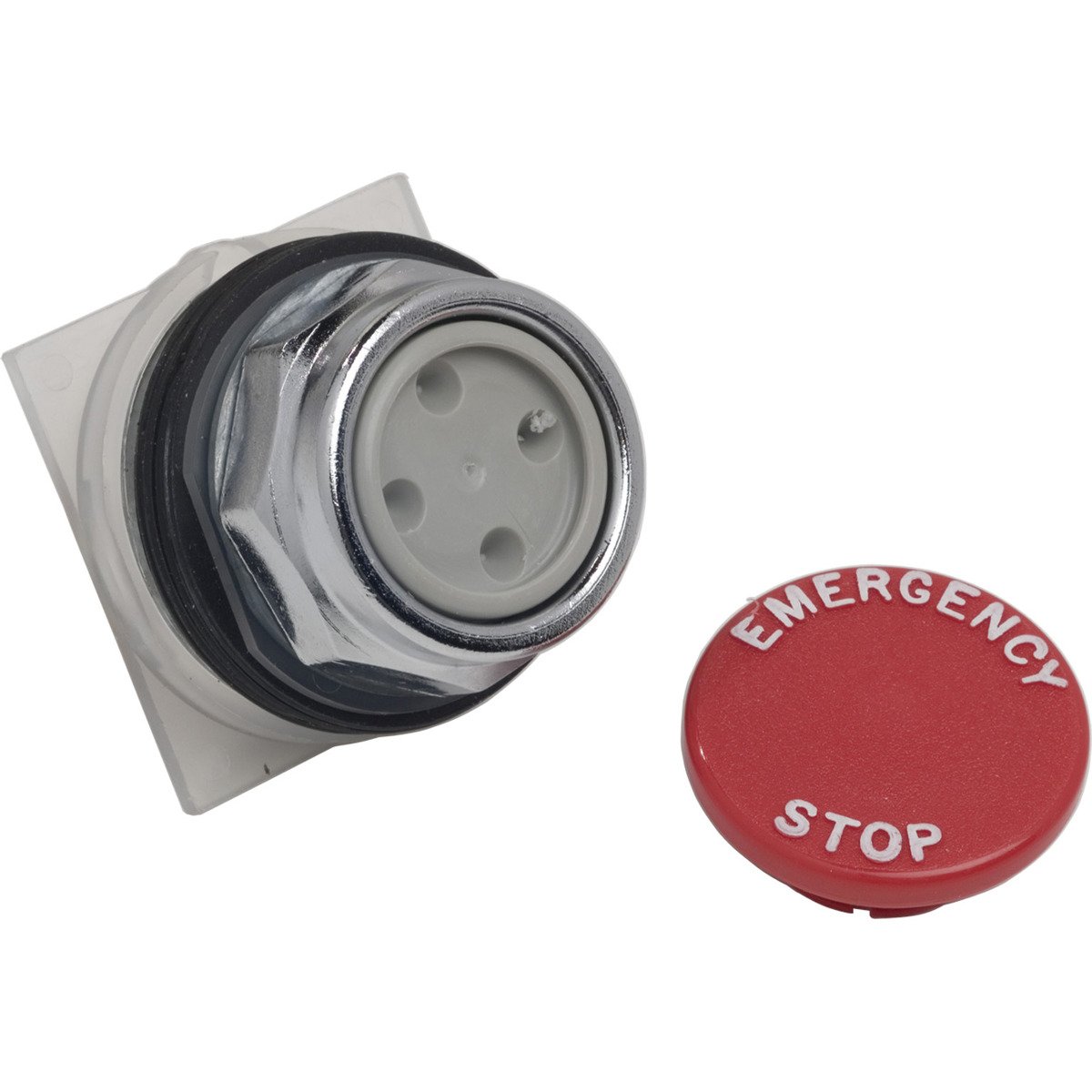

The SQUARE D 9001KR4R05 is a 30mm pushbutton operator from the Harmony 9001K series. This metal push-button head features a snap-in plastic mushroom that is 35mm with spring return. It is designed for use with Harmony 9001K series components in various industrial applications.

• Metal construction for durability
• 35mm snap-in plastic mushroom head
• Spring return mechanism

Product Highlights

The SQUARE D 9001KR4R05 is a robust and reliable push-button head designed for industrial applications requiring a durable and responsive operator.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001KR4R05
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9001KR4R05
• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901033837
• GTIN: 00785901033837
• Item model number: 9001KR4R05
• Item Package Quantity: 1
• Number Of Pieces: 1
• Batteries Required?: No
• Action: SPRING RETURN
• Actuator: RED FLUSH,SPRING RETURN
• Bezel Material: Metal
• Contact Configuration: NO CONTACT BLOCKS
• Contact Rating: AC15 - DC13
• Enclosure: NEMA 1/2/3/3R/4/6/12/13
• Indicator: RED
• Size: 1.18 in
• Type: Head for spring return push-button
• Sub Brand: 9001K
• Environmental Conditions: WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
• Family Series: Square D Switches
• Description: SWITCH
• For Use With: Harmony 9001K Series
• Shape: Mushroom
• Legend: EMERGENCY STOP
• Approvals: CE, CSA, UL
• Primary brand: Schneider Electric
• Secondary brand: Square D
• Main function: Push-button (emergency)
• Product series / family name: Harmony
• Sub-range name: 9001K
• Functions: Flush mushroom head pushbutton/push-button/PB with snap-in head
• Degree of protection: IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
• Material: Metal (chromium-plated) (bezel)
• Actuator color: Red
• Mechanical durability (at no load): 5 000 000 operations
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE, UL508, CSA C22.2 No 14, RoHS, EN60947-1, EN60947-5-1, EN60947-5-4, JISC4520, JISC852, IEC60068-2-6, IEC60068-2-27, IEC61140
• Class: Insulation Class II
• Diameter (mm): 30 mm, (Mushroom head) 35 mm
• Diameter (in): 1.18 in, (Mushroom head) 1-3/8" / 1.375 in
• Operating mode: Spring-return (impulse / momentary)
