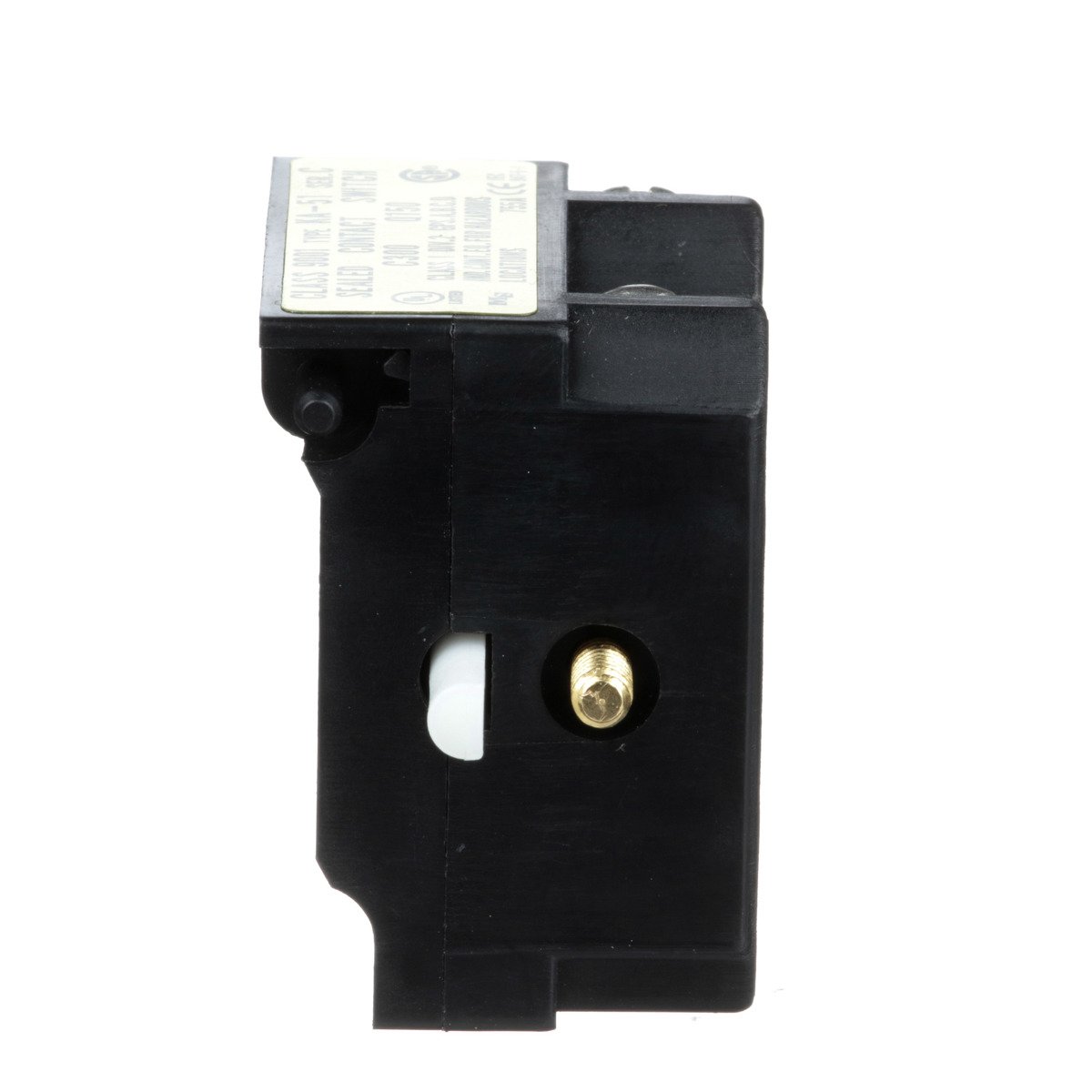

Square D 9001KA51 240 VAC 3 Amp 1NO 1NC Silver Alloy Screw Clamp Terminal Push Button Contact Block

Product Description

The Square D 9001KA51 is a push button contact block designed for use in industrial environments. This contact block operates at 240 VAC and supports a maximum of three amps. It features one normally open (1NO) and one normally closed (1NC) configuration, making it suitable for various applications in control systems.

• Meets IEC, UL, and CSA standards
• IP 66 and NEMA 4 rated for protection against dust and water
• Easy installation with screw clamp terminals

Product Highlights

The 9001KA51 contact block is part of a series renowned for durability and adaptability in industrial settings.

Product Information

Standard Information

• Catalog Number: 9001KA51
• Brand: Square D

Technical Specifications

• Voltage: 240 VAC / 115 VAC / VDC
• Amperage: 3 Amp
• Contact Configuration: 1 NO + 1 C/O
• Operating Temperature: -25 to 70 degrees Celsius
• Weight: 0.10 lb
• Contact Material: Silver Alloy
• Country of Origin: Japan
• Warranty Length: 18 months
