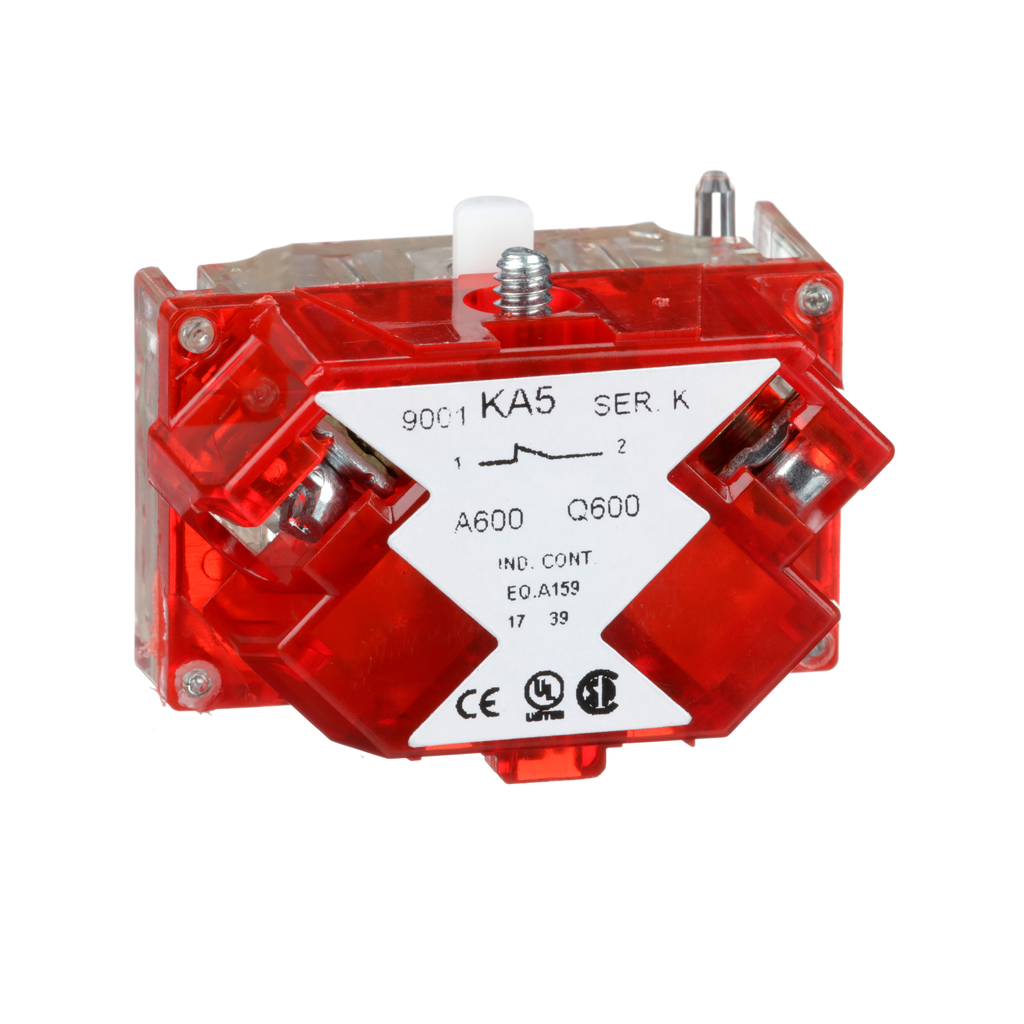

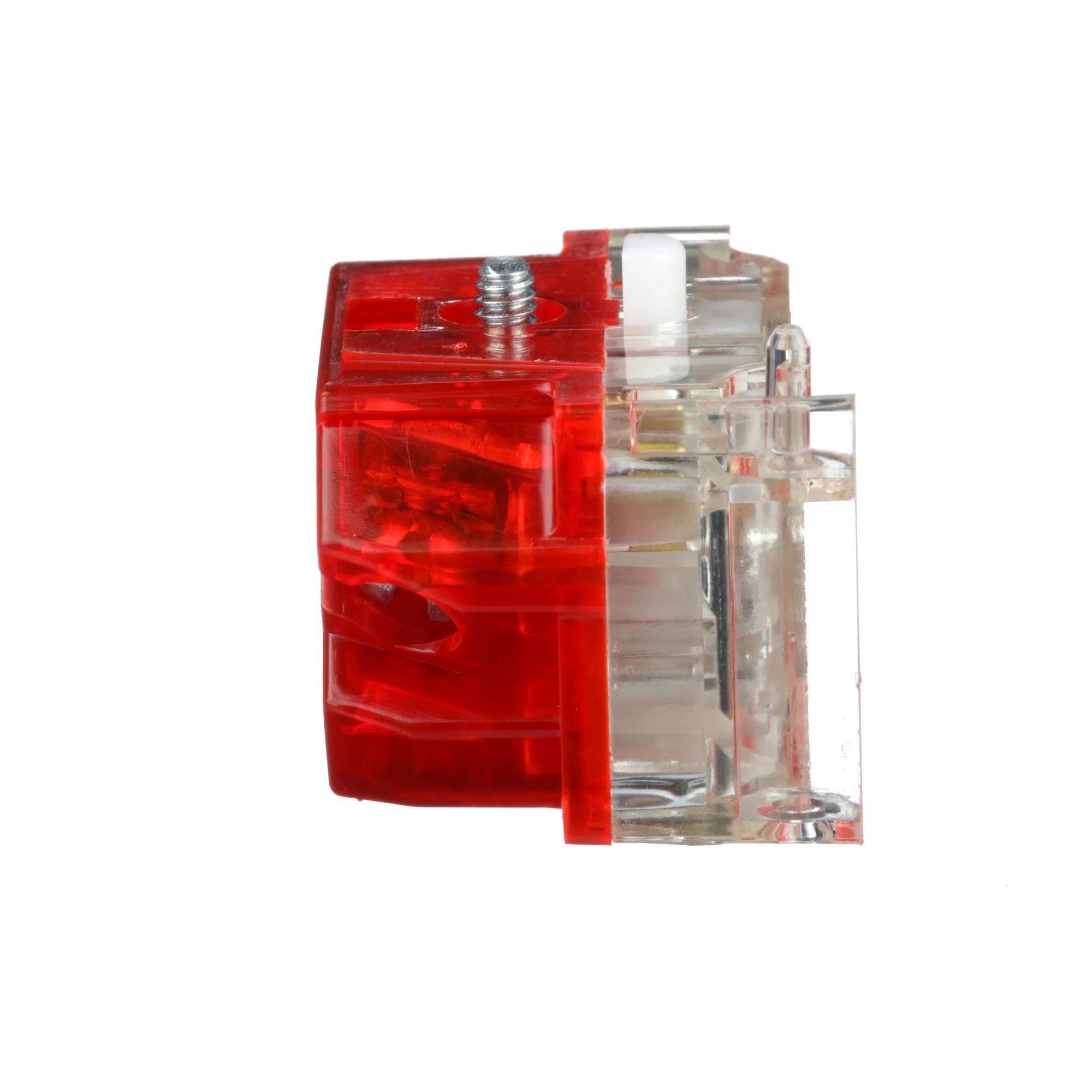

Square D 9001KA5 Contact Block 600 VAC 10 Amp 1NC Replacement MPN

Product Description

The Square D 9001KA5 is a contact block designed for use in industrial applications up to six hundred volts and ten amps. This device features a late-breaking action and is ideal for applications requiring precise control. It is designed for compatibility with various push button operators and includes a robust screw clamp terminal connection for easy wiring.

• Rated at ten amps and six hundred volts
• Includes a one normally closed (1 NC) contact configuration
• Suitable for a variety of industrial applications

Product Highlights

The durable construction of the 9001KA5 ensures reliability in demanding environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001KA5
• Voltage Rating: 600 Volt
• Amperage Rating: 10 Amp
• Contact Configuration: 1 NC
• Connection Type: Screw clamp terminals
• Country of Origin: Mexico
• Certification Standards: CSA C22.2 No 14, IEC 60947-1
• Weight: 0.05 lb
