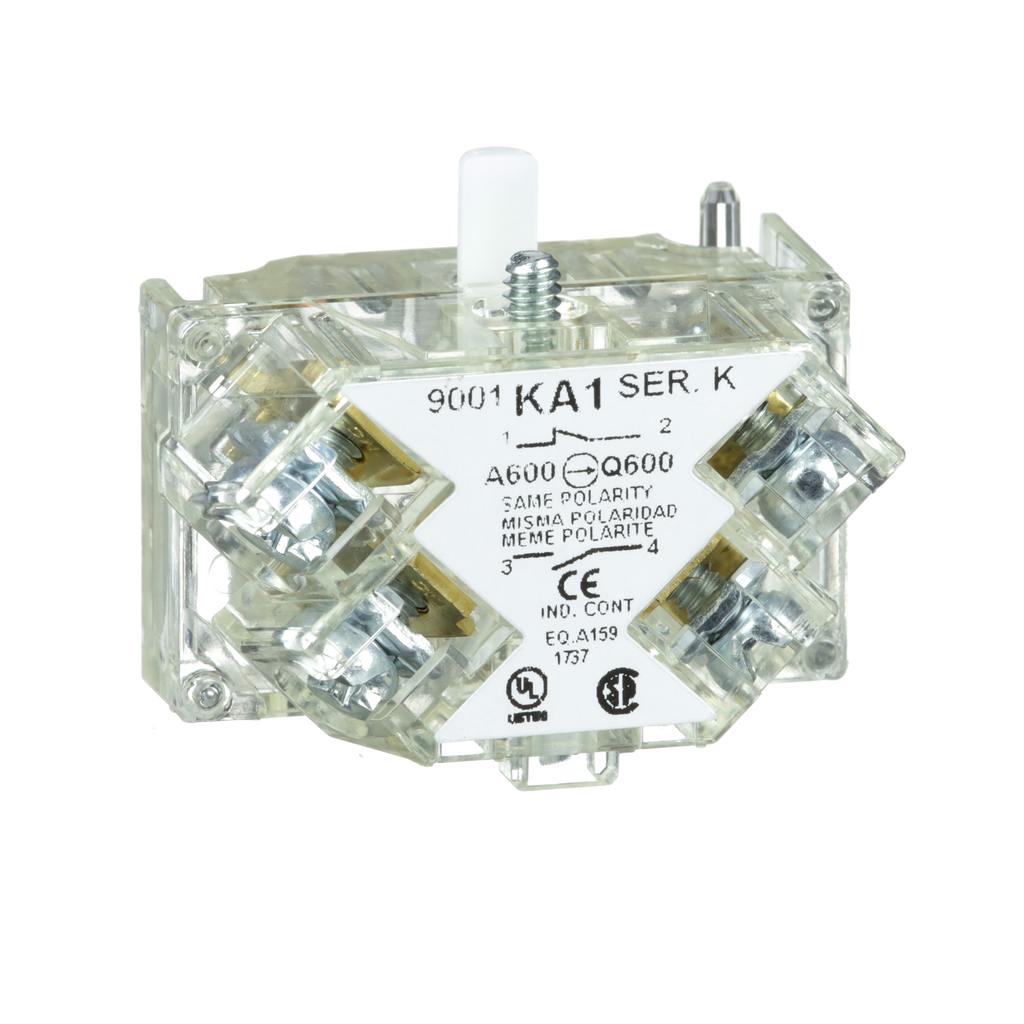

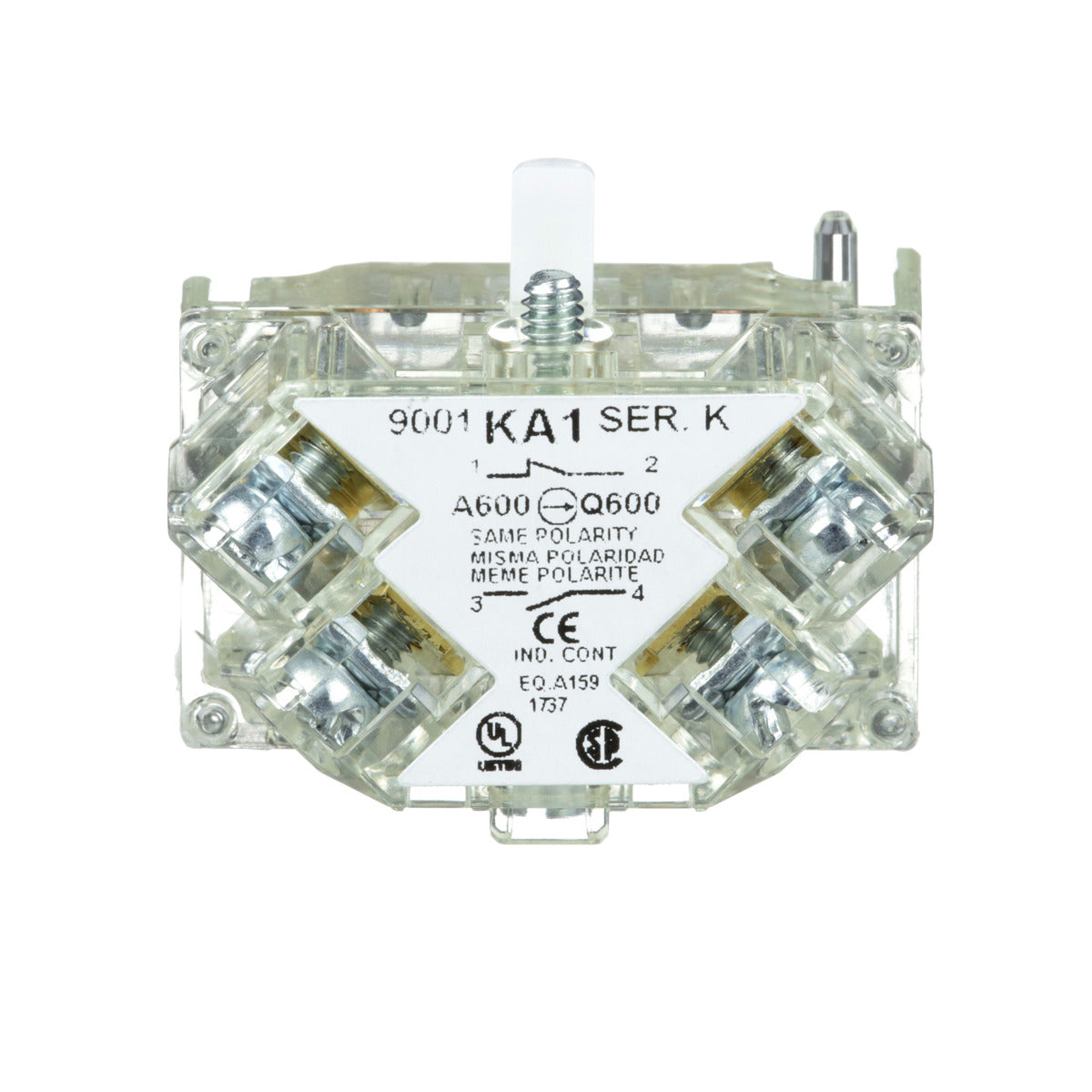

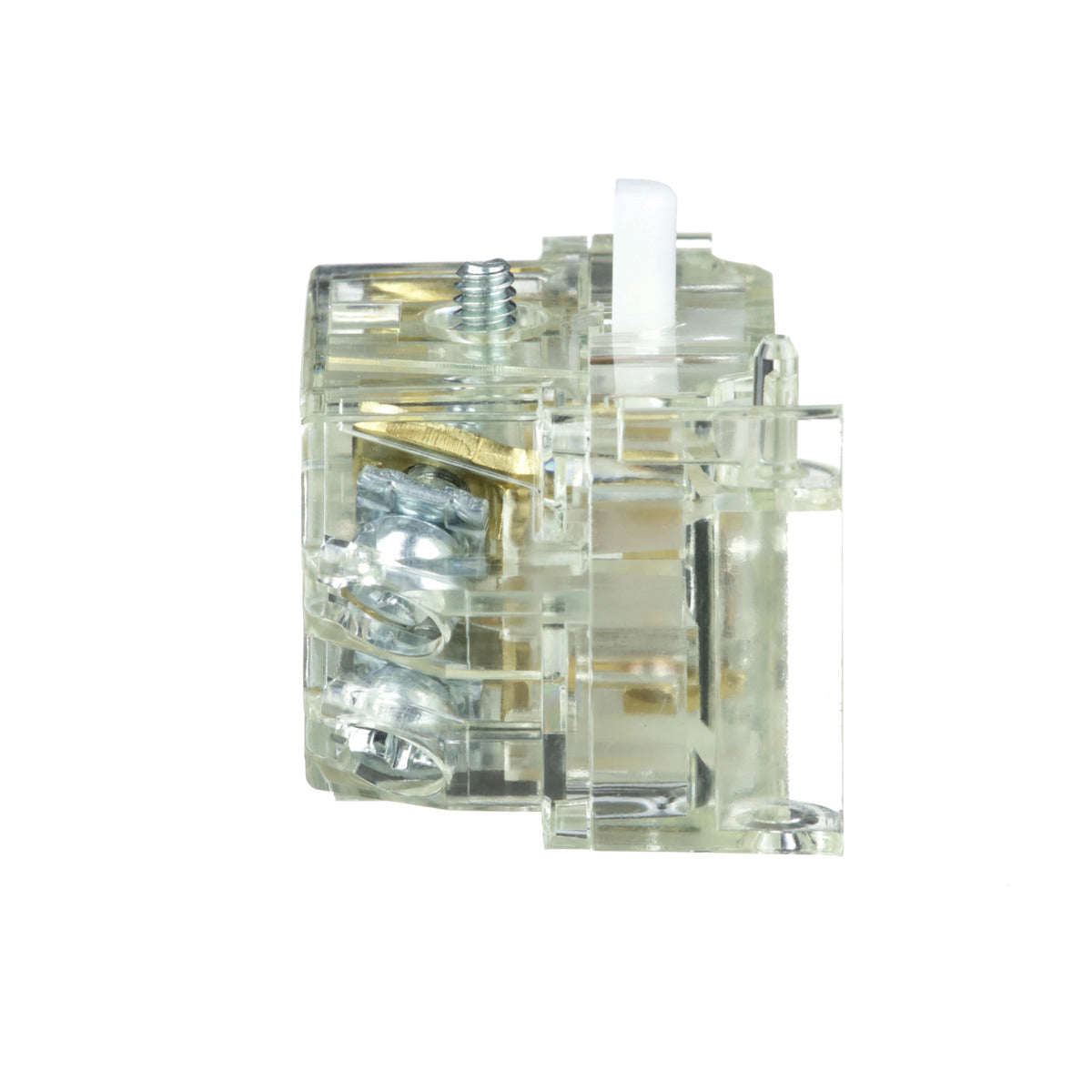

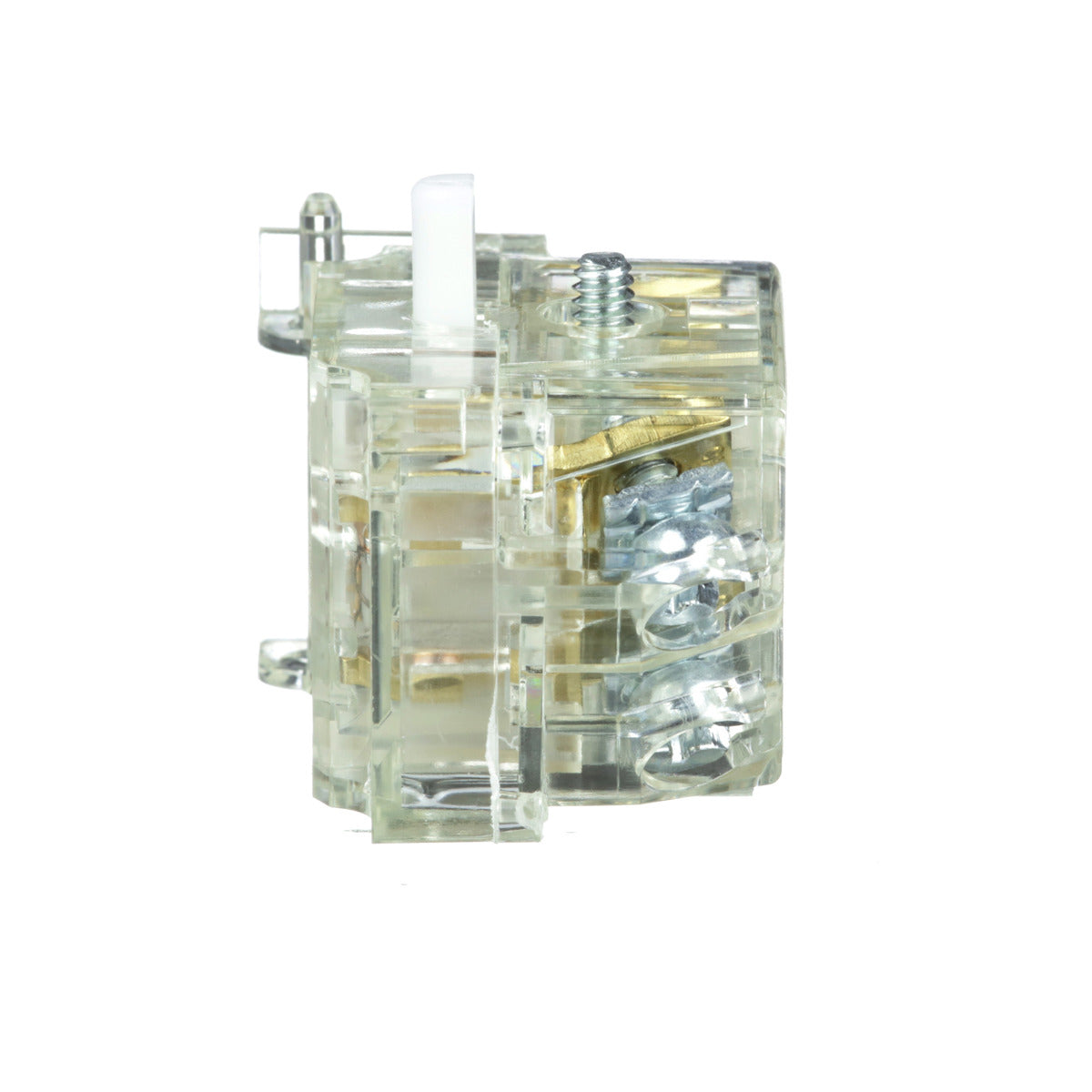

Square D 9001KA1 Pushbutton Contact Block 600 VAC 10 Amp 1NO 1NC

Product Description

The Square D 9001KA1 pushbutton contact block is designed for use in various industrial environments. This contact block operates at 600 volts and supports a current rating of ten amps. It features one normally open contact and one normally closed contact. The screw-clamp terminals allow for quick installation and secure connections.

• Compatible with Square D pushbuttons
• Durable construction with silver alloy contacts
• IP20 protection rating, ensuring safety from accidental contact

Product Highlights

This product offers reliability and functionality in machine control applications.

Product Information

Standard Information

• Product ID: 56974
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 Volt
• Amperage: 10 Amp
• Contact Configuration: 1 NO - 1 NC
• Weight: 0.06 lb
• Operating Temperature: -25 to 70 degrees C
• Certifications: NEMA, UL 508
• Country of Origin: Mexico
• Warranty: 18 months
