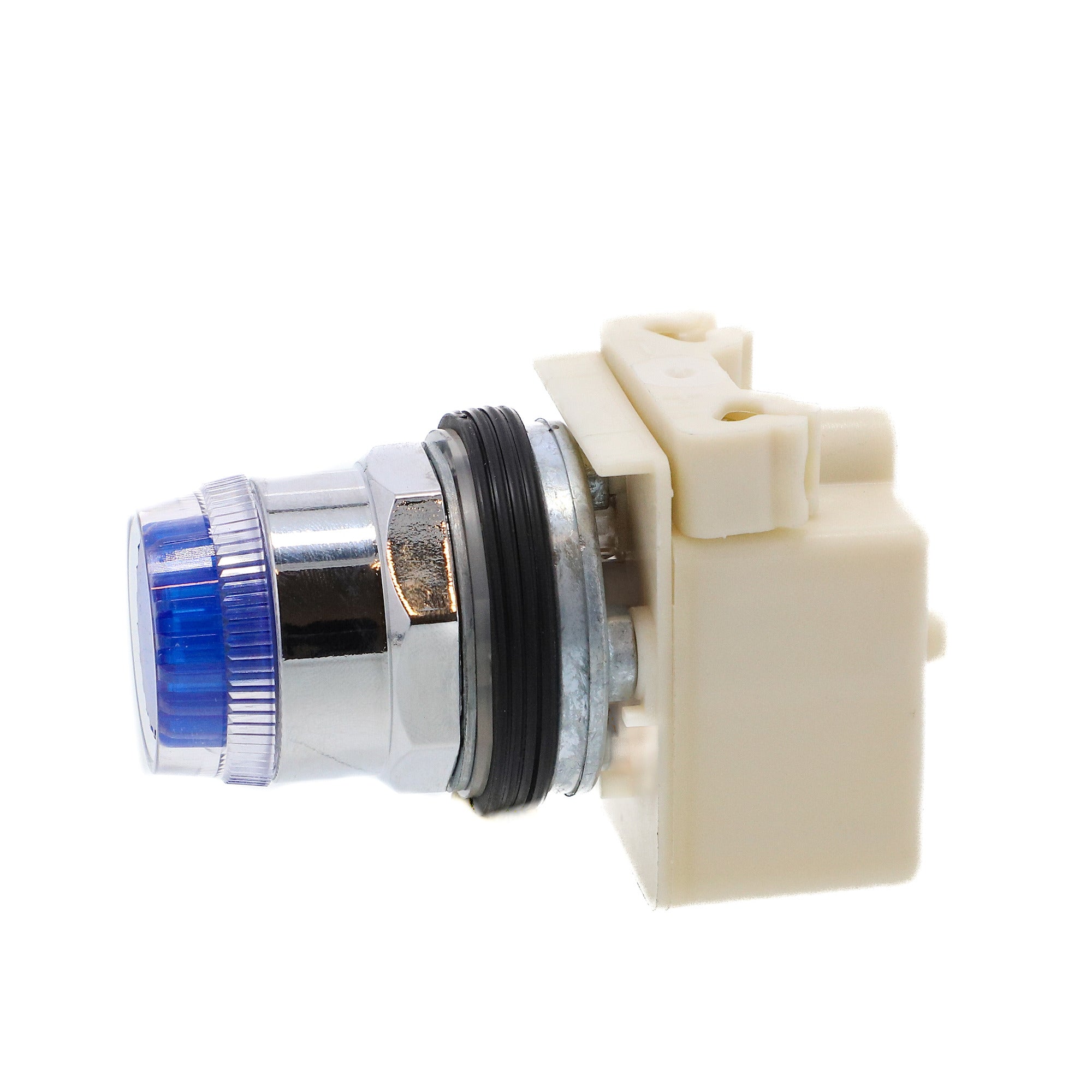

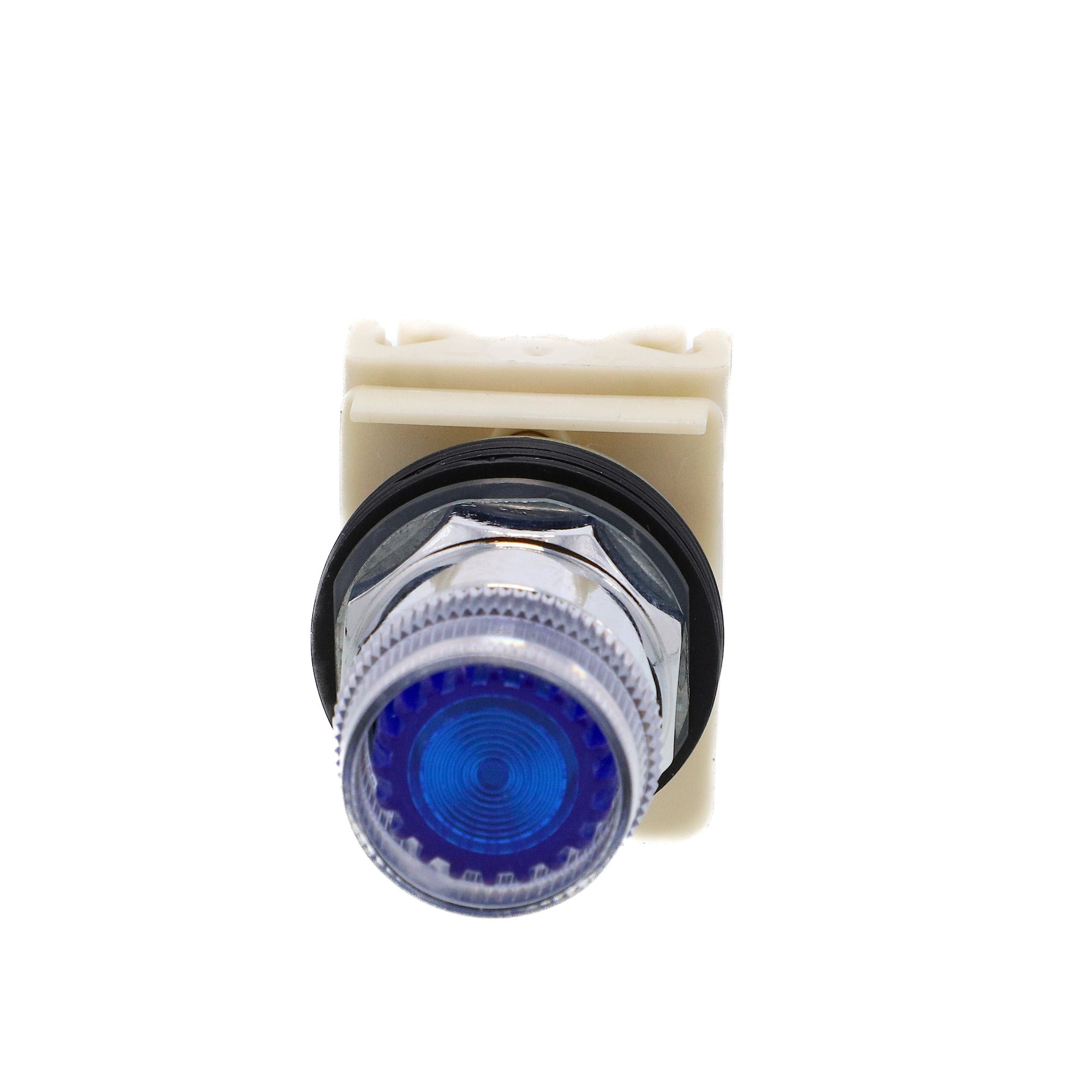

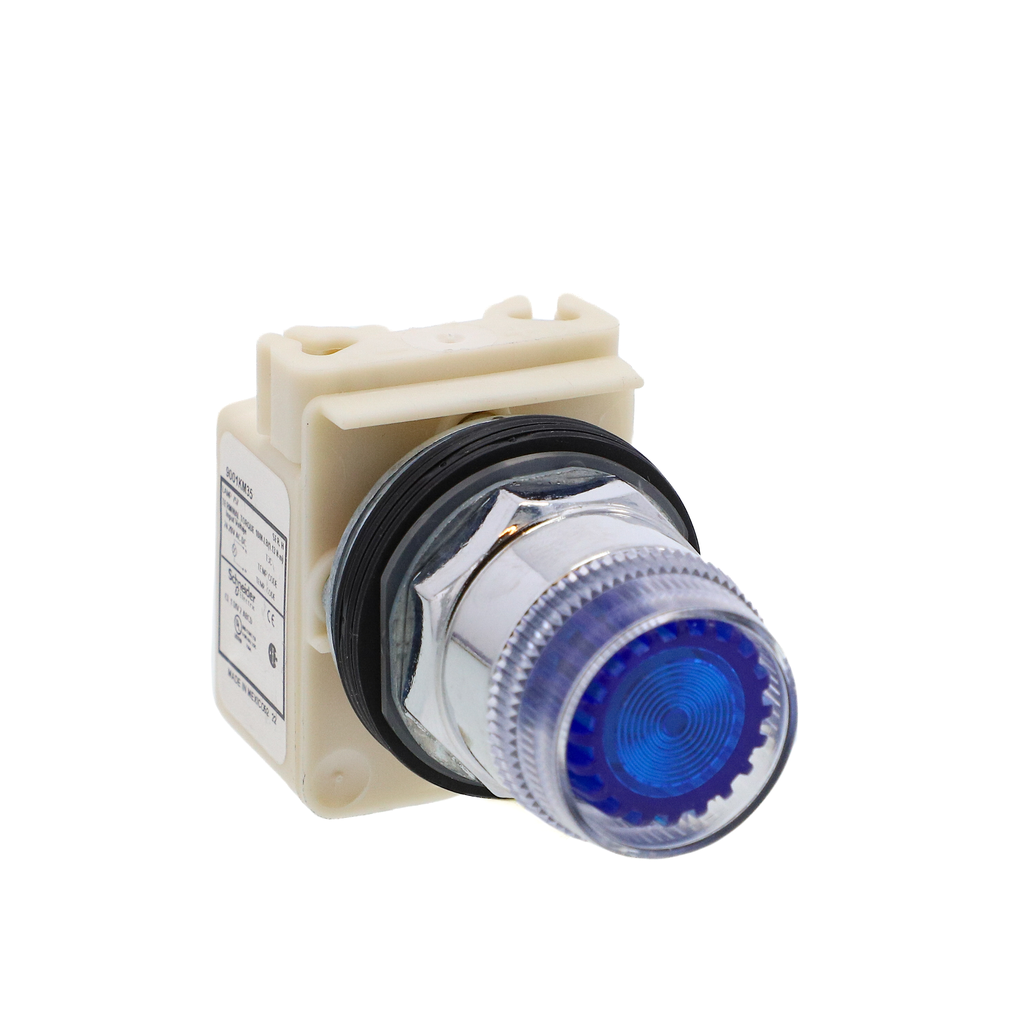

Square D 9001K1L35L Illuminated Push Button Operator 30mm

Product Description

The Square D 9001K1L35L is a momentary illuminated push button operator designed for control and automation applications. This product features a full guard design and includes a chromium-plated metal bezel. It operates on 24V AC/DC and comes equipped with an integral LED for clear visibility. This push button fits standard thirty millimeter panel cut-outs and is suitable for harsh environments thanks to its IP66 rating, which guarantees protection against dust and water ingress. The ergonomic design makes it easy to operate from a distance, ensuring a reliable interface for machine control.

• Modular design for easy installation.
• Impact, dust, and vibration resistant.
• Electrical ratings of up to 600 volts.

Product Highlights

Ideal for both indoor and outdoor use, this push button is suitable for applications that require high durability. Its metal construction ensures longevity even in challenging conditions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001K1L35L
• Type: Head for Spring Return Push-Button
• Size: 30 mm
• Voltage: 600 Volt
• Actuator: Blue Flush, Spring Return
• Enclosure: NEMA 1/2/3/3R/4/6/12/13
• Indicator: Blue
• Bezel Material: Metal
