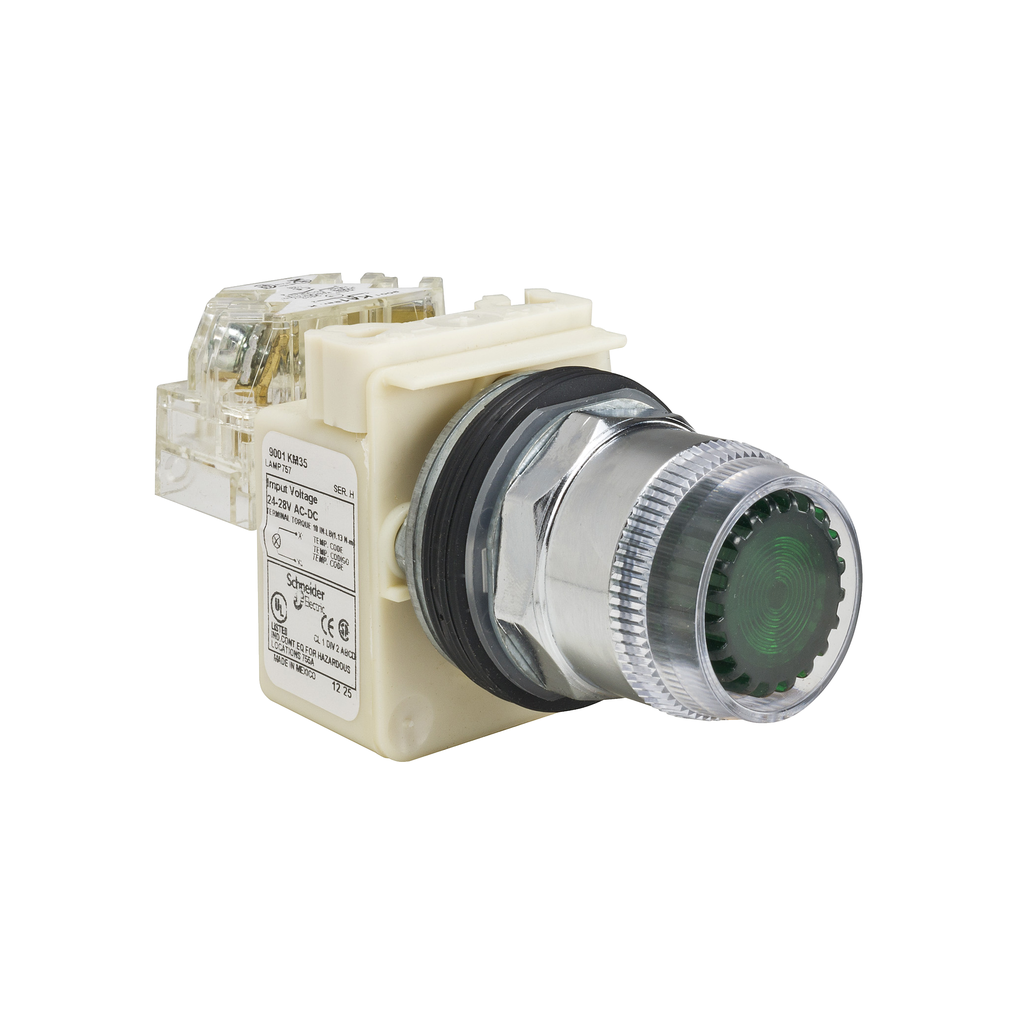

Square D 9001K1L35GH13 30 mm 600 VAC Momentary 1NO 1NC Green Body Metal Bezel Illuminated Push Button

Product Description

Square D offers the 9001K1L35GH13 illuminated push button. This product features a standard push button design with one normally open (NO) and one normally closed (NC) contact. The push button is designed for a voltage range of twenty-four to twenty-eight volts AC/DC. It provides a visual interface for controlling machinery with its illuminated head.

• Integrated LED for clear visibility
• Metal bezel for added durability
• IP66 rating for dust and water resistance

Product Highlights

This product is ideal for use in industrial settings. The ergonomic design allows for easy installation in standard thirty millimeter diameter cut-outs. The push button is suitable for harsh environments due to its high resistance to impact, dust, and water.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001K1L35GH13
• Type: Illuminated push-button
• Color: Green
• Voltage: 24 to 28 Volt AC/DC
• Actuator: Standard pushbutton
• Amperage: 10 Amp
• Enclosure: NEMA 1/2/3/3R/4/6/12/13
• Indicator: BA 9S
• Warranty: 18 mths
• Country of Origin: Mexico
