Square D 9001BG303 Control Station 5 Amp 600 Volt Type B

Product Description

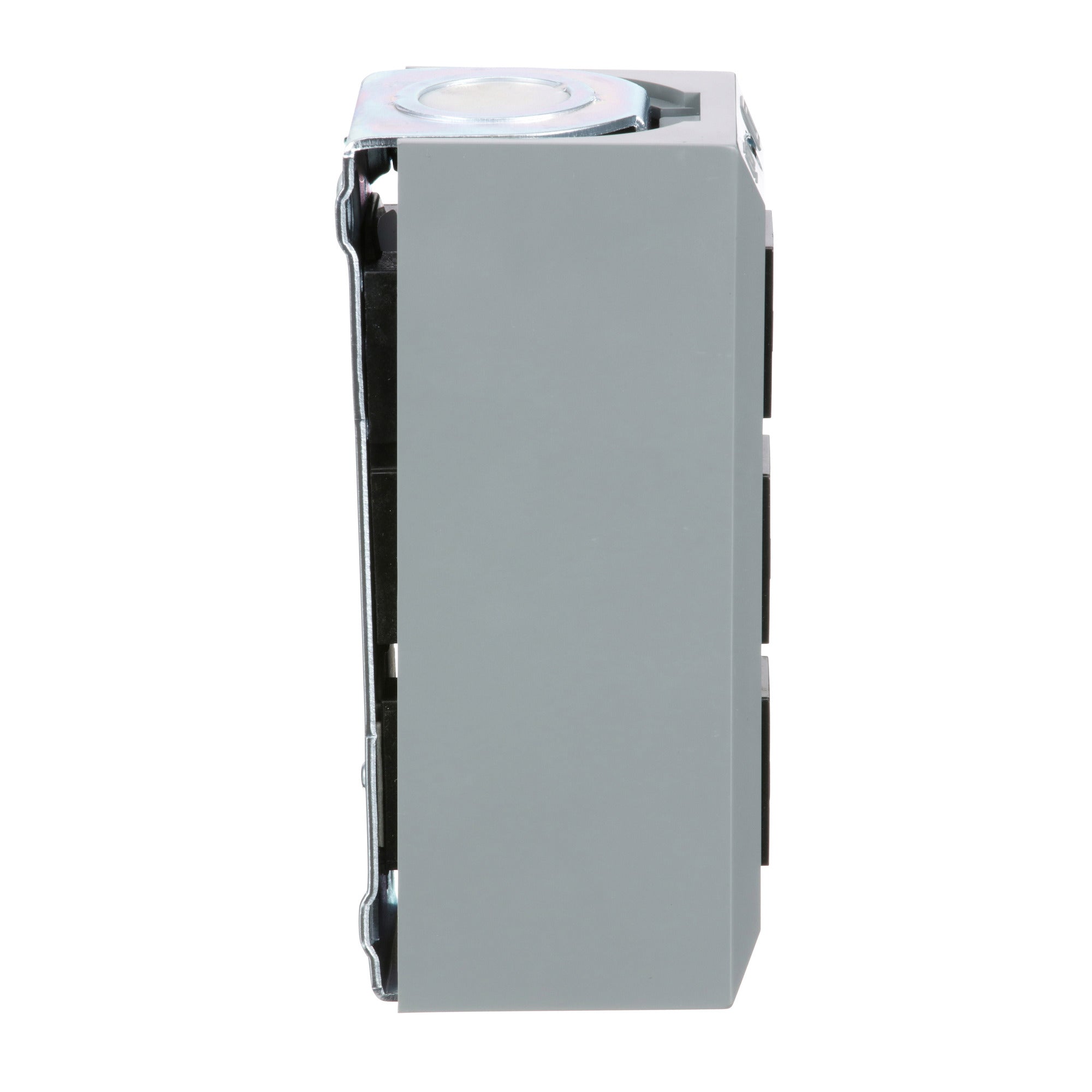

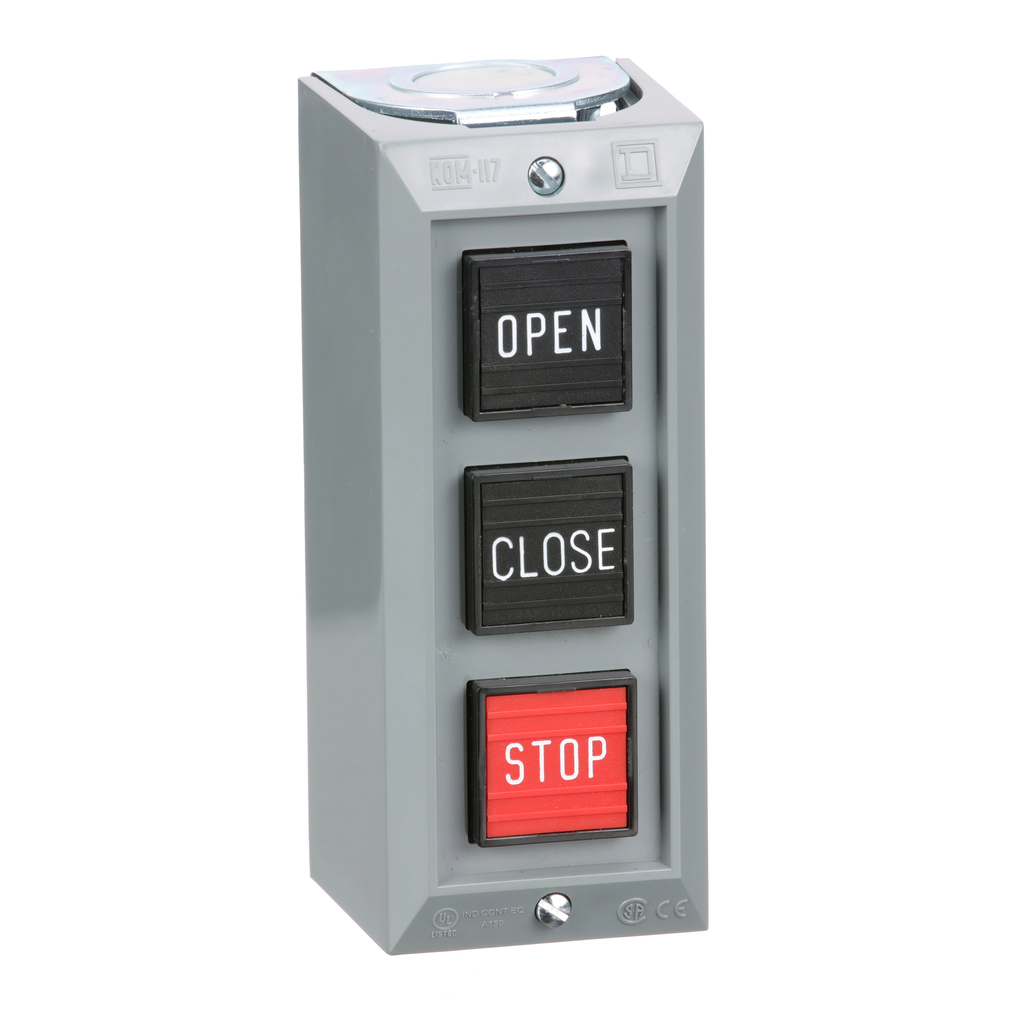

The Square D 9001BG303 is a complete control station designed for surface mounting. It includes an enclosure, operators, and contacts. This station features three momentary push buttons: OPEN, CLOSE, and STOP. The OPEN and CLOSE buttons both include normally open and normally closed contacts, while the STOP button has a normally closed contact.

• Rated for five amps at six hundred volts AC.
• NEMA 1 rated for indoor use.
• UL Listed and CSA certified for safety.

Product Highlights

This control station supports a B600 rating, suitable for inductive loads up to 360 VA. It also features P600 ratings for direct current loads. The classic screw clamp connections ensure secure connections to control circuits.

Product Information

Standard Information

• Catalog Number: 9001BG303
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Complete Control Station
• Voltage: 600 Volt
• Amperage: 5 Amp
• Enclosure: NEMA 1
• Warranty Length: 18 months
• Country of Origin: Mexico
• Environmental Conditions: Indoor, Standard Environment
