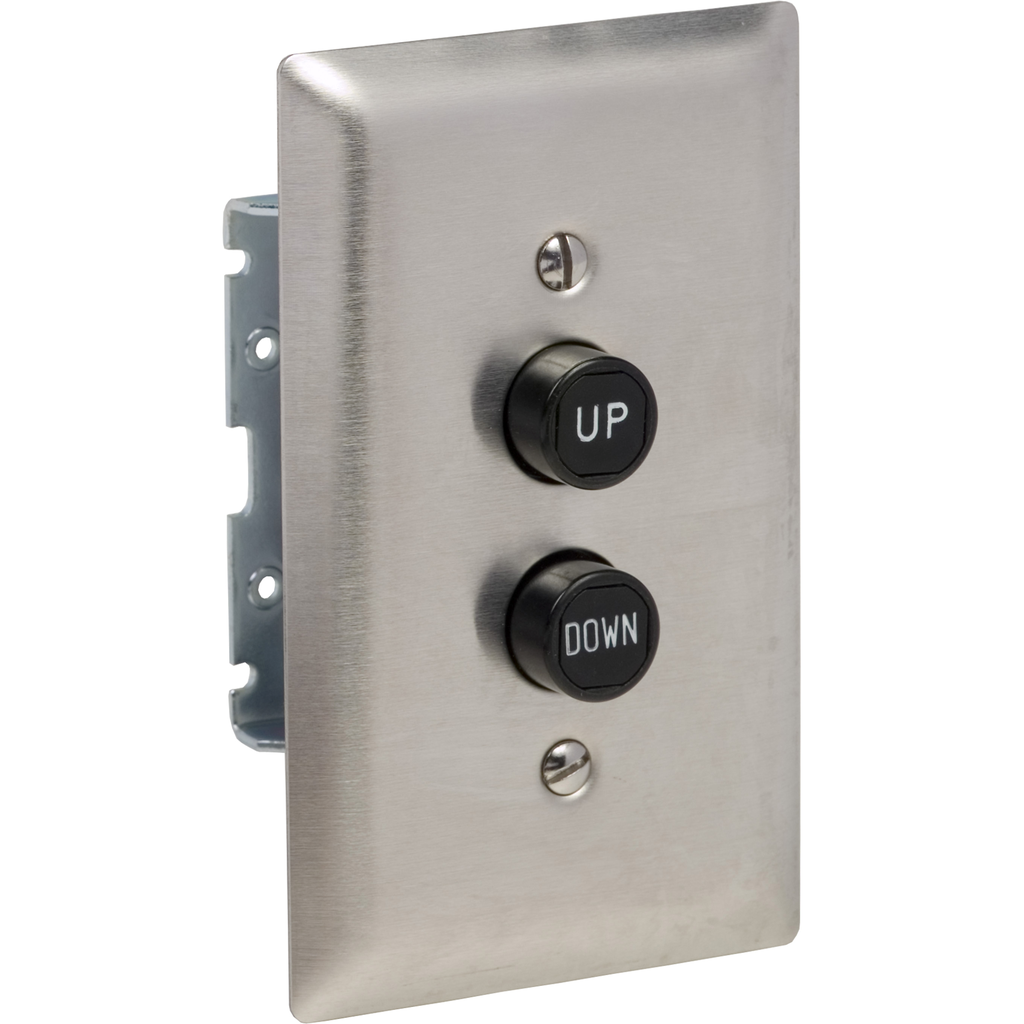

Square D 9001BF208 Control Station 5 Amp 600 Volt Type B

Product Description

The Square D 9001BF208 is a control station designed to operate two functions with an up and down mechanism. This stainless steel plate control station offers reliability and efficiency for various applications. It is suitable for use in environments that require a durable and easy-to-use control solution.

• Two operator functions: Up and Down.
• Rated for five amps and six hundred volts.
• Constructed with a zinc enclosure for durability.

Product Highlights

This control station is engineered for both indoor and outdoor settings, adding versatility to its applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9001BF208
• Type: Complete Control Station
• Voltage: 600 Volt
• Amperage: 5 Amp AC
• Material: Zinc
• Enclosure: NEMA 1
• Mounting Type: Flush
• Certifications: CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
• Operating Temperature: -25 to 70 degrees Celsius
• Storage Temperature: -40 to 70 degrees Celsius
• Warranty Length: 18 months
