Square D 9001BF201 Control Station 5 Amp 600 Volt Type B

Product Description

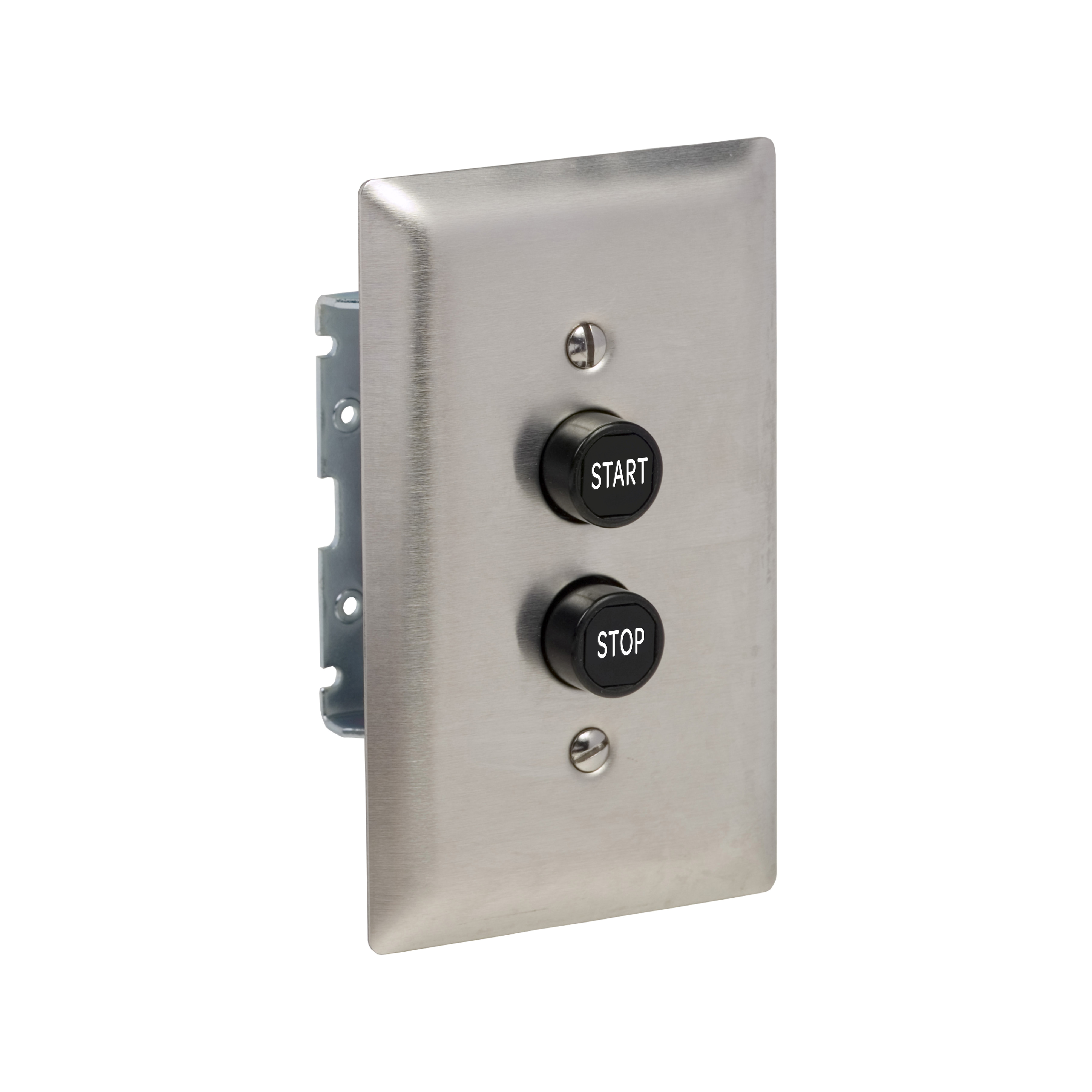

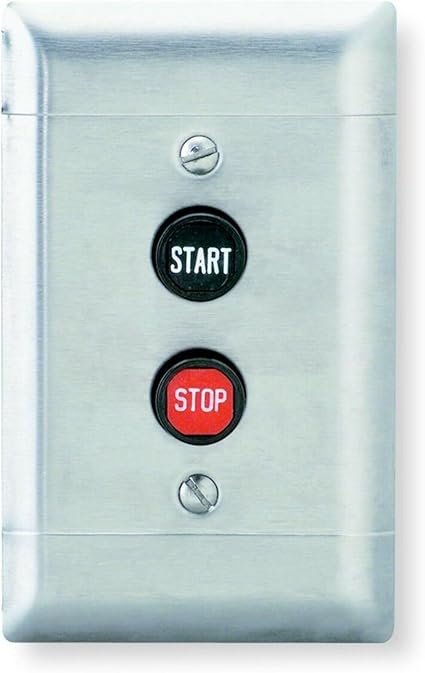

The Square D 9001BF201 is a standard duty control station that comes complete with an enclosure, operators, and contacts. This control station features two round momentary push buttons, including a START push button with a normally open contact and a STOP push button with a normally closed contact. Designed for NEMA 1 general purpose flush mounting, it includes a stainless steel flush plate.

• Complete with enclosure, operators, and contacts
• Features two round momentary push buttons
• NEMA 1 general purpose flush mounting

Product Highlights

The Square D 9001BF201 control station is UL Listed and CSA certified, utilizing classic screw clamp connections for control circuits.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9001BF201
• Country of Origin: Mexico

Technical Specifications

• Type: Complete control station
• Brand: Square D
• Action: 1 NO + 1 NC
• Voltage: 600 Volt
• Amperage: 5 Amp 600 V
• Enclosure: NEMA 1
• Sub Brand: 9001BF
• Mounting Type: Flush
• TC Connection: SCREW CLAMP TERMINAL
• Certifications: CE,CSA LR25490 Class 3211 03,UL Listed File E42259 CCN NKCR
• Country of Origin: Mexico
• Environmental Conditions: Indoor
• Catalog Number: 9001BF201
• Number of Elements: 2
• Contact Rating: 600 VAC/VDC 5 Ampere
• Operator Type: Momentary
• Legend: Start-Stop
• Material: Stainless Steel Flush Plate
• Approval: UL 508, CSA C22.2, CE
• Terminal Type: Screw Clamp
• Size: 30 mm
• IP Rating: 20
• Standards: CE, CSA Certified, UL Listed
• Contact Form: 1NO/1NC
• For Use With: indoor
• Contact Rating [specifications]: 5A @ 600V AC/24V DC
• Type of Operator: Flush Button/Flush Button
• Enclosure Material: Stainless Steel
• Number of Operators: 2
• Terminal Connection: screw clamp terminal
• Mechanical Interlock: No
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Rated Current: 5A
• Voltage Rating: 600 V
