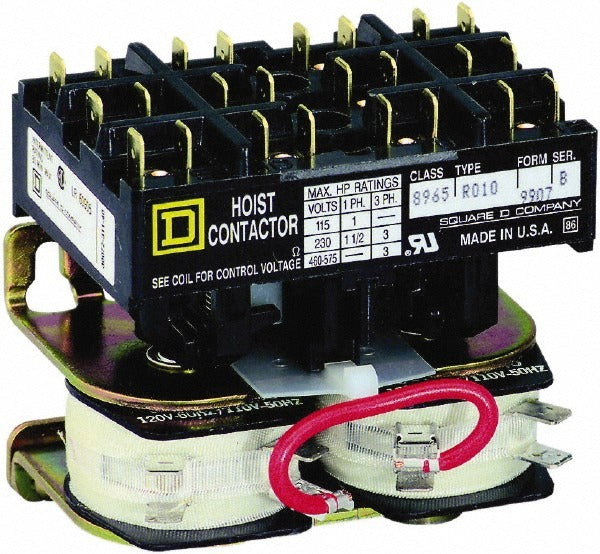

Square D 8965RO10V02 Reversible Dp Contactor 3 Pole 120V

Product Description

The SQUARE D 8965RO10V02 is a 3-pole reversible definite purpose contactor designed for motor control and switching applications in commercial and light industrial systems. It operates on a 110-volt coil at 50 Hz and a 120-volt coil at 60 Hz, making it suitable for both domestic and international equipment. Motor horsepower ratings cover a range of single-phase and three-phase loads: 1 HP at 115 volts AC, 1.5 HP and 3 HP at 230 volts AC, 3 HP at 460 volts AC, and 3 HP at 575 volts AC. The reversible configuration allows forward and reverse motor control without additional external switching components. Licensed electricians and HVAC controls technicians are the primary installers of this device.

Definite purpose contactors like the 8965RO10V02 are commonly used in HVAC compressor circuits, refrigeration equipment, pump motors, and industrial motor starters. The reversible design is particularly suited to applications requiring bidirectional motor rotation, such as conveyor systems, damper actuators, and fan reversals. This contactor is appropriate for both new installations and replacement service in commercial and light industrial environments where 3-pole switching of single-phase or three-phase loads is required.

Key Features

• Reversible 3-pole configuration enables forward and reverse motor control in a single device
• Dual-frequency coil rated at 110 volts AC at 50 Hz and 120 volts AC at 60 Hz
• Horsepower ratings across multiple voltages: 1 HP at 115V, up to 3 HP at 230V, 460V, and 575V
• UL Listed and CSA certified for use in code-compliant installations
• RoHS compliant construction
• Compact footprint: 3.7 inches high, 4.8 inches wide, 6.5 inches in length

Compatibility

Designed as an OEM-style definite purpose contactor replacement for 3-pole reversible motor control applications in HVAC, refrigeration, and light industrial systems operating on 120-volt coil circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lockout the panel or disconnect supplying the circuit before removing or installing the contactor. Verify coil voltage and pole configuration match the existing application before wiring. Ensure the enclosure or panel provides adequate short-circuit protection as required by the equipment manufacturer and local code.
