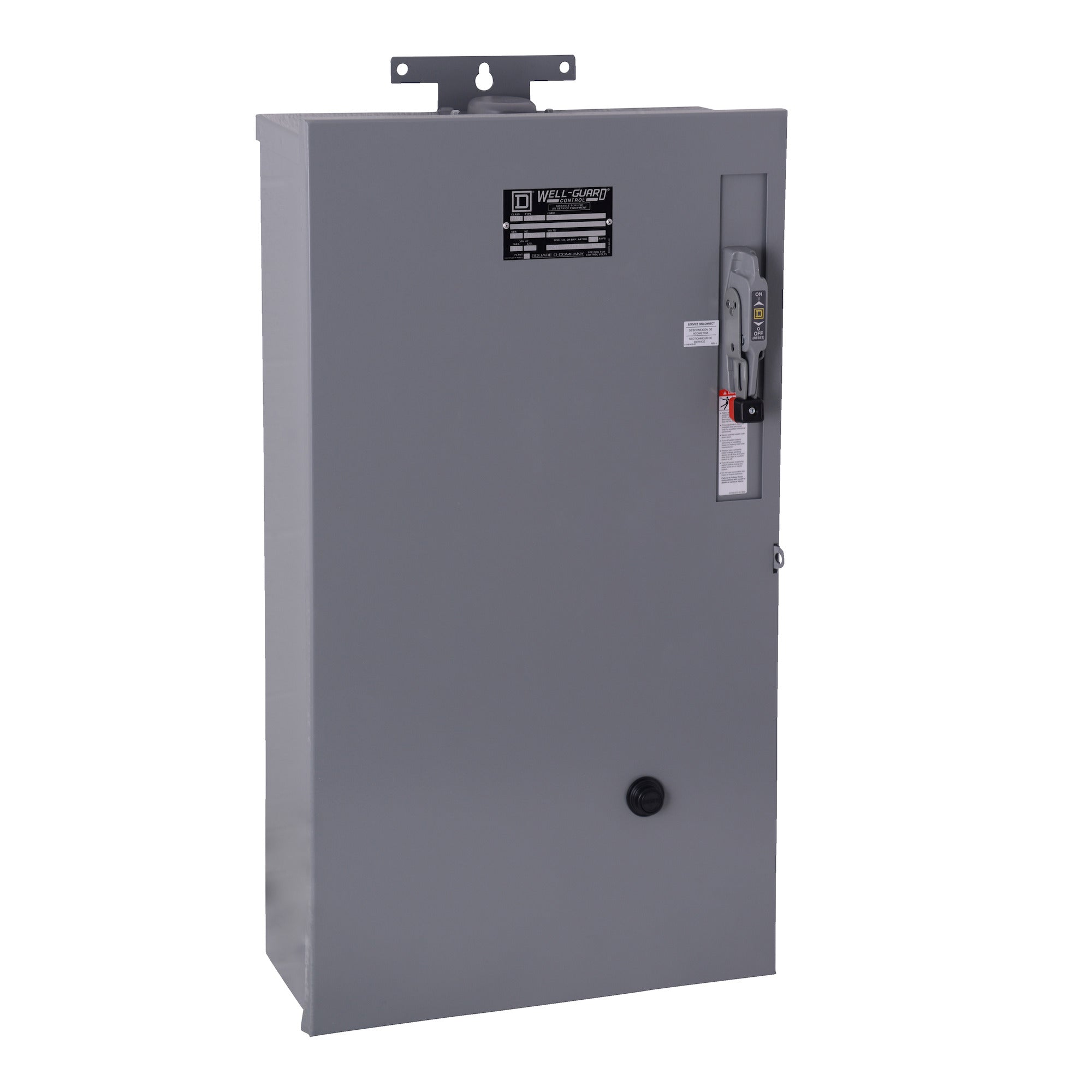

Square D 8940WD3S2V06H30 Pump Panel NEMA Type S 45A 25HP

Product Description

The Square D Pump Panel, part number 8940WD3S2V06H30, is designed for oil field pumping applications. Its construction allows for field installation of additional equipment, making it versatile for various tasks. This panel utilizes Type S non-reversing magnetic starters, ensuring reliable operation for both power and motor management.

• Features a 60A fusible disconnect switch for protection.
• Includes a three-pole NEMA Size 2 starter, rated for 45 amperes.
• Equipped with a Motor Logic overload relay to detect overcurrent conditions.

Product Highlights

This pump panel is suitable for three-phase applications with up to 25 horsepower. The enclosure is built to NEMA 3R standards, ensuring protection from rain and moisture.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8940WD3S2V06H30
• Operating Voltage: 440/480 VAC
• Frequency: 50/60 Hz
• Rated Amperage: 45A
• Maximum Horsepower: 25 HP
• Enclosure Size: 38.50 inches tall, 19.00 inches wide, 9.39 inches deep
• Country of Origin: Mexico
• Warranty Description: 18 months contractual warranty
