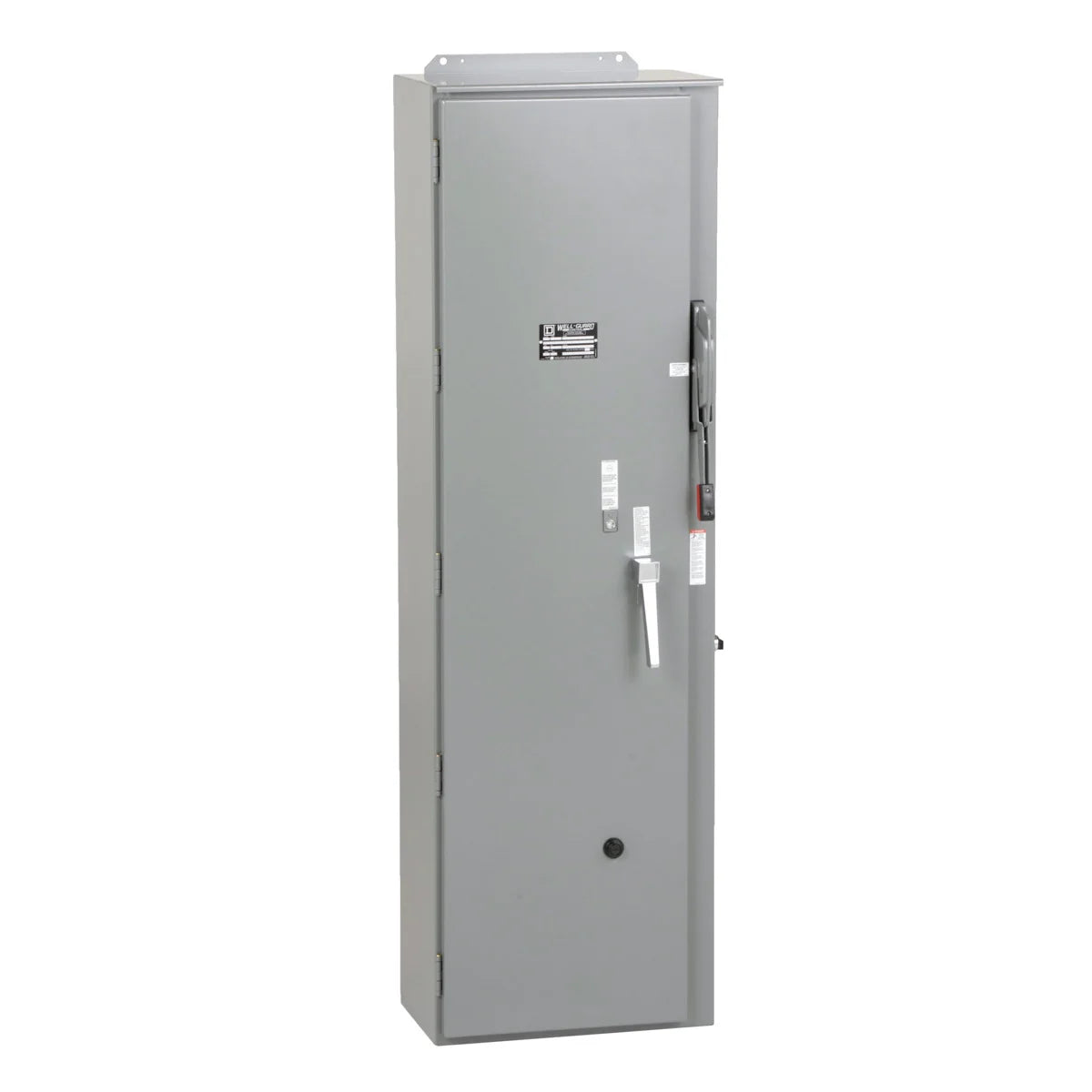

Square D 8940SSG4200 Pump Panel NEMA Type S 270A 10 kA SSCR 200 HP 400A Class H and K fuse clip

Product Description

The Square D 8940SSG4200 Pump Panel is designed for various pumping applications. It features a NEMA Type S non-reversing magnetic starter. This starter is rated for a maximum of two hundred horsepower and has a current rating of two hundred seventy amperes. It includes a four hundred amp fusible disconnect switch suitable for Class H or K fuses. The panel's overload relay detects overcurrent conditions within a range of ninety to two hundred seventy amperes. The pump panel is equipped with a rainproof enclosure rated NEMA 3R, providing protection from environmental conditions. The dimensions of the enclosure are seventy-five point five inches high, twenty-two inches wide, and seventeen point five five inches deep.

• Three pole NEMA Size 5 non-reversing starter.
• Ten kiloamp short circuit current rating per UL508A.
• Includes START push button and HAND/OFF/AUTO selector switch.

Product Highlights

This pump panel is UL listed and CSA certified, making it suitable for service equipment applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8940SSG4200
• Rated Current: 270A
• Short Circuit Current Rating: 10 kA
• Maximum Horsepower: 200 HP
• Operating Voltage: 440/480 VAC
• Enclosure Type: NEMA 3R
• Enclosure Dimensions: 75.5 inches tall, 22 inches wide, 17.55 inches deep
• Country of Origin: Mexico
