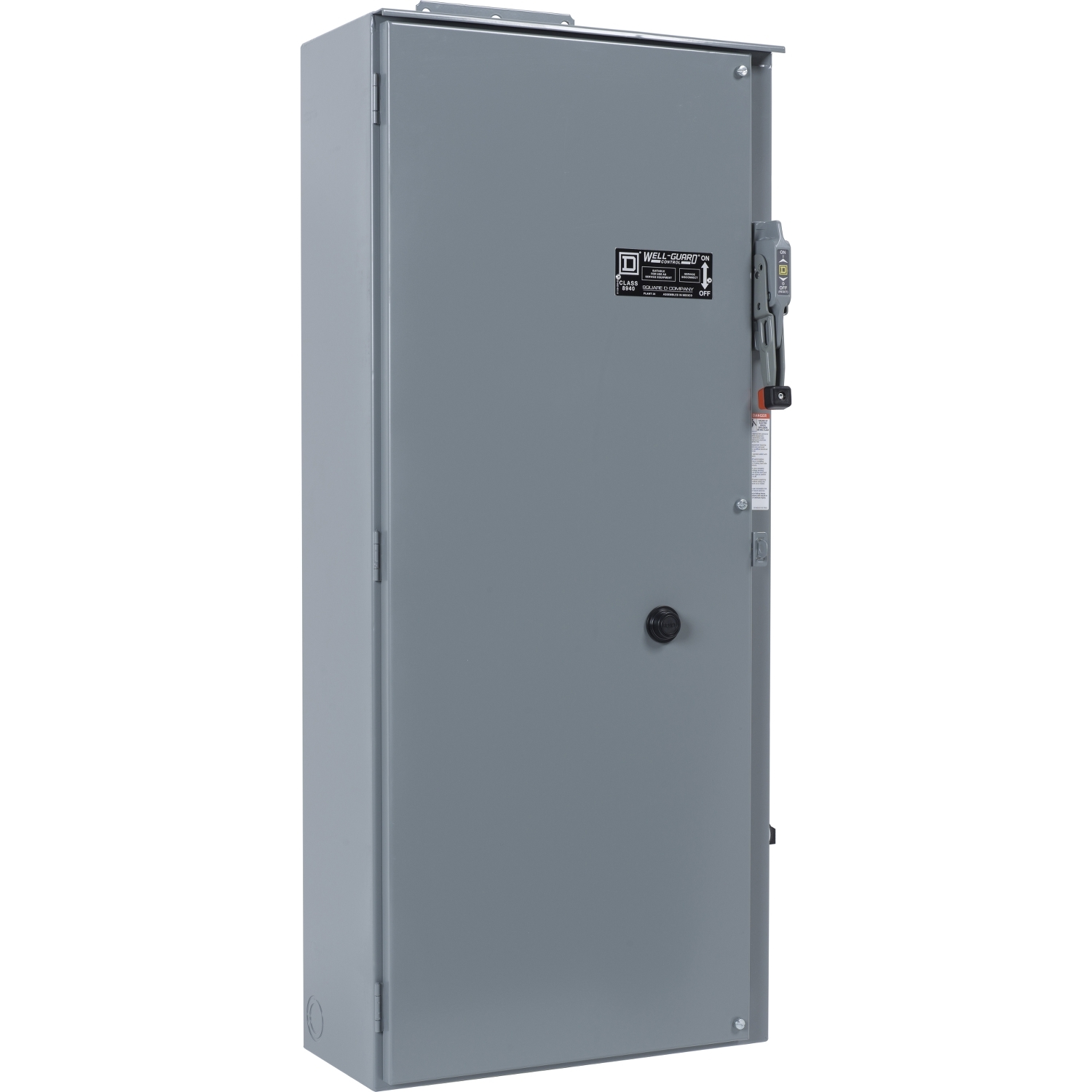

Square D 8940SSF4100 Pump Panel 440/480 VAC 135 Amp 100 Hp 3-Pole NEMA 3R Full Voltage Fusible Switch

Product Description

The Square D 8940SSF4100 Well-Guard pumping plant panel is designed for pumping applications. This panel provides space for field installation of auxiliary equipment and uses Type S non-reversing magnetic starters. It features a 200A fusible disconnect switch and a NEMA Size 4 starter with a 100 HP at 480 VAC three phase rating and a maximum rating of 135 Amperes.

• Equipped with a 200A fusible disconnect switch.
• NEMA 3R rainproof enclosure for indoor/outdoor use.
• Includes START push button and HAND/OFF/AUTO selector switch.

Product Highlights

This Square D pump panel is UL listed, CSA certified, and suitable for use as service equipment. It features a Motor Logic overload relay and a 440/480 VAC 50/60 Hz operating coil.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8940SSF4100
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8940SSF4100
• Type: Class 8940 type SS
• Brand: Square D
• Voltage: 480 VAC
• Amperage: 135 Amp
• Enclosure: NEMA 3R
• Fuse Type: H Or K
• NEMA Size: 4
• Sub Brand: Well-Guard Control
• Reset Type: MOTOR LOGIC SOLID STATE CLASS 10/20
• Applications: PUMPING
• Mounting Type: Surface
• TC Connection: SCREW TERMINAL
• Certifications: UL Listed
• Disconnect Type: Fusible disconnect switch
• Number of Poles: 3 Pole
• Line Rated Current: 135 A
• Environmental Conditions: WEATHERPROOF ENCLOSURE FOR INDOOR/OUTDOOR
• Motor/Line Voltage: 480 VAC at 50/60 Hz
• Power Rating: 60, 75, 100 HP
• Number of Phases: Poly-Phase
• Disconnect Rating: 200 Ampere
• Overloads: Class 10 Ambient Temperature Compensated
• Coil Voltage: 440 V at 50 Hz, 480 V at 60 Hz
• Application: Submersible Pump
• Thermal Overload Type: Motor Logic solid state class 10/20
• Disconnector Device Type: fusible disconnect switch
• Control Type: selector switch HAND-OFF-AUTO) || push-button START)
• Maximum Horse Power Rating: 100-100 hp 480 V AC, 3 phase
• [Uc] Control Circuit Voltage: 480 V AC 60 Hz || 440 V AC 50 Hz
• Permissible Voltage: 600 V AC
• Electrical Connection: screw terminal
• Protection Type: overload || phase loss || phase unbalance
• Control Circuit: common control circuit
• Associated Fuse Rating: 200 A
• Series: SS Series
• Phase: 3
• Motor Power: 100 hp at 480 VAC
